Product Overview

The Induction Cable Loop Box is a carriageway loop box designed for roadside access to underground cables, such as those used for traffic counting, automatic vehicle recognition, or car park access. This octagonal loop box is specifically engineered to positively connect inductive loop tails, installed in the road surface, into a duct at the edge of the carriageway. Manufactured from ductile iron with a one-piece D400 (40T) cover, it features four loop tail entry slots, enabling connection from all directions. It offers a simple, cost-effective solution to traditional installation and maintenance problems associated with inductive loops in the carriageway.

Key Benefits

• Positively connects inductive loop tails into a duct at the carriageway edge.
• Simple, cost-effective solution to traditional installation and maintenance problems.
• Octagonal design for easy installation.

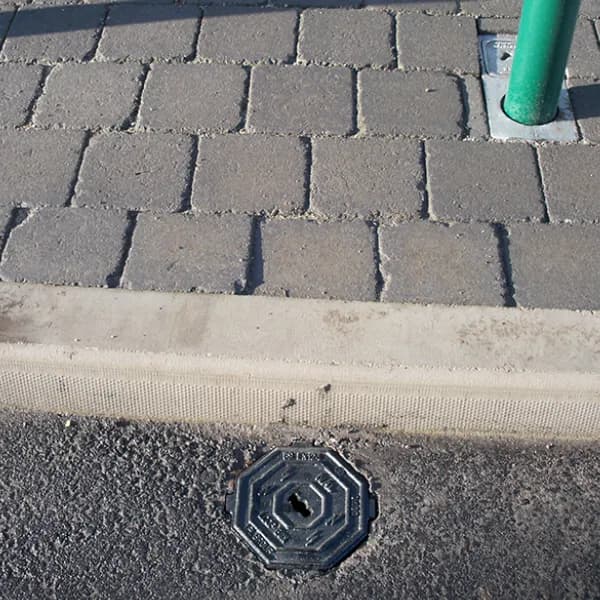

• Features a flush kerbside finish.
• Multi-directional access slots.
• Spare access slots sealed with blanking plates.

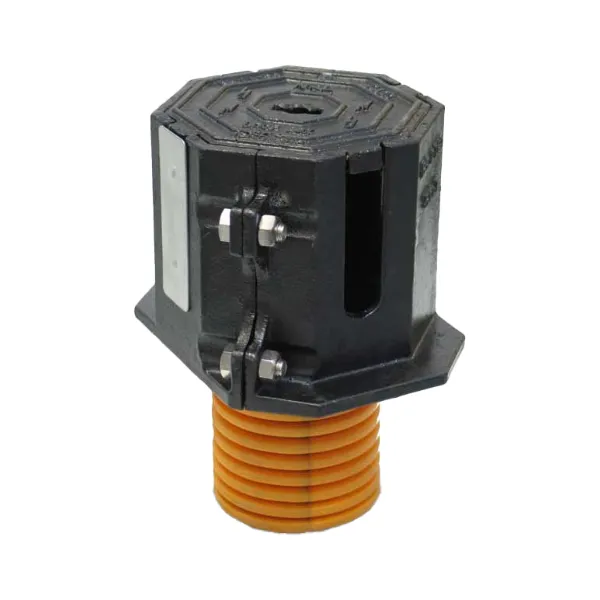

• Base spigot secures 100mm and 50mm duct.

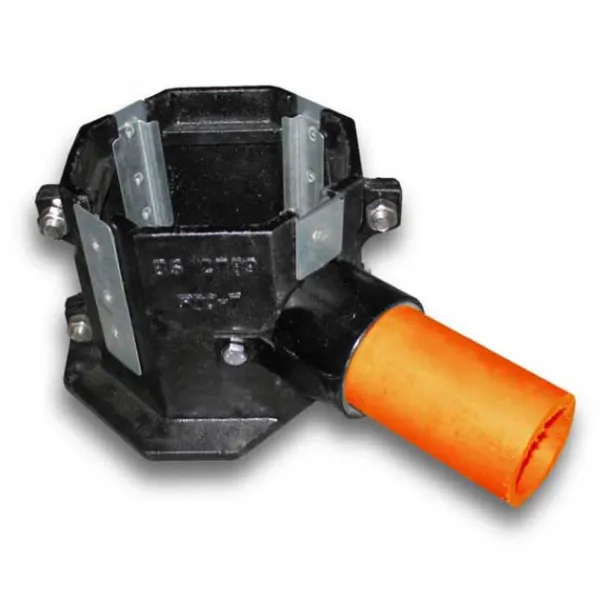

• Side access option available.
• Single cover with non-rock action.
• Open keyhole for easy access.
• Black bitumen coated for durability.
• Customised badging option available.
• Locking lid option available for enhanced security.

Applications

• Carriageways of Roads.
• Pedestrian Streets.
• Hard Shoulders & Parking Areas.
• Traffic counting systems.
• Automatic vehicle recognition systems.
• Car park access control systems.

Features & Construction

• Material: Ductile Iron (Spheroidal Graphite), complying with BS EN 1563:2011/GGG50-Din 1693.
• Cover Material: One piece D400 (40T) cover.
• Slot Cover Material: Glass Fibre Reinforced Polymer.
• Design: Octagonal with 4 loop tail entry slots.

Technical Specifications

Installation & Maintenance

• Designed for positive connection of inductive loop tails into ducts.
• Offers a simple, cost-effective solution for installation.
• Base spigot secures 100mm & 50mm duct.
