Product Overview

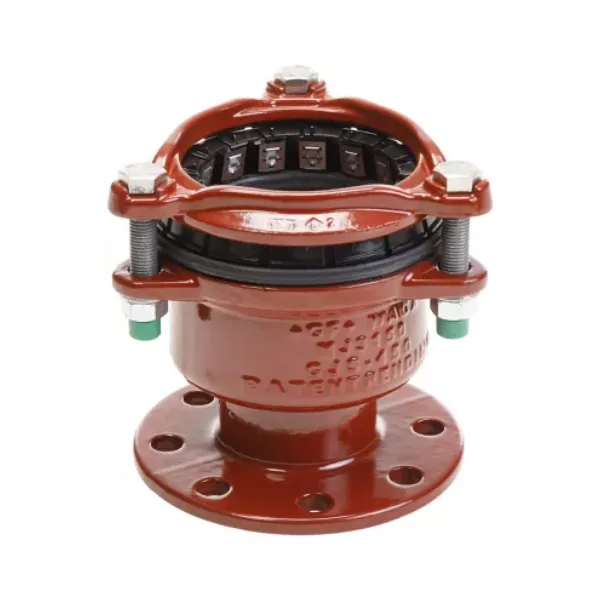

The MULTI/JOINT® 3157 Plus: Wide Range Reduced Flange Adaptor (Restraint) provides a secure, restraint connection between pipes of various nominal diameters and materials, incorporating a flange. This reduced flange adaptor is suitable for all kinds of pipe materials, including ductile iron, PE, PVC, steel, grey cast iron, and asbestos cement. It is suitable for water and gas applications, with NBR gaskets for gas and EPDM for potable water. The body and clamping ring(s) are made of ductile iron (GGG45 EN-GJS-450-10) and coated with RESICOAT epoxy powder for superior corrosion protection. Featuring stainless steel Uni/Fiksers, bolts, nuts, and washers, this adaptor ensures a durable and reliable restraint connection. It allows for an angular deflection of up to 8° per socket during installation, providing flexibility for on-site conditions. Hygiene protection is included for DN50 - DN1025, ensuring the fitting remains clean from production to point of use. For restraint versions on plastic pipes, the use of an insert stiffener is mandatory. It has a minimum insertion depth (ID min) to ensure proper installation.

Key Benefits

• Suitable for all kinds of pipe material in reduced diameter flange connections.
• Suitable for water and gas applications (EPDM for potable water, NBR for water and gas).
• Ductile iron body and clamping rings with RESICOAT epoxy powder coating for superior corrosion protection.
• Angular deflection of max. 8° per socket during installation for flexibility.
• Stainless steel Uni/Fiksers ensure optimal restraint.
• Stainless steel bolts, nuts, and washers (A2 or A4 quality).
• Hygiene protection included for clean installation.

Applications

• Connecting pipe systems of various materials where a reduction in nominal diameter is required, with a flange connection.
• Water transport and distribution.
• Gas distribution.
• Waste water applications.
• Maintenance and repair solutions.
• Industrial applications.

Features & Construction

• Body and clamping ring(s): Ductile iron GGG45, EN-GJS-450-10.
• Coating: RESICOAT epoxy powder coating, type RT 9000 R4 (meets GSK standards and EN 14901; minimum layer thickness 250 µm; min. 3000 V spark test for zero porosity; min. 16 N/mm² adhesion).
• Gasket: NBR (EN 682, -5°C to +50°C) or EPDM (EN 681-1, 0°C to +50°C).
• Uni/Fiksers: Stainless steel A4 quality (AISI 316).
• Bolts: Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316), PTFE coated.
• Nuts: Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316), galvanised and passivated.
• Washers: Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316).

Technical Specifications

MULTI/JOINT® 3157 Plus Wide Range Reduced Flange Adaptors are available for various nominal diameters (DN) with specific pipe range compatibility. They are rated for PN 16 water and MOP 8 bar gas (with specific considerations for DN350 & DN400 on plastic pipes at PN 10 bar water / MOP 5 bar gas).

Suitable for (DN)	Range 1 (mm)	Flange 3 (mm)	Drilling Pattern	Weight (kg) (EPDM/A2 Code)	Water (bar)	Gas (bar)	No. of Bolt Holes (Flange)
50-40	46-71	40	PN16	4.400	16	8	4
65-80	63-90	80	PN16	5.900	16	8	8
100-80	104-132	80	PN16	7.800	16	8	8
125-100	132-155	100	PN16	9.800	16	8	8
125-150	132-155	150	PN16	11.600	16	8	8
150-100	154-192	100	PN16	12.800	16	8	8
200-150	192-232	150	PN16	20.500	16	8	8
225-200	230-268	200	PN10/PN16	27.800	16	8	8
225-200	230-268	250	PN10/PN16	26.500	16	8	12
300-250	315-356	250	PN10/PN16	42.100	16	8	12
350-300	352-393	300	PN10/PN16	48.000	16	8	12
425-400	432-464	400	PN10/PN16	72.100	16	8	16
450-400	450-482	400	PN10/PN16	75.900	10	5	16
475-400	481-513	400	PN10/PN16	81.100	10	5	20
550-500	548-580	500	PN10/PN16	98.700	10	5	20
625-600	630-662	600	PN10/PN16	174.100	10	5	20
675-600	665-697	600	PN10/PN16	189.500	10	5	20
825-800	837-869	800	PN10/PN16	228.200	10	5	24
925-900	939-971	900	PN10/PN16	267.000	10	5	28
1025-1000	1042-1074	1000	PN10/PN16	311.000	10	5	28

Installation & Maintenance

• Read the user manual for detailed installation instructions.
• For restraint versions on plastic pipes, the use of an insert stiffener (see accessories) is mandatory. This also applies specifically to MULTI/JOINT DN625 till DN1000 on plastic pipes.
• Fittings are maintenance-free and have a designed life expectancy of 50 years.
• Supplied with hygiene protection to prevent them from being contaminated or damaged, ensuring clean, safe, and durable work.
