Monicon T80 Datasheet

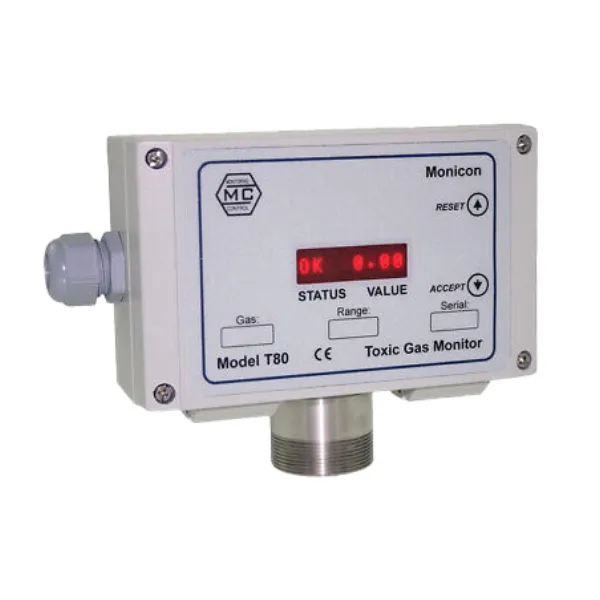

The Monicon T80 is a high-quality, self-contained toxic gas sensor that provides fast, reliable warnings against dangerous concentrations of toxic gases. It operates as a 4-20mA, 3-wire transmitter. The instrument can operate as a standalone unit or in conjunction with a controller or a computer. It incorporates advanced SMT electronics and an amperometric electrochemical sensor based on micro fuel cell technology, designed to be maintenance-free and inherently stable. The sensor element is a small plug-in component and can be easily replaced in minutes when depleted.
The T80 can measure a wide range of toxic gases and oxygen, including:
| Specification | Value |
|---|---|
| Supply Voltage | Nominal 24Vdc (operates from 20Vdc to 35Vdc) |
| Power Consumption | 2W nominal, 2.3W maximum |
| Full-Scale Range | 0-3, 0-5, 0-25, 0-50, 0-100, 0-250 (depends on gas and sensor) |
| Analogue Output Load | 100 Ohms typical, 500 Ohms maximum |
| Operating Temperature | -20 degrees C to +40 degrees C |
| Humidity Range | 10%RH to 90%RH (Non-condensing) |
| Repeatability | +/- 2% |
| Resolution | 1% |
| Recommended Calibration Interval | 6 months (depending on application) |
| Enclosure Size | W: 160mm H: 100mm D: 60mm |
