Product Overview

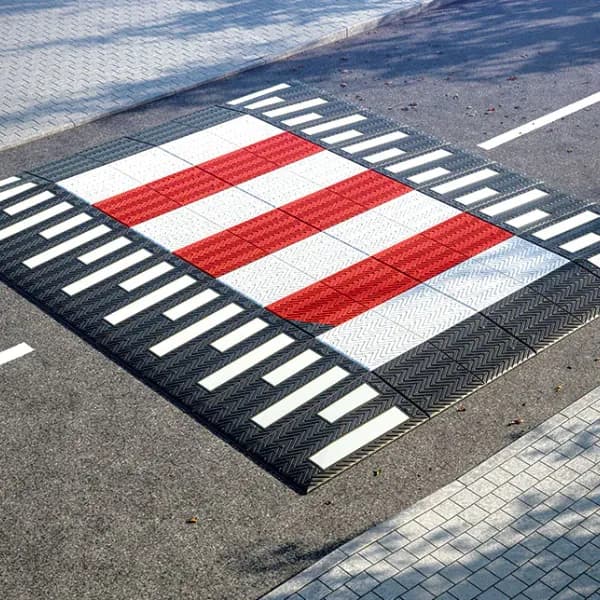

The Modular Speed Ramp: Pedestrian Crossings is a modular speed ramp system designed for slowing down traffic in lane areas and creating raised pedestrian crossings. It has a height of 10 cm. Manufactured from vulcanised rubber (wear layer), SBR rubber granulate, and PUR resin, it incorporates 3M reflective tape for visibility and metal reinforcement for assembly. It is available in black/red/white colours with white/yellow 3M reflective tape.

Key Benefits

• Effective for slowing down traffic.

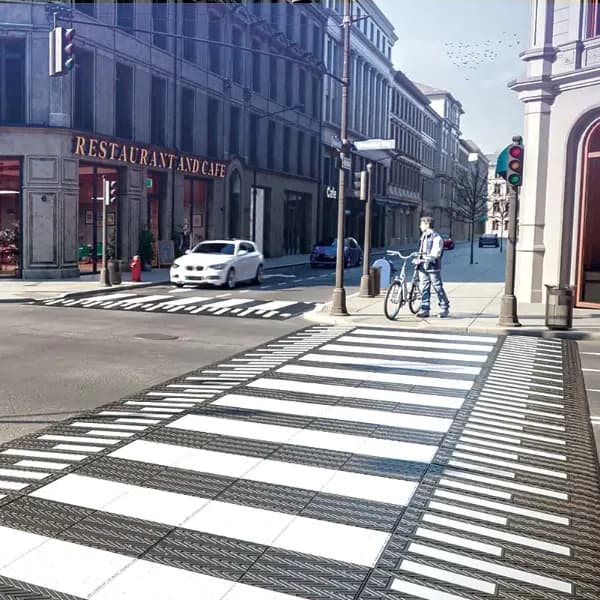

• Creates raised pedestrian crossings for enhanced safety.
• Durable construction from vulcanised and SBR rubber.
• High visibility with 3M reflective tape.
• Modular design for flexible installation.

Features & Construction

• Purpose: Slowing down in the lane area, raised pedestrian crossing.
• Material: Vulcanised rubber (wear layer), SBR rubber granulate, PUR resin, 3M reflective tape, metal reinforcement for assembly.
• Colour: Black/red/white with white/yellow 3M reflective tape.

Technical Specifications

Dimensions and Weight of Modules

Item Name	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
SPS 04	1000	500	0-100	35.5 ±0.5
SPS 44	1000	500	100	53.5 ±2
LPS 04	1000	500	0-100	28.5 ±0.5
LPS 44	1000	500	100	35.5 ±0.5
RPS 04	1000	500	0-100	28.5 ±0.5
RPS 44	1000	500	100	35.5 ±0.5

Technical Parameters

Parameter	Value	Unit	Standard / Method
Tensile strength (wear layer)	≥5.0	MPa	PN-ISO 37
Hardness	≥60	ShA	PN-EN ISO 868:2005
Water absorption	≤2	%	PN-EN ISO 62
Tolerance - length, width, height	±2	%	of nominal
Tolerance - weight	±2	%	of nominal

Installation & Maintenance

• The product should be installed in accordance with the instructions available on the manufacturer's website.
• It is recommended to drive over the speed ramp at an even speed in accordance with road traffic regulations to ensure effective protection of the vehicle against damage and proper function of the product elements.
• Braking on the speed ramp is prohibited.

Packaging & Storage

• Packaging: Products are packed in cardboard boxes on Euro pallets in quantities depending on the order. Each pallet includes a description with the product name, quantity, batch number, and packing date. Other packaging options are available upon request.
• Identification: Product information, including the date of production, is located on the underside of the product. Pallets are identified with the product name, quantity, pallet identification number, packing date, and quality control stamp.
• Storage: Products should be stored on pallets in protective film and shielded from external weather conditions. For longer periods, products may be stored only in closed, ventilated rooms without humidity, after removing the protective film. Maximum storage temperature is 40°C.
• Health, Safety and Fire Conditions: Storage and use of the product must meet all requirements for rubber materials.
