Product Overview

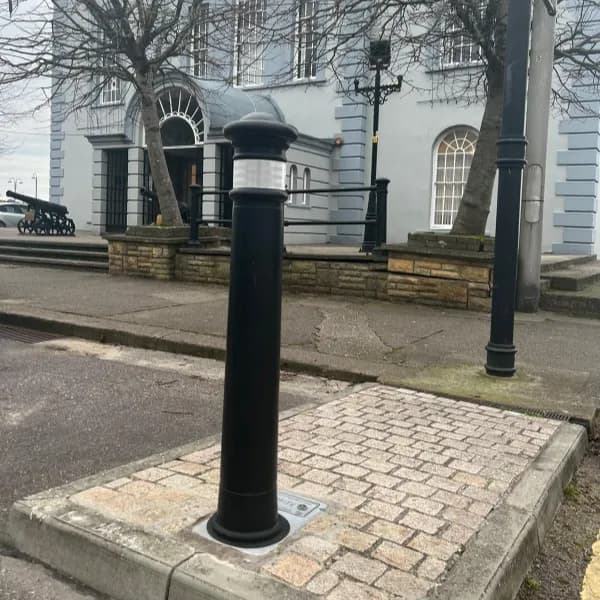

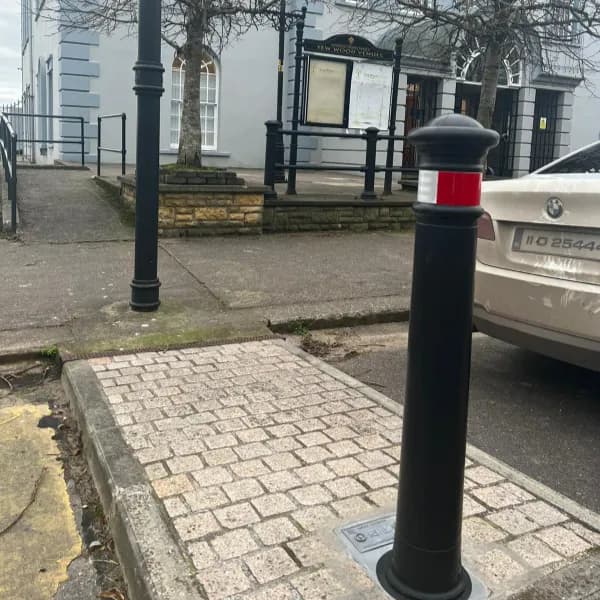

The Manchester (X-Last) is a premier architectural solution that bridges the gap between historic preservation and modern safety requirements. Manufactured by Sabacaucho and available from IPL group, these bollards are constructed from a unique combination of composite polymers with reinforcing nanoparticles. While the design is rooted in the traditional fluted and tiered silhouettes of 19th-century cast iron, the advanced X-Last material allows the bollard to withstand significant impacts and return to its original shape. It is the ideal choice for conservation areas, historic city centres, and public spaces where a traditional visual identity is required alongside modern durability.

Key Benefits

• Traditional Heritage Design: The Manchester 150 features a classic, ornate silhouette based on the historic cast-iron bollards. This makes it perfect for maintaining the character of heritage sites.

• Authentic Visual Presence: The 150mm diameter format provides the substantial, robust appearance of traditional metalwork, serving as an effective traffic deterrent while enhancing the local historic fabric.

• Superior Durability: Engineered with X-Last material, the bollard offers exceptional resistance to impacts and harsh weather. Unlike traditional cast iron, it is 100% rust-proof and will not shatter or crack upon vehicle impact.

• Passive Safety: The unique flexible nature of the X-Last material allows the bollard to bend upon impact, significantly reducing the risk of damage to vehicles and the potential for injury to pedestrians in busy urban environments.

• Installation Adaptability: Compatible with permanent (Root-fixed / Bolt-down) or removable installation using the RS168x300 Retention Socket system—the intelligent foundation for post installation.

• Customisable Appearance: Available in a wide range of RAL colours (Standard Black RAL 9005) and finishes. Optional gold or silver highlighting of the tiered rings can be specified to match traditional city branding.

Applications

• Historic city centres and conservation areas.

• Heritage sites, parks, and traditional public gardens.

• Urban regeneration projects requiring a classic aesthetic.

• High-traffic pedestrian zones where safety and style are equally prioritised.

Technical Specifications

SpecificationValueDiameter150mmHeight (Above Ground)1005mmMaterialX-Last® composite polymer with reinforcing nanoparticlesFinishRAL Coloured (Standard Black or Custom)Installation OptionsRoot-Fixed / Bolt-Down / Removable (RS168x300 Socket)Corrosion Resistance100% Rust-proof and UV Stable

Installation & Maintenance

• Root-Fixed: The bollard is directly embedded into a concrete foundation, providing a permanent and highly secure installation.

• Bolt-Down: The bollard is anchored to a solid surface using bolts, suitable for areas where ground excavation is not feasible.

• Removable: The bollard can be easily removed and reinstalled using the IPL group RS168x300 Retention Socket. This system simplifies maintenance and allows for temporary access when needed.

• Maintenance: Maintenance is exceptionally low compared to cast iron. The material does not require regular repainting to prevent rust. Simple cleaning with a mild detergent is sufficient.

Maintenance is minimal due to the corrosion-resistant and durable nature of the X-Last® material. Regular cleaning with mild detergent and water is typically sufficient.
