Product Overview

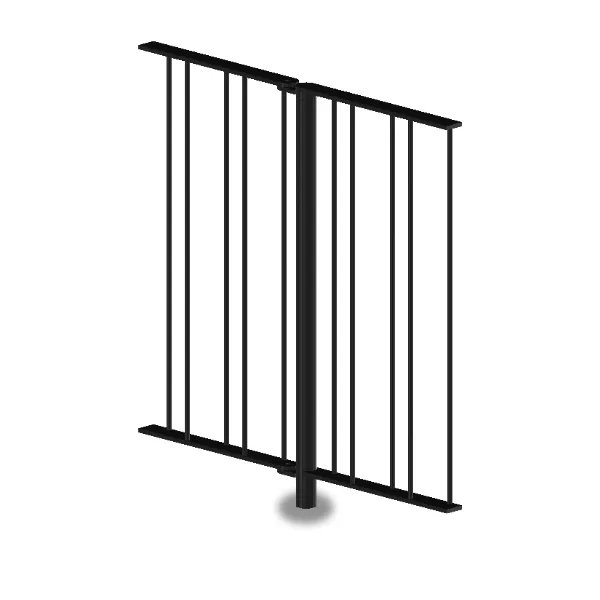

The Lee Railing, from the Rivers street furniture range by IPL group, is a versatile utility railing designed to suit both town and rural landscapes. It is ideal for new developments and upgrades of existing streetscapes, offering adaptability for curves and gradients. Constructed with strong galvanised steel posts and finished with a black polyester powder-coating as standard, this railing is also removable when used with the RS48 socket, facilitating easy maintenance and replacement of damaged panels in high-risk knockdown areas.

Key Benefits

• Versatile Utility: Designed to seamlessly integrate into both urban and rural environments, adapting easily to curves and gradients.
• Durable Construction: Features strong galvanised steel post construction with a black polyester powder-coated finish as standard, ensuring robust protection and longevity.
• Removable Functionality: When used with the RS48 socket, the railing is removable, allowing for easy maintenance and replacement of damaged panels, especially in high-risk knockdown areas.
• High Visibility Options: Available with Vista high visibility panels.
• Certified Design: Panel design and construction can adhere to BS 7818, in accordance with NRA requirements.

Applications

The Lee Railing is suitable for a range of applications, including:

• New developments and upgrades of existing streetscapes.
• Pedestrian guardrail installations, including Vista panel versions.
• Areas requiring adaptable railing solutions for curves and gradients.
• Locations where easy maintenance and panel replacement are beneficial.
• Corners and radius bends, facilitated by versatile Lee railing and RS sockets.

Features & Construction

• Strong galvanised steel post construction.
• Black polyester powder-coated finish as standard.
• Design allows for easy installation on curves and gradients.

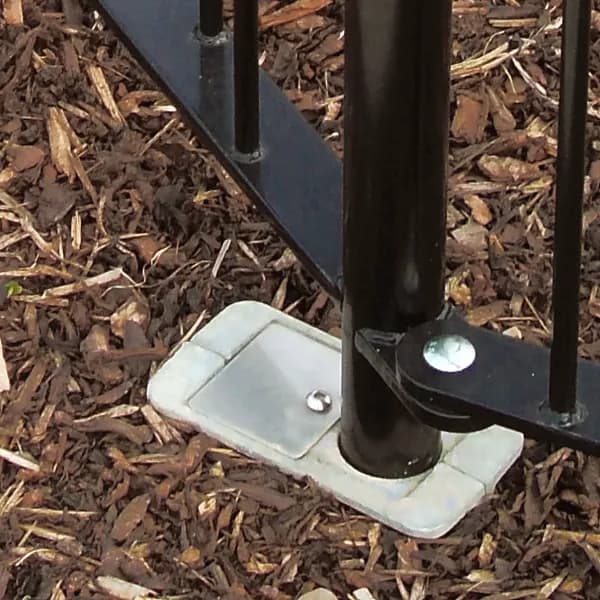

• Removable when used with RS48 socket.
• Standard height (above ground): 1000mm.
• Depth (below ground): 336mm.
• Diameter (core post): Ø48mm.

Customisation Options

• Vista high visibility panels available.
• Panel design and construction to BS 7818 (in accordance with NRA requirements).
• Galvanised version available.
• Customer colour requirements available.
• RS socket (for removable & locking option).
• Panel lengths available: 2M, 1.5M, 1M.

Technical Specifications

Installation & Maintenance

• Installation: Designed for easy installation on curves and gradients. It is removable when used with RS48 socket. Versatile Lee railing and RS sockets facilitate corners and radius bends. Removable pedestrian guardrails may be used for easy maintenance and replacement of damaged panels in high-risk knockdown areas. Specifying the use of RS sockets anticipates expected installation demands, maintenance needs, and lifecycle of the post. Further advice on the RETENTION SYSTEM and Rivers street furniture including specific installation requirements is available from IPL group.
• Maintenance: Strong galvanised steel post construction with black polyester powder-coated finish ensures durability and low maintenance. Periodic inspection and cleaning are recommended.
