LabScat 2 Datasheet

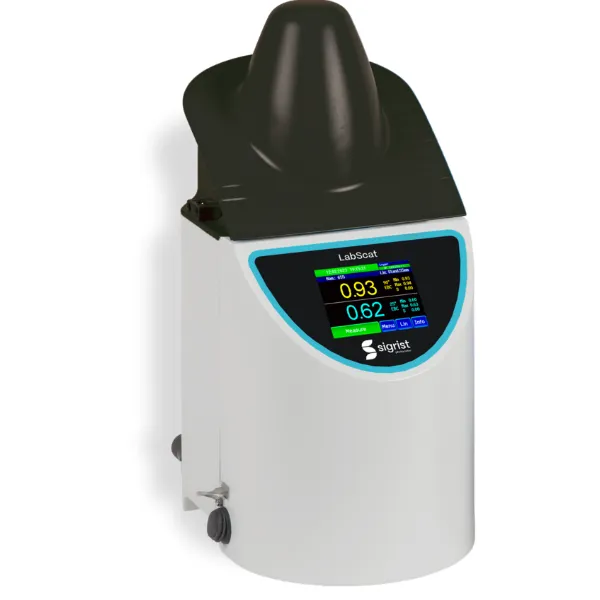

The LabScat is a dual-angle laboratory turbidimeter that monitors turbidity in liquids using a single light source to detect transmitted light and scattered light at 90° and 25°. This allows for colour-compensated dual-angle measurement according to MEBAK and EBC standards, in both bottles and glass cuvettes. Bottle rotation and a water bath minimise disturbing influences, and the quality of the water bath is monitored. Operation is via a colour touchscreen. No tools are required for routine maintenance. Calibration check is simply performed with a calibration unit with a glass reference, which is included in the scope of supply. Sample ID and handling measuring data are performed using digital interfaces (USB, Ethernet with web browser).
| Specification | Value |
|---|---|
| Measuring principle | Scattered light 90°/25° |
| Nominal range | 0 .. 200 (500 with cuvette) EBC 0 .. 13,800 (34,500 with cuvette) ASBC |
| Wavelength | LED 650 nm |
| Resolution | 0.001 EBC / 0.07 ASBC |
| Measuring time | 12 s |
| Water bath temperature | 0 .. 40 °C (0 .. 104 °F) |
| Recalibration | Secondary solid reference |
| Ambient temperature | 0 .. 40 °C (0 .. 104 °F) |
| Ambient humidity | 0 .. 99% RH |
| Operation voltage | 12 VDC with separate power supply |
| Power consumption | 10 W (max.) |
| Data transfer | Web browser, USB |
| Options | Temperature controlled measurement |
| Weight | 5 kg |
| Display | ¼ VGA, 3.5“ |
| Operation | Touchscreen |
| Interfaces | Ethernet, USB |
| Sample identification | Web browser |
| Bottle dimensions | Ø 50 .. 88 mm Height up to 330 mm |
