Product Overview

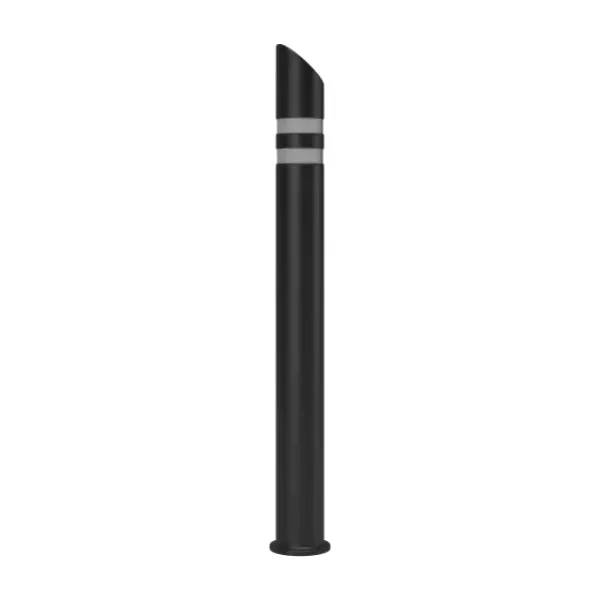

The Kuay 100 Bollard, from the X-Last® range, is a contemporary and highly visible safety bollard, featuring 2 recessed bands of reflective tape and a distinctive slope top design. Manufactured by Sabacaucho and available from IPL group, these bollards are constructed from a blend of composite polymers with reinforcing nanoparticles, providing both strength and flexibility to withstand impacts.

The Kuay 100 is ideal for applications where modern aesthetics and enhanced visibility are important, such as urban areas, pedestrian zones, and traffic management settings.

Key Benefits

• Modern Design: The Kuay 100 bollard features a sleek and contemporary design with a slope top, adding a touch of style to any environment.
• Enhanced Visibility: Two recessed bands of reflective tape provide excellent visibility, especially in low-light conditions, increasing safety for both drivers and pedestrians.
• Superior Durability: Made with X-Last® material, the bollard offers exceptional resistance to impacts, wear and tear, and harsh weather conditions. The 100% rust-proof construction ensures a long service life with minimal maintenance.
• Passive Safety: The flexible nature of the X-Last® material allows the bollard to bend upon impact, reducing the risk of damage to vehicles and injuries to pedestrians.
• Installation Options: Offers both permanent (Root-Fixed / Bolt-Down) and removable installation options using the RS115x300 Retention Socket. This provides flexibility for various site requirements and simplifies maintenance or temporary removal. The Retention System is "the intelligent foundation for post installation".
• Customisable Appearance: Available in a wide range of RAL colors and finishes (metallic, matt, glossy) to suit specific project needs.

Applications

• Urban streetscapes and city centers
• Pedestrian zones and pathways
• Commercial and retail areas
• Traffic management and delineation

Features & Construction

• Constructed from X-Last® composite polymer with reinforcing nanoparticles for optimal flexibility and strength.
• Diameter of 100mm.
• Standard height of 1000mm.

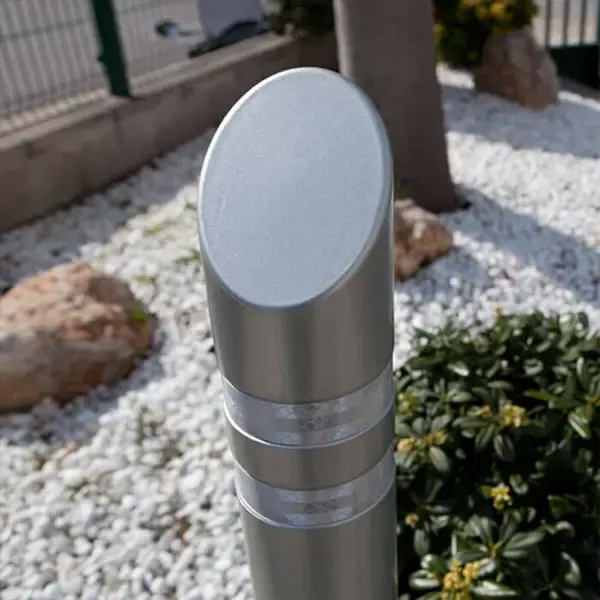

• Slope top design.
• Two recessed bands of reflective tape.
• Available in a wide range of RAL colors and finishes.
• Installation options: Root-Fixed, Bolt-Down, or removable with RS115x300 Retention Socket.

Customisation Options

• Wide range of RAL colors to match specific project requirements.
• Various finishes, including metallic, matt, and glossy.
• Customizable placement and type of reflective banding.

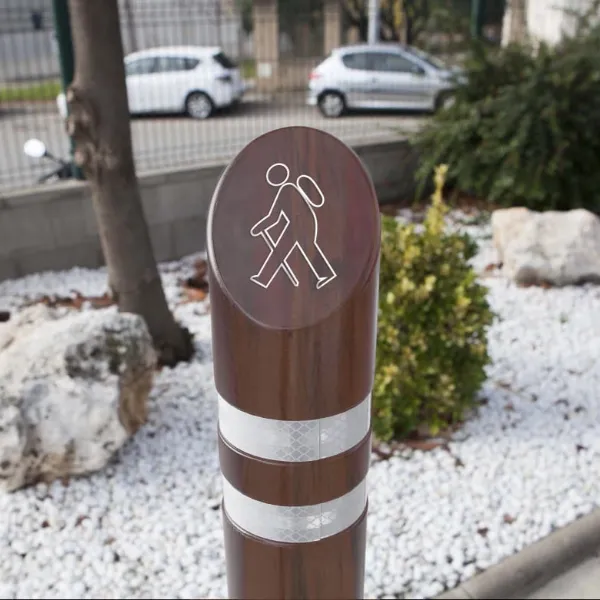

• Possibility of adding a city's coat-of-arms or other custom elements.

Technical Specifications

Specification	Value
Diameter	100mm
Height	1000mm
Material	X-Last® composite polymer
Installation	Root-Fixed / Bolt-Down / Removable with RS115x300 Retention Socket

Installation & Maintenance

• Root-Fixed: The bollard is directly embedded into the ground, providing a permanent and highly secure installation.
• Bolt-Down: The bollard is anchored to a solid surface using bolts or screws, suitable for areas where ground excavation is not feasible.
• Removable: The bollard can be easily removed and reinstalled using the RS115x300 Retention Socket. This system simplifies maintenance and allows for temporary removal when needed.

Maintenance is minimal due to the corrosion-resistant and durable nature of the X-Last® material. Regular cleaning with mild detergent and water is typically sufficient.
