Product Overview

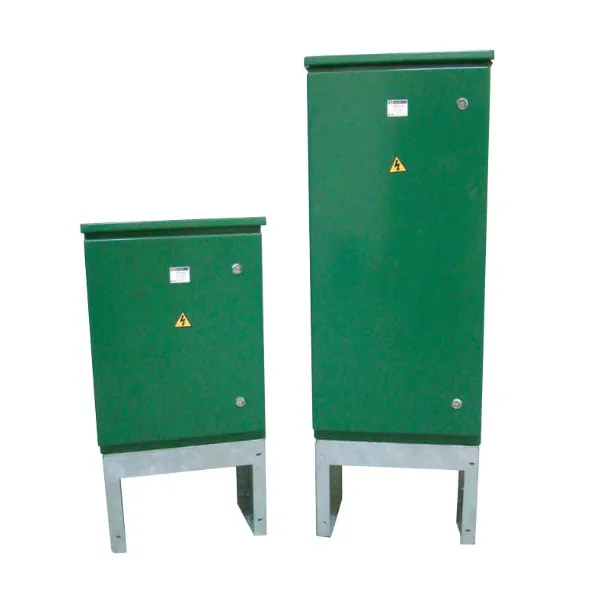

The IP65 Cabinet (Large) is a robust sheet steel cabinet designed for various outdoor applications, particularly suitable for roadside electrical access. Manufactured from 3mm steel (with 5mm available on request), it is hot-dipped galvanised and powder coated green as standard to BS 4800 14C39. The cabinet features two doors fitted with double Tri-Head locks for enhanced security. An 18mm WBP plywood backboard is fitted internally, which is fully removable through the door when required. Recessed 'hidden' vents and hinges contribute to its sleek design and prevent tampering. An earth strap is fitted between the cabinet and door, and door seals are rated to IP65 for environmental protection. All cabinet interiors are built to customer specification, ensuring versatility. The kiosk shell is manufactured from non-combustible materials, and its design includes safety features such as flush-fitting doors and radiused corners.

Key Benefits

• Manufactured from durable 3mm steel (5mm on request).

• Hot-Dipped galvanised for superior corrosion resistance.

• Powder Coated Green as standard to BS 4800 14C39 for aesthetic and protection.

• Cabinet doors fitted with double Tri-Head locks (other locks on request) for security and vandal resistance.

• WBP 18mm plywood backboard fitted, fully removable for flexible internal setup.

• Recessed ‘hidden’ vents and hinges for a clean, secure finish.

• Earth strap fitted to door and frame for safety.

• Door seals rated to IP65 for environmental protection.

• All cabinet interiors built to customer specification.

• Kiosk shell manufactured from non-combustible materials.

• Safety features include flush-fitting doors, radiused corners, and a ventilated cabinet.

• Cabinet is removable from plinth on site.

Applications

• Outdoor enclosures for various electrical or utility equipment.

• Street furniture applications requiring secure and durable cabinets.

• Traffic management systems.

• Telecommunications equipment housing.

Features & Construction

• Shell Material: 3mm steel (optional 5mm).

• Coating: Hot-Dipped galvanised, Powder Coated Green to BS 4800 14C39.

• Locking: Double Tri-Head locks (standard).

• Backboard: WBP 18mm plywood.

• Vents & Hinges: Recessed.

• Seals: IP65 rated door seals.

• Safety: Earth Strap fitted.

Technical Specifications

The IP65 Cabinet (Large) is a standard cabinet size. Insulation is available as an optional extra.

Property Value External Width 1200 mm Height (above ground) 1200 mm External Depth 400 mm Root (below ground) 300 mm Number of Doors 2 No. Backboard (internal fitting size) 1100 x 1100 mm Internal Working Depth 365 mm Insulation Thermal Transmittance rating (Optional) 1.5W/m²K
