Product Overview

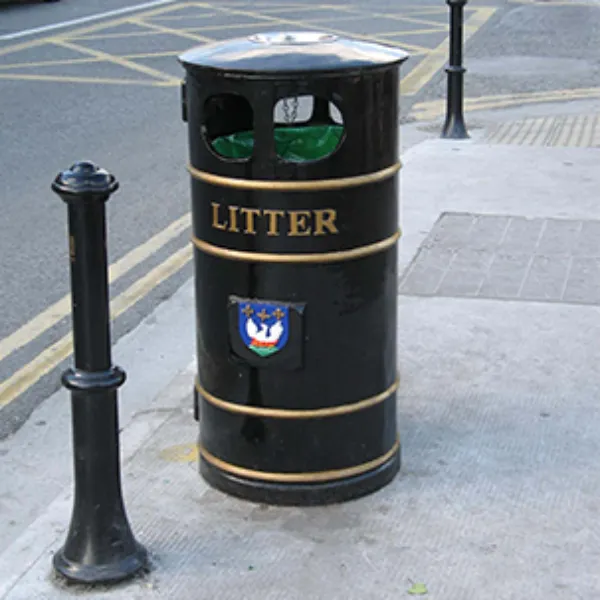

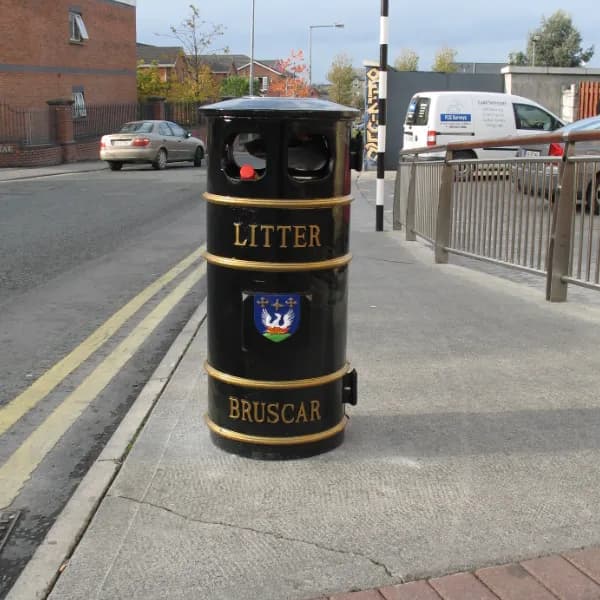

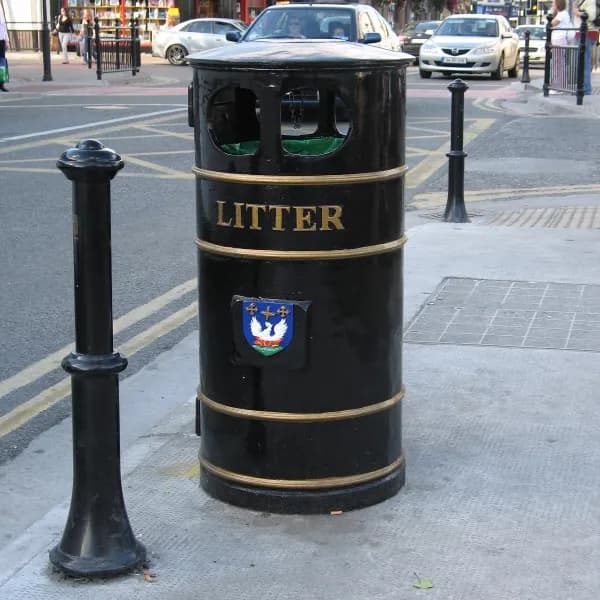

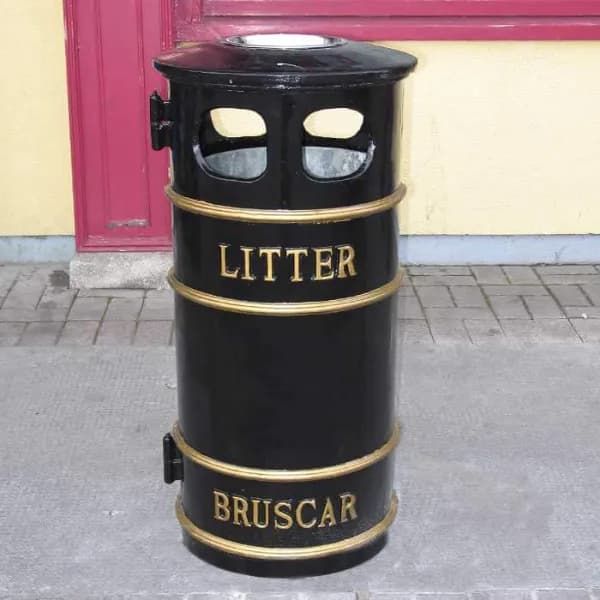

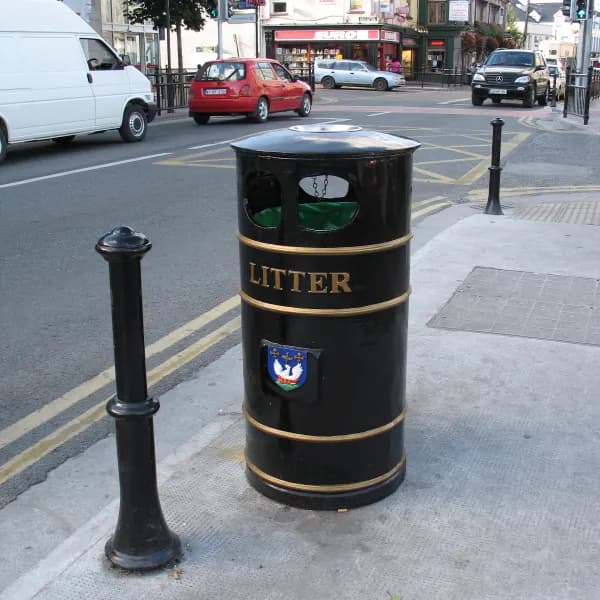

The Heritage Round Cast Bin from IPL group is a classic representation of traditional craftsmanship, constructed using 100% aluminium casting through time-honoured founding techniques. Proudly bearing the 'Guaranteed Irish' mark, it is made of cast aluminium and finished with a black gloss paint. This bin features a side-opening lockable door and comes with a galvanised steel liner with an approximate capacity of 80 litres. Its design is both durable and aesthetically pleasing, making it an ideal choice for public spaces.

Key Benefits

• Durable Construction: Body castings made of cast aluminium (minimum LM4) using traditional founding techniques, ensuring longevity. Raw castings are finished by sanding and linishing for a seamless blend.
• Secure Locking: Features a stainless steel hookbolt locking mechanism, operated by a tapered square key (quarter-turn open/close), with a spigot hook receiver cast into the back half shell.
• Robust Hinges: Equipped with stainless steel ball bearing hinges, attached with M6 stainless steel Torx head screws (8 per hinge), ensuring reliable door operation.
• High Capacity: Designed to accept a liner with an approximate capacity of 80 litres.

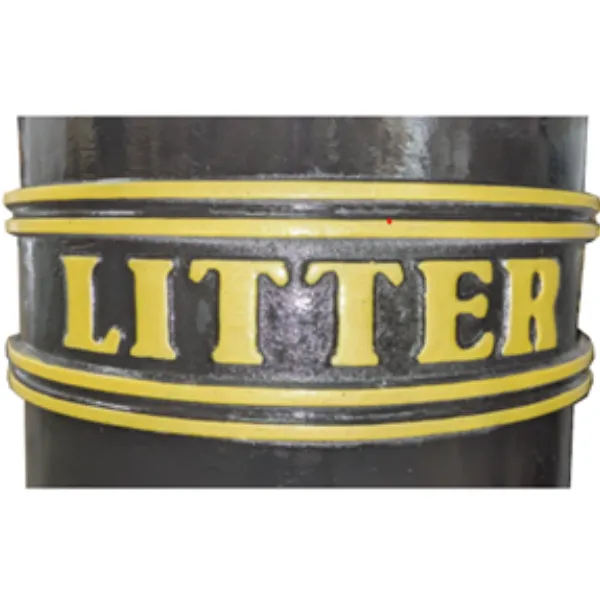

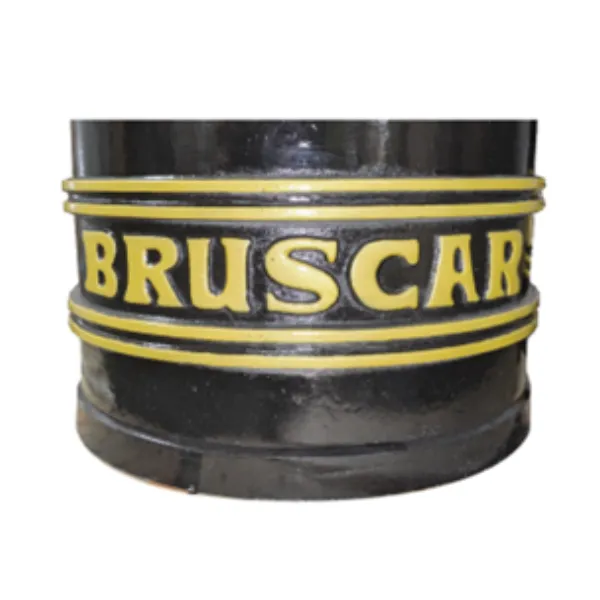

• Clear Graphics: Includes "LITTER" and "BRUSCAR" text cast into the front and back, centred on raised circumferential bands (Lettering height 50mm), enhancing visibility and functionality.
• High-Quality Finish: Features a multi-coat paint system for durability and aesthetic appearance, with a standard gloss black colour and relief graphics in gold.
• Optional Ashtray: An optional stainless-steel ashtray can be integrated into the top casting, featuring a pull lever emptying mechanism for added convenience.

Applications

The Heritage Round Cast Bin is suitable for various public spaces where a classic design, durability, and efficient waste management are essential, including:

• Urban streets and public squares.
• Parks and recreational areas.
• Heritage sites and traditional settings.
• Commercial premises and public facilities.

Features & Construction

• Constructed using 100% aluminium casting through time-honoured founding techniques.
• Body castings made of cast aluminium (minimum LM4).
• Finished by sanding and linishing for a seamless blend.
• Side-opening lockable door.
• Galvanised steel liner.
• Stainless steel hookbolt locking mechanism operated by a tapered square key.
• Spigot hook receiver cast into the back half shell.
• Stainless steel ball bearing hinges, attached with M6 stainless steel Torx head screws (8 per hinge).
• Multi-coat paint system.
• "LITTER" and "BRUSCAR" text cast into the front and back (Lettering height 50mm).

Customisation Options

• Optional stainless-steel ashtray integrated into the top casting, with a pull lever emptying mechanism.
• Custom logo options may be available upon request for branding.
• Other colours may be available upon request for the paint finish.

Technical Specifications

Specification	Details	Source
Materials	Body: Cast Aluminium (min LM4); Hinges: Stainless Steel; Lock: Stainless Steel
Overall Height	960mm
Overall Width (Diameter)	400mm (Diameter)
Aperture Size	105mm (W) x 115mm (H)
Weight	45kg
Capacity	Approx. 80 Litres
Primer	Two coats two-pack polyamide cured epoxy w/ zinc phosphate. Min thickness 50 microns. Applied via air-assisted spray gun.
Top Coat	Two coats Two-pack polyurethane w/ aliphatic isocyanate hardener. Min thickness 40 microns. Applied via air-assisted spray gun.
Standard Colour	Gloss Black. Relief graphics and 8 raised circumferential bands finished in Gold colour. (Other colours may be available upon request)
Fixings (Assembly)	Top/Base to Back Shell: M8x40 countersunk Allen Head stainless steel bolts (3 top, 3 bottom).
Fixings (Hinges)	M6x12mm stainless steel countersunk Torx head screws.
Fixings (Lock)	2no M6x50 stainless steel hex head bolts.

Installation & Maintenance

• Installation: The base includes 3 slotted holes for secure ground fixing using minimum M10x100mm bolts suitable for the surface. Further information and installation requirements are available from IPL group.
• Maintenance: The low maintenance requirements of this product make it ideal for long-term use in public spaces. Regular cleaning involves wiping surfaces with warm water and mild detergent; avoid harsh chemicals, abrasives, or scourers. For stubborn stains, use non-abrasive cleaning products. In case of minor scratches or chips, use touch-up paint matching the original colour (RAL 9005). If the surface is damaged, clean with a wire brush or sandpaper, then paint with an outdoor metal paint (e.g., Uni 2k paint). Regularly inspect for signs of damage or wear, and check for loose components, tightening if necessary. Proper care will extend its lifespan and maintain its aesthetic appeal.
