Product Overview

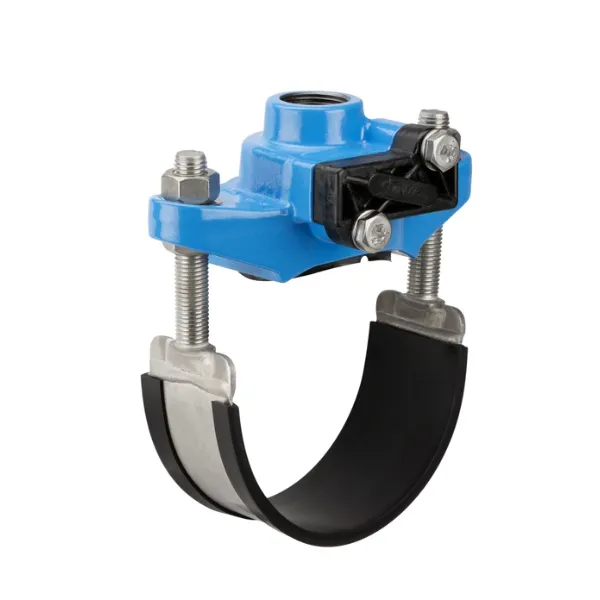

The HAWLE Universal Shut-off Tapping Saddle (No. 3800): Internal Thread is designed for under-pressure drilling on steel, ductile iron, and asbestos cement pipes. This saddle features a solid body and can be pressure tested from both directions. Its compact saddle body and favourable angle of contact ensure optimal force transfer of the strap screw connection. The saddle seal is specifically moulded to fit the pipe diameter and is prefixed in the saddle body for ease of assembly. All internal threads are fitted with a corrosion protection ring to prevent corrosion and incrustations. This saddle is rated at PN 16.

Key Benefits

• Designed for under-pressure drilling.
• Can be pressure tested from both directions.
• Solid body for robust performance.
• Flexible padded wrap-around strap for easy installation.
• Favourable angle of contact ensures optimum force transfer.
• Saddle seal is pre-moulded and prefixed in the saddle body for ease of assembly.
• All internal threads are fitted with a corrosion protection ring to prevent corrosion and incrustations.

Applications

• Under-pressure drilling on steel, ductile iron, and asbestos cement pipes.
• Connecting new outlets with internal threads (ISO 228 G) to existing pipelines.

Features & Construction

• Saddle body: Made of ductile iron, epoxy powder-coated.
• Saddle seal and seal for intermediate shut-off: Made of elastomer.
• Cover: Made of POM, fibre glass reinforced (with rubber seal).
• O-ring carrier: Made of POM.
• Nuts: Made of stainless steel (Molybdenum-coated).
• Ball disc: Made of stainless steel.
• Strap: Made of passivated stainless steel, strength 1.5, with insulating elastomer rubber padding.
• Corrosion protection ring: Made of elastomer.
• Hexagonal screws and washers: Made of stainless steel.

Technical Specifications

The HAWLE Universal Shut-off Tapping Saddle (No. 3800) is available for various pipe nominal diameters (DN) with internal thread outlets according to ISO 228 G, rated at PN 16. Please specify pipe material when ordering.

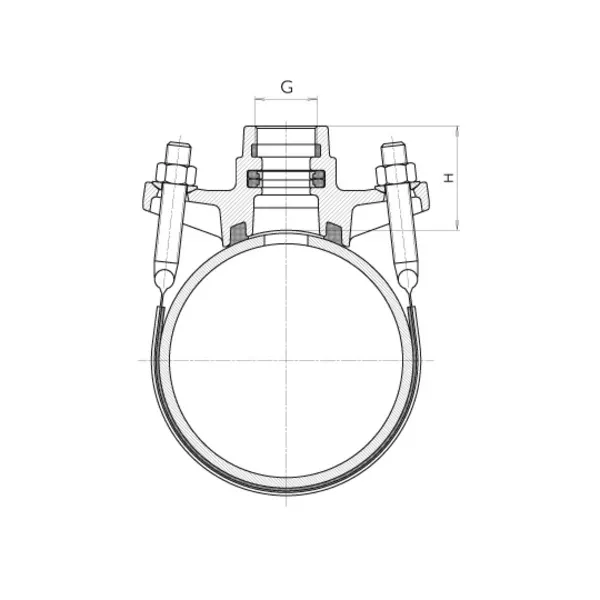

Internal Thread ISO 228 G	DN (mm)	Weight (kg)	H (mm)
1"	50	2.10	67
1"	65	2.10	68
1"	80	2.10	69
1"	100	2.70	69
1"	125	3.10	70
1"	150	3.20	70
1"	200	4.00	80
1"	250	4.60	82
1"	300	4.70	82
1"	350	7.00	78
1"	500	8.00	78
1"	600	8.60	78
1 1/4"	50	2.10	70
1 1/4"	65	2.10	71
1 1/4"	80	2.70	72
1 1/4"	100	2.70	72
1 1/4"	125	2.75	73
1 1/4"	150	3.30	73
1 1/4"	200	4.10	80
1 1/4"	250	4.70	82
1 1/4"	300	4.70	82
1 1/2"	65	3.00	73
1 1/2"	80	3.00	73
1 1/2"	100	3.60	74
1 1/2"	125	3.70	74
1 1/2"	150	4.30	80
1 1/2"	200	4.90	82
1 1/2"	250	4.90	82
1 1/2"	300	7.00	78
1 1/2"	350	7.40	78
2"	65	3.10	78
2"	80	3.10	78
2"	100	3.00	78
2"	125	3.80	78
2"	150	4.60	81
2"	200	5.30	83
2"	250	5.40	83
2"	300	7.70	78
2"	350	8.00	78
2"	400	8.30	78
2"	450	8.60	78
2"	500	9.00	78

Installation & Maintenance

• Saddle seal is prefixed in the saddle body for ease of assembly.
• Optimised force transfer of the strap screw connection.
• Drilling instructions are available on the manufacturer's documentation (page I 3/1).
