Product Overview

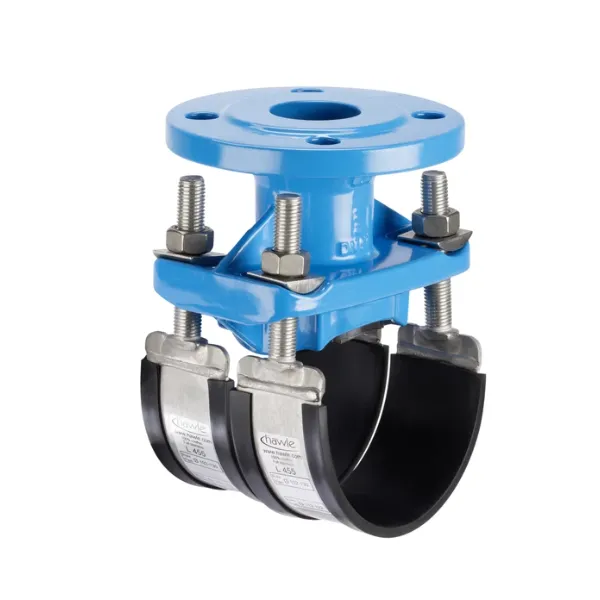

The HAWLE Universal Pipe Saddle (No. 3510): Flange is a versatile pipe saddle designed for use with steel, ductile iron, and asbestos cement pipes. It features a compact saddle body with a flanged outlet, and all models are equipped with a double strap for secure installation. The saddle seal is moulded to precisely fit the pipe diameter and is prefixed in the saddle body for ease of assembly. Its design ensures optimum force transfer of the strap screw connection. Flange drilling complies with EN 1092-2 | PN 16, with options for larger nominal diameters on request. All internal threads (if applicable) are fitted with a corrosion protection ring to prevent corrosion and incrustations.

Key Benefits

• Universal compatibility with steel, ductile iron, and asbestos cement pipes.
• Compact saddle body with a favourable angle of contact.
• Features a double strap for secure installation.
• Optimum force transfer of the strap screw connection.
• Saddle seal is pre-moulded and prefixed in the saddle body for ease of assembly.
• All internal threads (where present) are fitted with a corrosion protection ring to prevent corrosion and incrustations.
• Designed for drilling without pressure.

Applications

• Connecting new flanged outlets to existing steel, ductile iron, and asbestos cement pipes.
• Tapping without pressure.

Features & Construction

• Saddle body: Made of ductile iron, epoxy powder-coated.
• Saddle seal: Made of elastomer, moulded to fit the pipe diameter.
• Nuts: Free-lying, Molybdenum-coated.
• Screws: M 16 stainless steel.
• Strap: Made of passivated stainless steel (strength 1.5), with insulating elastomer rubber padding.
• Corrosion protection ring: Made of elastomer (for internal threads).
• Flanged outlet: Flange drilling to EN 1092-2 | PN 16 (larger DN on request).

Technical Specifications

The HAWLE Universal Pipe Saddle (No. 3510) is available for various pipe nominal diameters (DN) and flange outlet sizes, rated at PN 16. Please specify pipe material when ordering.

Flange Outlet DN (mm)	Pipe DN (mm)	Weight (kg)	H (mm)
40	80	6.60	114
40	100	6.60	114
40	125	6.80	126
40	150	6.90	126
40	200	7.70	145
40	250	7.90	153
40	300	8.00	153
50	80	6.60	114
50	100	6.60	114
50	125	6.80	126
50	150	6.90	126
50	200	7.70	145
50	250	7.90	153
50	300	8.00	153
80	100	9.50	135
80	125	10.30	150
80	150	11.50	147
80	200	11.80	147
80	250	14.50	146
80	300	14.90	146
80	350	15.70	146
80	400	16.50	146
80	450	17.30	146
100	125	11.10	140
100	150	11.80	155
100	200	12.50	158
100	250	12.70	158
100	300	15.80	165
100	350	16.00	165
100	400	16.90	165
100	450	17.60	165
100	500	18.30	165
150	200	24.00	186
150	250	29.40	186
150	300	30.50	186
150	350	31.90	186

Suitable Accessories (Available Separately)

• Drilling machine: No. 5800, No 5805, No 5807.

Installation & Maintenance

• The saddle seal is prefixed in the saddle body for ease of assembly.
• The protective layer on PE pipes should be removed prior to mounting the saddle.
• Designed for drilling without pressure.
