Product Overview

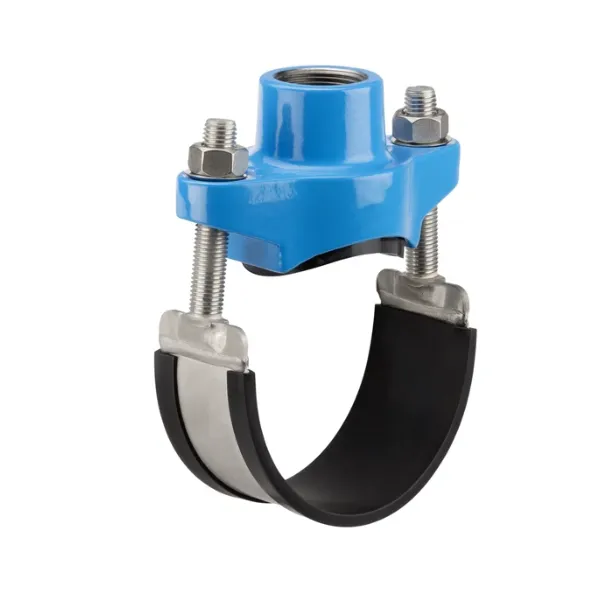

The HAWLE Universal Pipe Saddle (No. 3500): Internal Thread is a versatile pipe saddle designed for use with steel, ductile iron, and asbestos cement pipes. It features a compact saddle body with an internal threaded outlet, ideal for drilling without pressure. All internal threads are fitted with a corrosion protection ring to prevent corrosion and incrustations, ensuring long-term reliability. The saddle seal is moulded to precisely fit the pipe diameter and is prefixed in the saddle body for ease of assembly. A flexible padded wrap-around strap ensures easy installation and optimum force transfer. This saddle is rated at PN 16.

Key Benefits

• Universal compatibility with steel, ductile iron, and asbestos cement pipes.
• Compact saddle body with a favourable angle of contact.
• Flexible padded wrap-around strap for easy installation.
• Optimum force transfer of the strap screw connection.
• Saddle seal is pre-moulded and prefixed in the saddle body for ease of assembly.
• All internal threads are fitted with a corrosion protection ring to prevent corrosion and incrustations.
• Designed for drilling without pressure.

Applications

• Connecting new outlets to existing steel, ductile iron, and asbestos cement pipes.
• Tapping without pressure.

Features & Construction

• Saddle body: Made of ductile iron, epoxy powder-coated.
• Saddle seal: Made of elastomer, moulded to fit the pipe diameter.
• Nuts: Free-lying, Molybdenum-coated (stainless steel spherical bearings).
• Screws: M 16 stainless steel.
• Strap: Made of passivated stainless steel (strength 1.5), with insulating elastomer rubber padding.
• Corrosion protection ring: Made of elastomer, fitted to all internal threads.

Technical Specifications

The HAWLE Universal Pipe Saddle (No. 3500) is available for various pipe nominal diameters (DN) and internal thread outlets, rated at PN 16. Please specify pipe material when ordering.

Internal Thread Outlet	Pipe DN (mm)	Weight (kg)	H (mm)
1"	50	2.30	64
1"	65	2.20	64
1"	80	2.40	61
1"	100	2.50	61
1"	125	3.30	78
1"	150	3.40	78
1"	200	3.90	86
1"	250	4.60	89
1"	300	4.70	89
1 1/4"	50	2.30	64
1 1/4"	65	2.20	64
1 1/4"	80	2.40	61
1 1/4"	100	2.50	61
1 1/4"	125	3.40	78
1 1/4"	150	4.10	78
1 1/4"	200	3.50	86
1 1/4"	250	4.60	89
1 1/4"	300	4.70	89
1 1/2"	50	2.40	57
1 1/2"	65	2.50	57
1 1/2"	80	3.60	78
1 1/2"	100	3.60	86
1 1/2"	125	4.20	78
1 1/2"	150	4.80	89
1 1/2"	200	4.90	89
1 1/2"	250	4.90	89
1 1/2"	300	6.50	74
2"	50	2.45	57
2"	65	2.50	57
2"	80	3.80	78
2"	100	3.90	86
2"	125	4.40	78
2"	150	5.00	89
2"	200	5.10	89
2"	250	7.30	74
2"	300	7.60	74
2"	350	8.00	74
2"	400	8.20	74
2"	450	8.80	74
2 1/2"	125	5.70	56
3"	125	5.40	54
3"	150	5.90	56

Suitable Accessories (Available Separately)

• Drilling machine: No. 5800, No 5805, No 5807.

Installation & Maintenance

• The saddle seal is prefixed in the saddle body for ease of assembly.
• The protective layer on PE pipes should be removed prior to mounting the saddle.
• For drilling without pressure.
