flange connections_datasheet

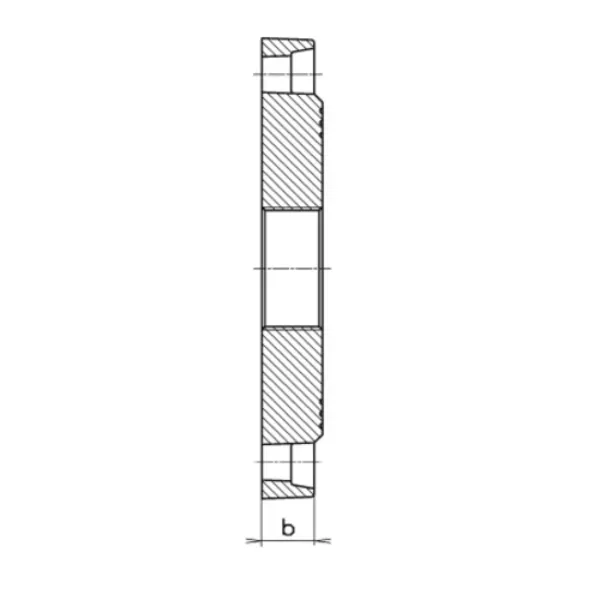

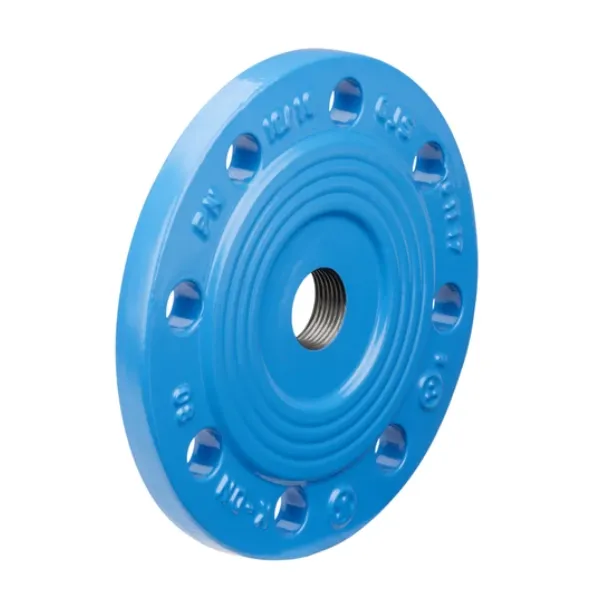

The HAWLE Threaded Flange (No. 8100) is a robust flange designed for secure pipeline connections. It is manufactured from ductile iron and is epoxy powder-coated, ensuring durability and corrosion resistance. This flange features an internal thread conforming to ISO 228. Its sizing and drilling are in accordance with EN 1092-2 standards, typically for PN 10, with PN 16 available for DN 200 to DN 300, and other standards available on request.
The HAWLE Threaded Flange (No. 8100) is available across a range of nominal diameters (DN) and internal thread sizes, with a primary pressure rating of PN 10 (or PN 16 for specified DN).
| DN (mm) | Internal Thread | Weight (kg) |
|---|---|---|
| 40 | 1" | 1.80 |
| 40 | 1 1/4" | 1.70 |
| 50 | 1" | 2.30 |
| 50 | 1 1/4" | 2.20 |
| 50 | 1 1/2" | 2.20 |
| 50 | 2" | 2.10 |
| 60 | 1 1/2" | 3.00 |
| 65 | 1 1/4" | 3.20 |
| 65 | 1 1/2" | 3.10 |
| 65 | 2" | 3.00 |
| 65 | 2 1/2" | 2.70 |
| 80 | 1 1/2" | 3.60 |
| 80 | 2" | 3.40 |
| 80 | 2 1/2" | 3.40 |
| 80 | 3" | 2.90 |
| 100 | 1 1/2" | 4.30 |
| 100 | 2" | 4.20 |
| 100 | 2 1/2" | 3.90 |
| 100 | 3" | 3.70 |
| 100 | 4" | 3.30 |
| 125 | 2" | 5.40 |
| 125 | 2 1/2" | 5.20 |
| 125 | 3" | 5.10 |
| 125 | 4" | 4.70 |
| 150 | 2" | 7.00 |
| 150 | 2 1/2" | 6.70 |
| 150 | 3" | 6.60 |
| 150 | 4" | 6.20 |
| 200 | 2 1/2" | 11.50 |
| 200 | 3" | 11.30 |
| 200 | 4" | 11.00 |
