Product Overview

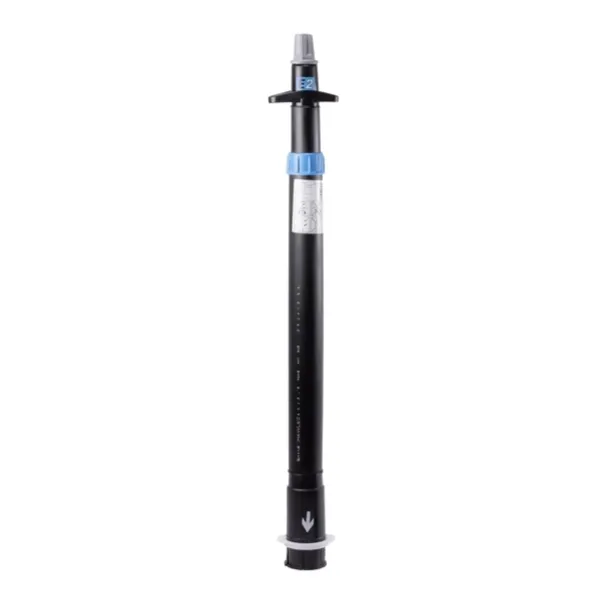

The HAWLE Telescopic Extension Spindle No. 9500E2/E3 is designed for E2 and E3 gate valves and E3 Combi valves with nominal diameters from DN 50 to 600. Its telescopic design allows it to be progressively adjusted to ground level by simply pushing or pulling the inner and outer tubes. This feature protects the pipe and fitting from surface impact, and the spindle is also protected against dirt and surface water.

Key Benefits

• One extension spindle can be used for several dimensions.
• The telescopic design allows for progressive adjustment to ground level.
• It protects the pipe and fitting from surface impact.
• The spindle is protected against dirt and surface water.
• A protective cover with an integrated locking mechanism is included.
• No additional fixing bolt or pin is necessary.

Applications

• Designed for E2 and E3 gate valves and E3 Combi valves from DN 50 to 600.

Features & Construction

• The spindle head is made of galvanized ductile iron.
• The inner and outer protecting tubes are made of PE.
• The hollow top spindle and spindle shaft are made of galvanized steel.
• A restraining collar and clamp ring are made of elastomer.
• The stop disc is made of POM.
• The spindle coupling is made of galvanized ductile iron.

Installation & Maintenance

• The telescopic extension spindle can be progressively adjusted to ground level by pushing or pulling the tube and the spindle shaft.
• The attachment of the extension spindle to the valve spindle takes place with a stainless steel splint.
