Product Overview

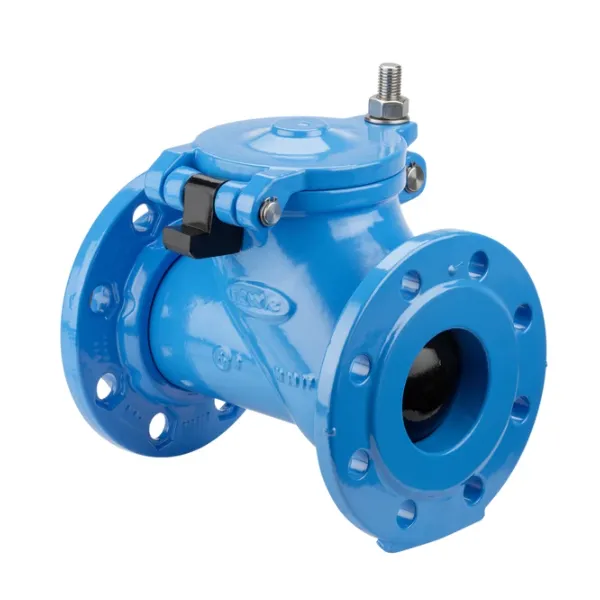

The HAWLE Non Return Valve (Ball Check Valve) reliably prevents medium backflow by automatically closing. The disc opens automatically when the medium flows in the direction indicated by the arrow on the valve body. This range includes models No. 9830 and No. 9831, both designed for PN 16 pressure rating (PN 25 on request). The face-to-face dimensions comply with EN 558-1 GR 48 (DIN 3202 T1 - F6). Flanges are to EN 1092-2 (DIN 28605), drilled to DIN 2501-PN 10 (standard), with PN 16 for DN 200mm and above available on request.

Key Benefits

• Reliable prevention of medium backflow by automatic mechanical closing.
• Disc opens automatically with forward medium flow.
• Fully corrosion free design.
• Optimised velocity.
• Simple maintenance.
• Reduced weight (No. 9831).
• Simple cleaning (No. 9831).

Applications

• Installation in horizontal pipe lines.
• Possible installation in sloping and vertical pipe lines if medium flow is upwards.

Features & Construction

• General: All models have a disc that opens and closes automatically based on flow direction. Axle of the disc shaft must be fully horizontal during installation.
• No. 9831 (Standard version, without lever and counterweight):
  • Body: Ductile iron GJS 400/500, epoxy-powder coated.
  • Disc/disc lever: Elastomer/polyamide (suitable for potable water).
  • Bolts, nuts: Stainless steel A2.
  • Disc gasket: Elastomer (suitable for potable water).
  • Shaft: Polyamide.
  • Gaskets: Elastomer (suitable for potable water).
  • Opening pressure: min. 0.03 bar.
  • Closing pressure: min. 0.5 bar (tight).
• No. 9830 (Version with lever and counterweight, on request):
  • Body: Grey iron, epoxy powder coated.
  • Disc gasket: Klingerit.
  • Other materials generally similar to 9831 where not specified differently.
  • Opening pressure: min. 0.03 bar.
  • Closing pressure: min. 0.1 bar (tight).

Technical Specifications

HAWLE Non Return Valves are available in various nominal diameters (DN) with a standard pressure rating of PN 16 (PN 25 on request). Flanges comply with EN 1092-2, drilled to DIN 2501-PN 10 (standard), with PN 16 for DN 200mm and above available upon request.

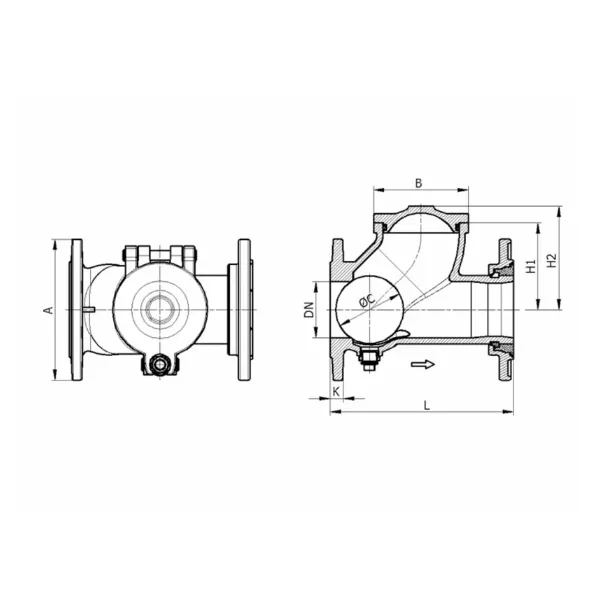

DN (mm)	PN	L (mm)	H (mm)	D (mm)	Weight (kg)	Kv (m³/h)
40	16	180	119	150	9.0	60
50	16	200	77	165	9.5	170
65	16	240	141	185	15.0	163
80	16	260	95	200	14.5	366
100	16	300	113	220	22.5	698
125	16	350	199	250	46.0	588
150	16	400	155	285	45.0	1489
200	10/16	500	187	340	82.0	1388
250	10/16	600	337	405	180.0	—
300	10/16	700	374	460	270.0	—

Installation & Maintenance

• In general, Non Return Valves are designed to be installed in horizontal pipe lines.
• Installation in sloping and vertical pipe lines is possible if the flow of the medium is upwards.
• Direction of flow must align with the arrow indicated on the valve body.
• Axle of the disc shaft has to be fully horizontal.
