Hawle Knife Gate Valves_datasheet

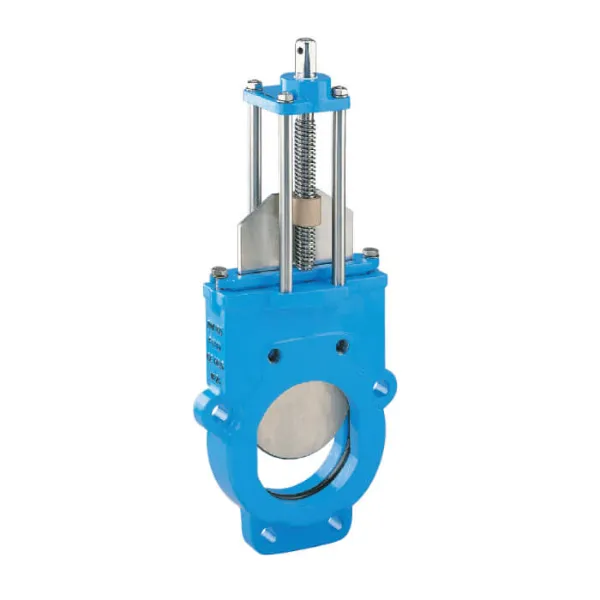

The Hawle Knife Gate Valve 3600/3600EL is a resilient seated gate valve designed for a multitude of applications, including sewage treatment plants, the paper industry, mining, chemical, and animal feed industries, as well as for low viscosity fluids and dry products. It is available with PN 6 or PN 10 pressure ratings and covers nominal diameters from DN 50 to DN 400. High corrosion resistance is ensured by the use of high-grade stainless steel for the knife and spindle, complemented by an epoxy powder coating for the grey cast iron body. The Knife Gate Valve can be mounted either between two flanges in a pipeline or with an opposing flange at the end of a pipeline. Its bore is clear and unobstructed. The valve can be operated with a handwheel, a key, an extension spindle, or by an electrically powered actuator, with specific requirements to be specified upon order.
| Model | Version | PN | DN Range | Face-to-Face Dimension |
|---|---|---|---|---|
| 3600 | With non-rising spindle | 10 | 50 - 400 | EN 558-1 GR 20 |
| 3600EL | With non-rising spindle and adaptor for connecting electric actuator | 10 | 50 - 400 |
Note: Weights and other dimensions vary significantly by DN and version. Please refer to the full technical documentation for precise specifications.
| DN (mm) | Working Pressure (PN) | Weight (kg) (No. 3600) | Weight (kg) (No. 3600EL) |
|---|---|---|---|
| 50 | 10 | 6.3 | 13.0 |
| 65 | 10 | 7.0 | 16.0 |
| 80 | 10 | 11.0 | 19.5 |
| 100 | 10 | 14.0 | 24.5 |
| 125 | 10 | 17.0 | 36.0 |
| 150 | 10 | 22.0 | 73.0 |
| 200 | 10 | 33.0 | 76.0 |
| 250 | 6 | 73.0 | 102.0 |
| 300 | 6 | 99.0 | 144.0 |
| 350 | 6 | 140.0 | 184.0 |
| 400 | 6 | 180.0 | — |
