Technical documents and specifications for this product.
handwheel_7800_datasheet

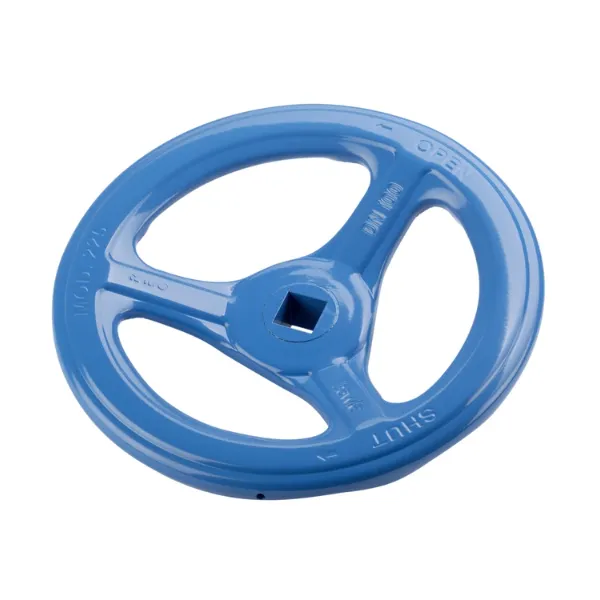

The HAWLE Handwheel (No. 7800) is designed for use with service valves, gate valves, and combi valves. For most sizes, it is made of durable ductile iron and is epoxy powder coated. For DN 250-350, it is made of steel and epoxy powder coated, while DN 400 models are made of grey ductile iron. This robust construction ensures long-lasting performance and reliable operation for various valve types.

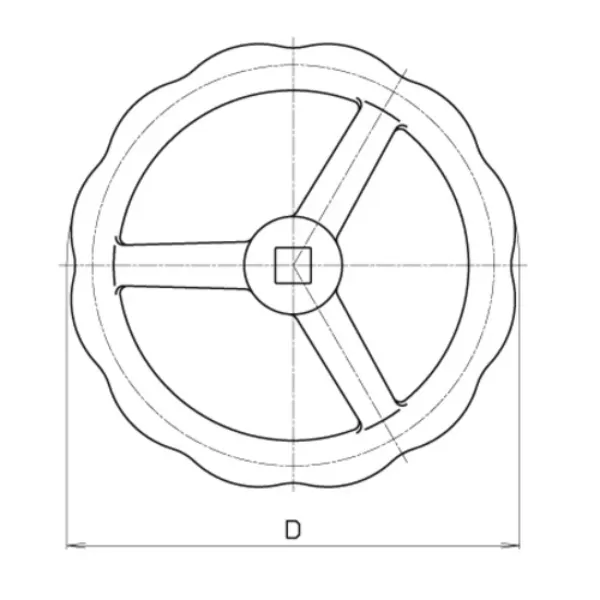

The HAWLE Handwheel (No. 7800) is suitable for a wide range of valve nominal diameters (DN), with varying dimensions and weights.
| DN (Valve) | D (mm) | VK Slider Spindle (mm) | Weight (kg) |
|---|---|---|---|
| 3/4"-2" | 140 | 10.3 | 0.60 |
| 50 | 160 | 14.8 | 0.69 |
| 65 | 190 | 16.3 | 0.90 |
| 65-80 | 190 | 17.3 | 0.95 |
| 100 | 240 | 19.3 | 1.50 |
| 125-150 | 320 | 19.3 | 2.30 |
| 200 | 360 | 24.3 | 2.80 |
| 250-350 | 486 | 27.3 | 4.80 |
| 400 | 600 | 32.3 | 21.00 |
| 500-600 | 800 | 36.3 | 20.00 |
