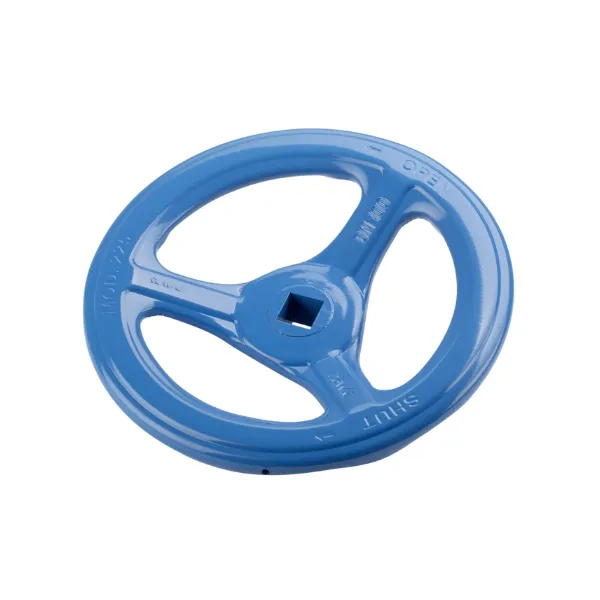

The Handwheel No. 7800 is an accessory designed for use with service, gate, and combi valves. It is made of ductile iron with an epoxy powder coating. For larger valves, specific materials are used: DN 250-350 are made of steel with an epoxy powder coating, while the DN 400 model is made of grey ductile iron.
Durable construction with epoxy powder coated materials.
Suitable for a wide range of valve sizes, from DN 20 up to DN 600.
For service valves, gate valves, and combi valves.
The standard handwheel is made of ductile iron, epoxy powder coated.
Handwheels for DN 250-350 are made of steel, epoxy powder coated.
The DN 400 handwheel is made of grey ductile iron.
A handwheel made of steel for 2" up to DN 200 is available on request.
| DN | D (mm) | VK slider spindle | Weight (kg) |
|---|---|---|---|
| ¾"-2" | 140 | 10,3 | 0.60 |
| 50 | 160 | 14,8 | 0.69 |
| 65 | 190 | 16,3 | 0.90 |
| 65-80 | 190 | 17.3 | 0.95 |
| 100 | 240 | 19,3 | 1.50 |
| 125-150 | 320 | 19,3 | 2.30 |
| 200 | 360 | 24,3 | 2.80 |
| 250-350 | 486 | 27,3 | 4.80 |
| 400 | 600 | 32,3 | 21.00 |
| 500-600 | 800 | 36,3 | 20.00 |
