Product Overview

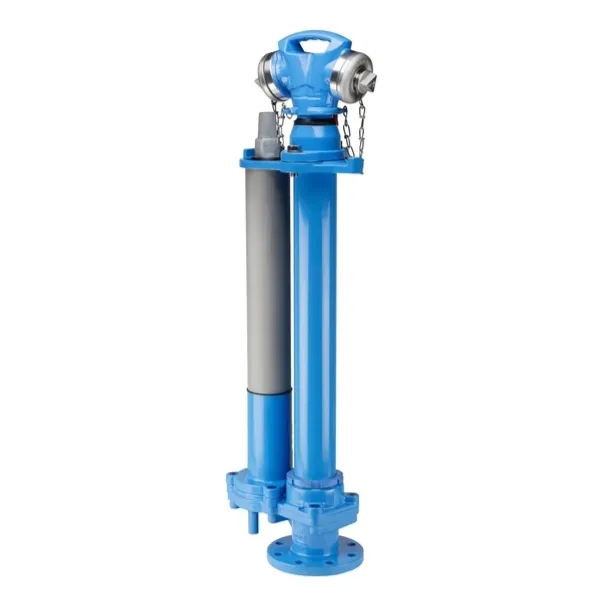

The HAWLE Freeflow telescopic underground fire hydrant No. 5058 is a below-ground hydrant with a flange connection (DN 80). It features an integrated telescopic standpipe and is designed for minimal torque operation. The hydrant is safe against dirt, has heavy corrosion protection from an epoxy coating and non-corroding materials, and is maintenance-free. The valve's plug disk shut-off has fixed stops, and its vulcanised sealing profile ensures a completely free passage.

Key Benefits

• Integrated telescopic standpipe.
• Minimal torque is required for operation.
• The design is safe against dirt and not sensitive to it.
• Heavy corrosion protection is provided by an epoxy coating and non-corroding materials.
• The hydrant is maintenance-free.
• A plug disk shut-off with fixed stops ensures a completely free passage.

Features & Construction

• Connection: Flange connection DN 80.
• Shut-off: Plug disk shut-off with fixed stops.
• Head: Encapsulated hydrant head.
• Materials: Heavy corrosion protection by epoxy coating and non-corroding materials.

Technical Specifications

• Working Pressure: PN 16.
• Flange: Sized and drilled according to EN 1092-2 | PN 16.
• Pipe Cover: Every pipe covering from 1 to 3 metres is possible.
• Connection: A connecting coupling according to other standards is possible on request.

Pipe cover	A (mm)	B (mm)	B1 (mm)	D (mm)	H (mm)	H1 (mm)	Weight (kg)
1,00 m	810	280	320	200	260	1235	38.0
1,25 m	1060	-	-	-	-	1735	46.0
1,50 m	1310	-	-	-	-	1985	48.0

Installation & Maintenance

• The hydrant has an integrated telescopic standpipe that can be used for pipe coverings from 1 to 3 metres.
• It is designed to be maintenance-free.
