Product Overview

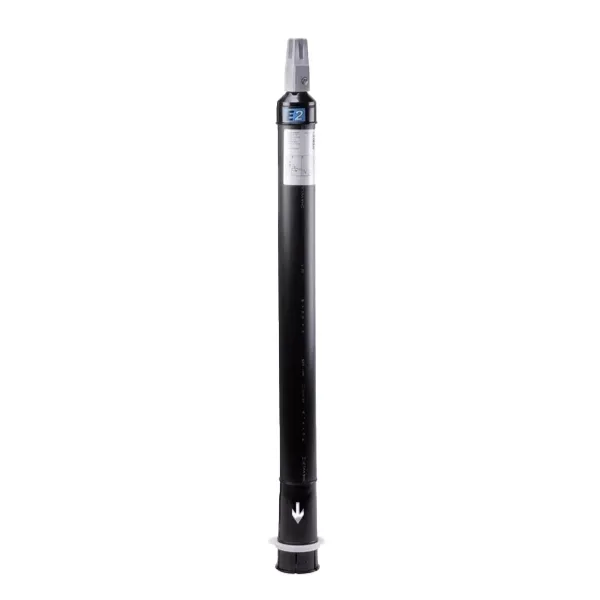

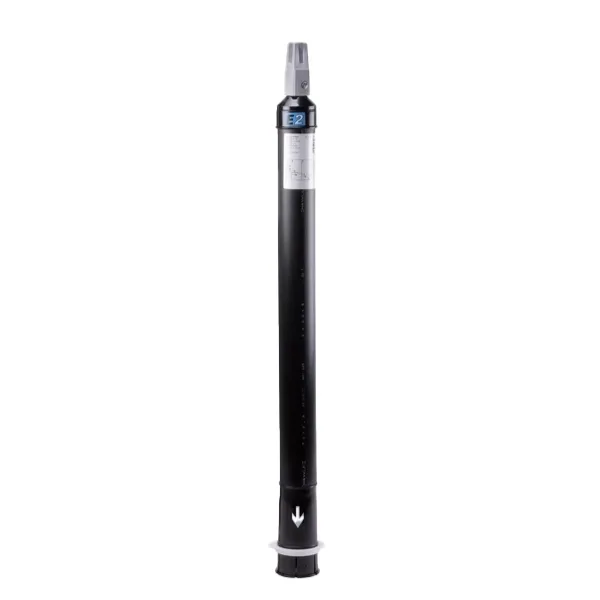

The HAWLE Extension Spindle (9000E2 / 9500E2) is available in both rigid and telescopic versions, designed to ensure reliable operation of valves. All extension spindles, whether rigid or telescopic, are protected against dirt and surface water. The telescopic version offers progressive adjustment to ground level, achieved by simply pushing or pulling the tube and spindle shaft. This telescopic effect provides protection to the pipe and fitting from surface impact. Rigid versions can be shortened on site by removing the outer cover cap, cutting the spindle and cover, then re-installing the cap. These spindles are designed for HAWLE E2 valves and E2 Combi valves, covering DN 50-200 and DN 250-600.

Key Benefits

• Available in rigid or telescopic versions.
• Protected against dirt and surface water.
• Telescopic version offers progressive adjustment to ground level.
• Telescopic effect protects pipe and fitting from surface impact.
• Rigid version can be shortened on site.
• Features a protective cover with an integrated locking mechanism.
• No additional fixing (bolt/pin) necessary for attachment.
• One extension spindle is suitable for several valve dimensions.

Applications

• For use with HAWLE E2 valves and E2 Combi valves across DN 50-200 and DN 250-600 ranges.
• Ideal for underground valve installations requiring access from ground level.

Features & Construction

• Protective cover with integrated locking mechanism.
• Outer protecting tube made of PE (Polyethylene).
• Spindle shaft made of Galvanised steel.
• Stop disc made of POM.
• Spindle coupling made of Galvanised ductile iron.
• Attachment of the extension spindle to the valve spindle takes place with a stainless steel splint.

Technical Specifications

The extension spindles are available for various pipe cover (RD) depths and valve nominal diameters (DN). Please specify dimensions and length when ordering.

Rigid Extension Spindles (No. 9000E2) - Weights (kg)

Pipe Cover (RD)	DN 50-100	DN 125-150	DN 200	DN 250	DN 300	DN 350	DN 400-500*	DN 500	DN 600
1.00 m	3.50	2.80	2.70	3.10	3.00	—	—	—	—
1.25 m	4.50	3.70	3.50	4.70	4.30	4.20	3.55	—	—
1.50 m	5.50	4.80	4.50	6.00	5.80	5.40	5.00	—	—
1.90 m	7.40	—	—	—	—	—	—	—	—
2.00 m	7.45	6.60	6.50	9.00	8.70	8.45	7.80	7.40	—
2.40 m	7.40	—	—	—	—	—	—	—	—
2.50 m	9.40	8.60	8.50	12.20	12.00	—	—	7.40	—

*Body: DN 400, with flange connection DN 450 or 500

Telescopic Extension Spindles (No. 9500E2) - Weights (kg)

Pipe Cover (RD)	DN 50-100	DN 125-150	DN 200	DN 250	DN 300	DN 350	DN 400-500*	DN 500	DN 600
1.30-1.80 m	6.60	6.25	—	—	—	—	—	—	—
1.35-1.80 m	6.10	—	—	—	—	—	—	—	—
1.40-1.80 m	7.30	—	—	—	—	—	—	—	—
1.50-1.80 m	6.90	6.70	6.30	—	—	—	—	—	—
1.90-2.20 m	8.80	—	—	—	—	—	—	—	—
2.00-2.30 m	8.80	—	—	—	—	—	—	—	—
2.00-2.50 m	9.50	8.90	8.60	11.00	10.50	10.20	9.70	—	—
2.50-3.50 m	12.80	12.00	11.90	15.30	14.90	14.50	14.20	—	—
2.60-3.50 m	—	—	—	—	—	—	—	14.50	14.00

*Body: DN 400, with flange connection DN 450 or 500

Installation & Maintenance

• Easy installation: No additional fixing (bolt/pin) necessary for attachment to the valve spindle.
• Rigid version can be shortened on site by cutting the spindle and outer cover.
• Telescopic version can be progressively adjusted to ground level.

Suitable Accessories (Available Separately)

• Extender for rigid spindle (Order no. 7830 for first meter, 7831 for each additional half meter).
