Product Overview

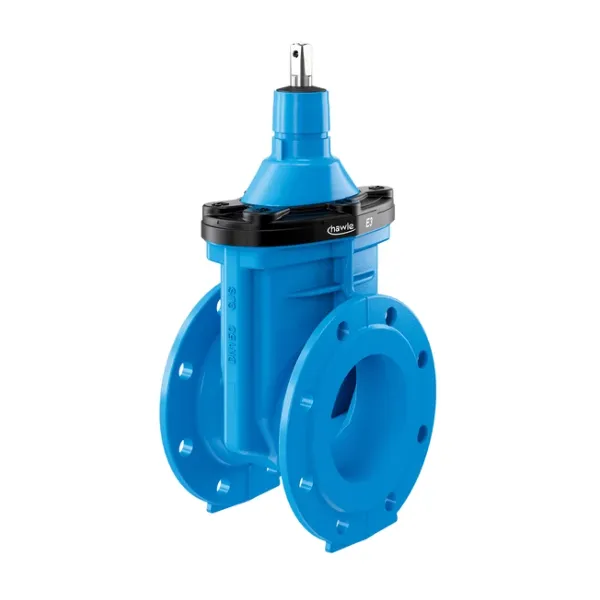

The HAWLE-E3 Valve is a resilient seated gate valve designed according to EN 1171, EN 1074-1, and EN 1074-2, featuring a smooth, straight-through bore. It has flanges sized in accordance with EN 1092-2. This valve boasts a double bayonet O-ring carrier that connects the spindle to the bonnet, allowing for a fully encased, uniform epoxy powder-coated bonnet for significantly improved corrosion protection. The wedge is flexible and fully linked in vulcanised elastomer to the wedge nut, which dampens vibration during opening and closing. The wedge nut also has an extended thread length, allowing for significantly higher torques before breaking compared to standard designs. The E3 Valve is 100% suitable for buried installations and cleaning with a cleaning pig. It offers easy refitting for position indicators and automatic actuators on the standard bonnet (DN 50 to DN 200) and is suitable for operation by automatic actuators.

Key Benefits

• Resilient seated gate valve with smooth, straight-through bore.
• Flanges sized in accordance with EN 1092-2.
• Double bayonet O-ring carrier for improved corrosion protection via fully encased bonnet.
• Duplex stainless steel spindle for enhanced durability.
• Wear-resistant POM wedge guide in a load-optimised design minimises attrition and ensures lowest torque actuation.
• Flexible wedge fully linked in vulcanised elastomer to the wedge nut for vibration damping.
• Wedge nut with long thread length resists significantly higher torques.
• O-rings and lip-seals mounted in the bonnet are replaceable under operating pressure.
• Extended edge protection to avoid damages during transport, storage, and assembly.
• Sliding disks and ball bearing assure low friction performance of the spindle.
• 100% suitable for buried installations.
• Suitable for cleaning with a cleaning pig.
• Suitable for operation by automatic actuators.
• Easy refitting for position indicator and automatic actuators on the standard bonnet (DN 50 to DN 200).

Applications

• Buried installations.
• Pipelines requiring resilient seated gate valves with smooth bore.
• Systems requiring automatic actuation.

Features & Construction

• Body: Ductile iron, EN-GJS-400-15 according to EN 1563, epoxy powder coated inside and outside (min. 250 µm thickness, zero porosity, min. 16 N/mm² adhesion).
• Bonnet/Centering Flange: Epoxy powder coated.
• Wedge: Ductile iron (EN-GJS-400-15 according to EN 1563), or brass CuZn40Pb2 (DN 50), fully vulcanised with elastomer.
• Wedge Nut: Non-ferrous metal, flexible and fully linked to wedge by vibration damping vulcanised elastomer, with thread length > 1.2 x spindle diameter.
• Wedge Guide: POM.
• Spindle: Duplex stainless-steel (1.4162 PREN value - 26) with rolled thread and flat-rolled anti-friction surface; non-rising spindle, polished in O-ring sealing area.
• O-ring Carrier: Brass CuZn40Pb2 with double bayonet connection (DN 50-DN 200).
• Sealing: EPDM elastomer (O-rings, bonnet gasket, centering flange gasket, lip seals, wiper ring).
• Covering Cap/Edge Protection Ring: PE (Polyethylene).
• Sliding Discs & Centering Ring: Brass CuZn21Si3P.

Technical Specifications

Property	Details
Standard Compliance	EN 1171, EN 1074-1, EN 1074-2
Face-to-Face Length	EN 558 GR 14 (short)
Flange Sizing	EN 1092-2 (drilled according to EN 1092-2 PN 16 up to DN 150; PN 10 or PN 16 from DN 200)
Available with Four-Hole Bore	According to DIN 1882 (selected dimensions)

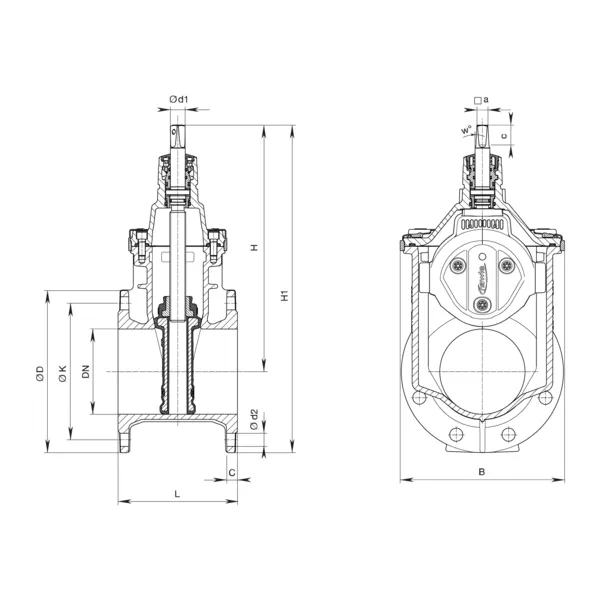

Dimensions and Weights (Selected Models)

Note: Dimensions and weights vary by DN, PN, and version. The table below provides a representative sample. Full details are available upon request for specific configurations.

DN (mm)	PN	Weight (kg)	H (mm)	L (mm)	B (mm)
50	16	9.8	234	150	143
65	16	15.2	305	170	180
80	16	16.2	312.5	180	180
100	16	20.5	343	190	212
125	16	33	421	200	289
150	16	36.8	433	210	289
200	10/16	60.2	541	230	356
250	10/16	98.4 / 101.6	649	250	432
300	10/16	150.8 / 149.8	731	270	518
350	16	205.5	816	290	604
400	10/16	260 / 265.4	925	310	687
500	10/16	476 / 471.5	1149	350	800
600	10/16	690 / 686	1377	390	944

Customisation Options

• Standard version without handwheel and extension spindle.
• Further special versions available on request.
• Other flange standards can be specified on order.
• Design versions for actuator (No. 4000ELE3), with position indicator (No. 4000STE3), for seawater (No. 4002E3, No. 4702E3), and with bevel gearing (No. 4000EWE3).
• For DN 500/DN 600, a version with bypass (DN 50) is available.
• Ventilation and exhausting for small amounts of air in the bonnet available.
