Product Overview

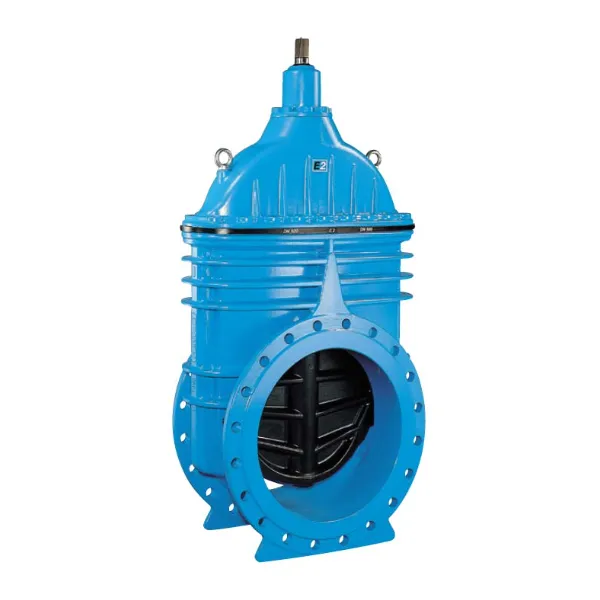

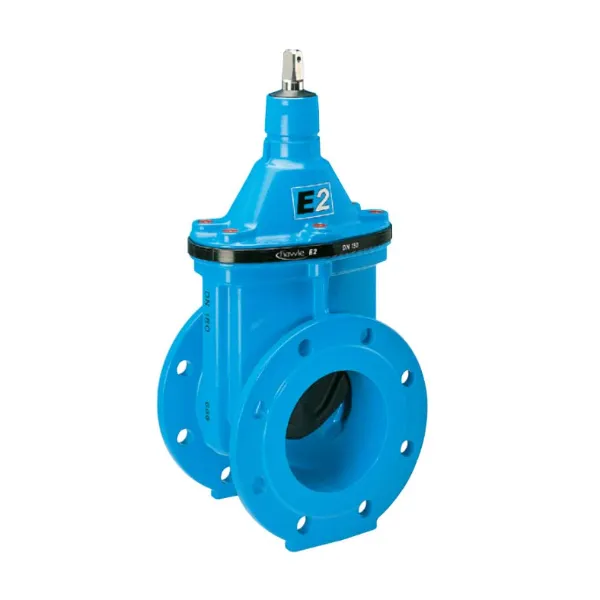

The HAWLE-E2 Valve is a resilient seated gate valve featuring a smooth, straight-through bore. It is available with flanges in accordance with EN 1092-2, drilled to various PN standards including PN 10, PN 16 (from DN 200), and PN 25. This valve is suitable for cleaning with a cleaning pig and can be operated by automatic actuators. It incorporates features like O-rings replaceable under pressure and ball bearings in the spindle seating to minimise closing forces. The E2 Valve is designed for easy actuation without bypass and without power boost, even for 16 bar differential pressure. It also allows for easy refitting of position indicators and automatic actuators on the standard bonnet. The valve features a duplex stainless steel spindle for enhanced durability.

Key Benefits

• Resilient seated gate valve with smooth, straight-through bore.
• Flanges sized and drilled in accordance with EN 1092-2.
• Suitable for cleaning with a cleaning pig.
• Designed for operation by automatic actuators.
• O-rings are replaceable under pressure for easier maintenance.
• Ball bearings in the spindle seating minimise closing forces.
• Easy to actuate without bypass and without power boost, even for 16 bar differential pressure.
• Duplex stainless steel spindle ensures durability.
• Easy refitting for position indicator and automatic actuators on the standard bonnet.

Applications

• Water distribution systems.
• Pipelines requiring resilient seated gate valves.
• Installations where automatic actuation is desired.

Features & Construction

• Wedge guide with high glide characteristics (specific to DN 50-200 versions).
• Load-optimised design guarantees very low wear and closing torques (specific to DN 50-200 versions).
• O-rings replaceable under pressure (specific to DN 250-600 versions).
• Ball bearings in the spindle seating minimises closing forces (specific to DN 250-600 versions).
• Duplex stainless steel spindle.

Technical Specifications

Property	Details
DN Range	DN 50 - 600
Pressure Nominal (PN)	PN 10 | PN 16 | PN 25
Flange Standard	EN 1092-2 (drilled according to EN 1092-2 PN 10, PN 16 from DN 200, PN 25)
Face-to-Face Length Versions	Short (EN 558-1 GR 14), Long (EN 558-1 GR 15), to BS 5163

Dimensions and Weights (Selected Models)

Note: Dimensions and weights vary by DN, PN, and version (short/long). The table below provides a representative sample. Full details are available upon request for specific configurations.

DN (mm)	MOP (PN)	L Short (mm)	L Long (mm)	Weight Short (kg)	Weight Long (kg)
50	10 / 16 / 25	150	—	12.0	—
65	10 / 16 / 25	170	—	18.0	—
80	10 / 16 / 25	180	—	20.5	—
100	10 / 16 / 25	190	—	27.5	—
125	10 / 16 / 25	200	—	38.0	—
150	10 / 16 / 25	210	—	46.0	—
200	10 / 16 / 25	230	—	72.0	—
250	10 / 16 / 25	250	450	100.0	121.0
300	10 / 16 / 25	270	500	147.0	170.0
350	10 / 16	290	—	205.0	—
400	10 / 16	310	600	261.0	300.0
500	10 / 16	350	700	488.0	542.0
600	10 / 16	390	800	720.0	789.0

Customisation Options

• Standard version supplied without handwheel and extension spindle.
• Special versions available on request.
• Other flange standards can be specified on order.
• Design versions available for actuator (No. 4000ELE2), with position indicator (No. 4000STE2), and for seawater (No. 4002E2, No. 4702E2).
• For DN 500/DN 600, a version with bypass (DN 50) is available.

Suitable Accessories (Available Separately)

• Handwheel: No. 7800.
• Extension spindles: Rigid (No. 9000E2), telescopic (No. 9500E2), rigid (No. 9000).
• Surface boxes: Rigid (No. 1750), telescopic (No. 2050, No. 2051K).
• Valve actuator: No. 9920.
• Adapter for actuator (E2 adapter): No. 8630E2.
• Base plate: No. 3481, No. 3482.
• Operating cap: No. 2156, No. 2157, No. 2158.
• Extension spindle: No. 7820, No. 7825.
• Bolts: No. 8810, No. 8830, No. 8840.
• HAWAK-pillar: No. 9894, No. 9895.
• Flat gasket: No. 3390, No. 3470.
