Product Overview

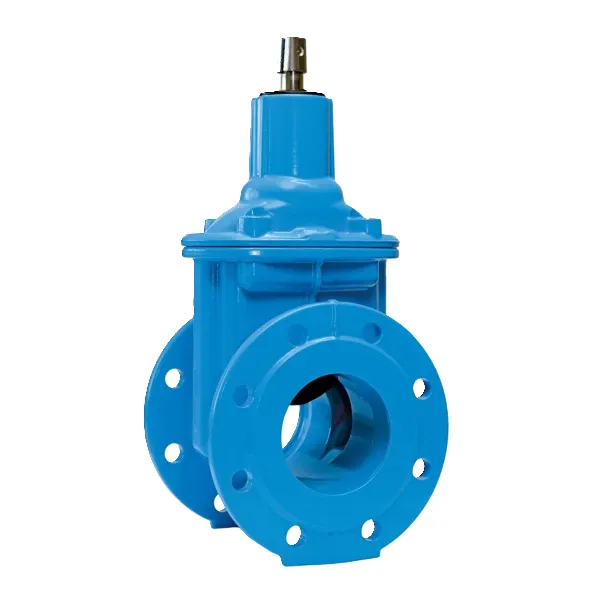

The HAWLE-E1+ Valve is a resilient seated gate valve, designed according to EN 1074-1 and EN 1074-2, featuring a smooth, straight bore. It is a flanged valve with a short face-to-face dimension (EN 558 GR 14). The valve's design incorporates a wedge guide with high glide characteristics and a load-optimised design, ensuring very low wear and closing torques. Its wedge nut is designed to resist high torque loads due to its larger size and more than the required thread length. The spindle bearing is attached in the bonnet by a bayonet connection, and O-rings are mounted on all sides in corrosion-proof material. Friction washers guarantee smooth spindle guiding. This valve is suitable for underground installation and features a duplex stainless steel spindle.

Key Benefits

• Resilient seated gate valve with smooth, straight bore.
• Flanged valve with short face-to-face dimension.
• Wedge guide with high glide characteristics ensures very low wear and closing torques.
• Wedge nut resists high torque load with larger size and ample thread length.
• Spindle bearing attached by secure bayonet connection.
• Corrosion-proof O-rings on all sides.
• Friction washers for smooth spindle guiding.
• Suitable for underground installation.
• Duplex stainless steel spindle for durability.
• Suitable for cleaning with a cleaning pig.

Applications

• Water distribution networks.
• Underground installations.
• Pipelines requiring resilient seated gate valves with smooth bore.

Features & Construction

• Body and bonnet made of ductile iron, epoxy powder coated inside and out.
• Wedge made of ductile iron, fully rubberised with vulcanised elastomer inside and out.
• Wedge guide made of wear-resistant POM.
• Wedge nut made of brass.
• Spindle: Duplex stainless steel with rolled thread and polished O-ring slide faces.
• Spindle Bearing: Made of POM.
• O-ring Bush: Made of brass, attached in bonnet by bayonet connection, anti-rotation, multiple O-ring sealing.
• O-rings: Made of elastomer.
• Bonnet Gasket: Made of elastomer.
• Allen screws are corrosion protected by being encased into the body with an enclosing gasket and wax.
• Covering cap made of PE for dirt protection of the spindle bearing.
• Friction washer made of POM.

Technical Specifications

Property	Details
Standard Compliance	EN 1074-1 and EN 1074-2
DN Range	DN 50 - 300
Pressure Nominal (PN)	PN 10 | PN 16
Face-to-Face Length	Short (EN 558 GR 14)
Flanges Sizing	EN 1092-2 (drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 for DN 200)

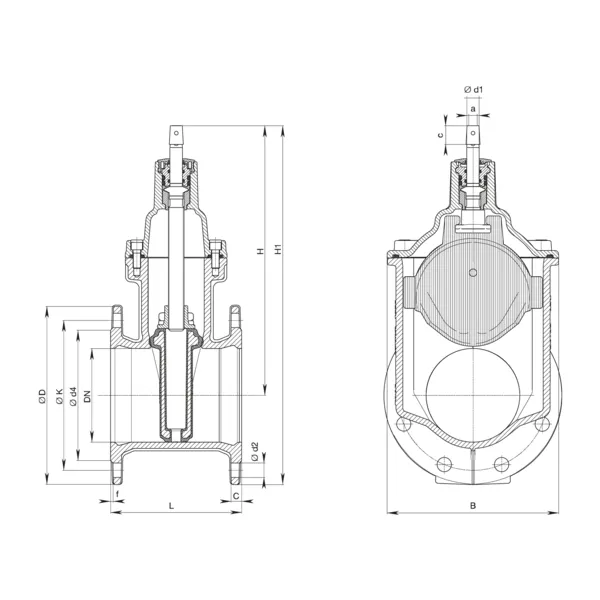

Dimensions per DN (Selected)

DN (mm)	MOP (PN)	OD (mm)	L (mm)	H (mm)	Weight (kg)
50	10 / 16	165	150	230	8.5
65	10 / 16	185	170	298	13.5
80	10 / 16	200	180	305	14.5
100	10 / 16	220	190	339	18.5
125	10 / 16	250	200	420	31.0
150	10 / 16	285	210	432	34.0
200	10 / 16	340	230	534	54.0
250	10 / 16	400	250	626	94.0
300	10 / 16	455	270	709	124.5

Customisation Options

• Standard version supplied without handwheel and extension spindle (only suitable for manual actuation).
• Special versions available on request.
• Other flange standards available on request.

Suitable Accessories (Available Separately)

• Handwheel: No. 7800.
• Extension spindles: Rigid (No. 9000), telescopic (No. 9000A, No. 9500), rigid from DN 65 (No. 9500A, No. 9500), telescopic (No. 1750, No. 2050).
• Surface boxes: No. 2051K.
• Base plate: No. 3480, No. 3481.
• Operating cap: No. 2156, No. 2157, No. 2158.
• Spindle extension: No. 7820, No. 7825.
• Bolts: No. 8810, No. 8830, No. 8840.
• HAWAK-pillar: No. 9894.
• Flat gasket: No. 3390, No. 3470.
