Product Overview

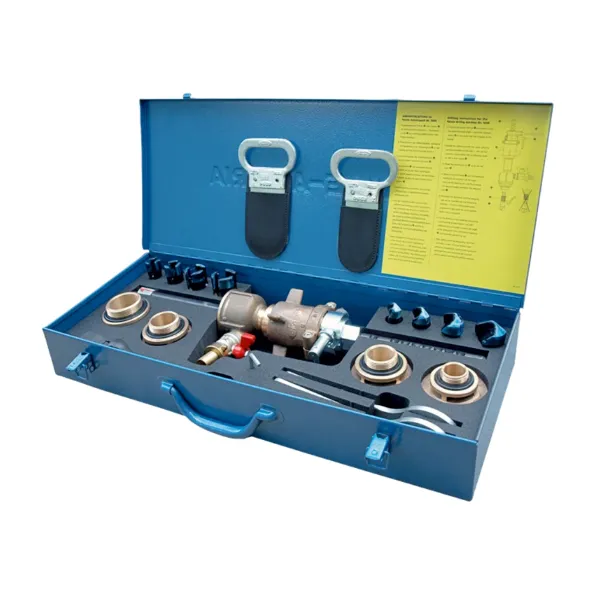

The HAWLE Drilling Machine Set 5800 is a comprehensive tool for drilling pipes under pressure. It can be used on pipes made of steel, ductile iron, AC, PE, and PVC. A key feature is that when drilling under pressure, any swarf is automatically washed out through an outlet. The machine is operated by a ratchet handle and fed by a feed wing nut. The entire set is provided in a durable case with a weight of 17.5 kg.

Key Benefits

• Can be used for drilling pipes of steel, ductile iron, AC, PE, and PVC.
• Swarf is washed out via an outlet when drilling under pressure.
• Easy operation via a ratchet handle and feed wing nut.
• Pipe saddle adapters and reducers are sealed with captivated rubber rings.

Applications

• Designed for drilling pipes under pressure.

Features & Construction

• The drilling machine is rotated by a ratchet handle and fed by a feed wing nut.
• The ratchet connects to the drill shaft with a simple locking device.
• The set includes a variety of twist drills and cup drills for different pipe materials.
• Adapters and reducers are supplied with captivated rubber seals.

Technical Specifications

• Overall Weight: 17.5 kg (for the complete set in the case).

Order No.	Description
5820	Drilling machine
5810	Case
5830	Ratchet
5840	Shaft
5850	Twist drill for steel, ductile iron and AC pipes
5860	Cup drill for PE and PVC-pipes
