Product Overview

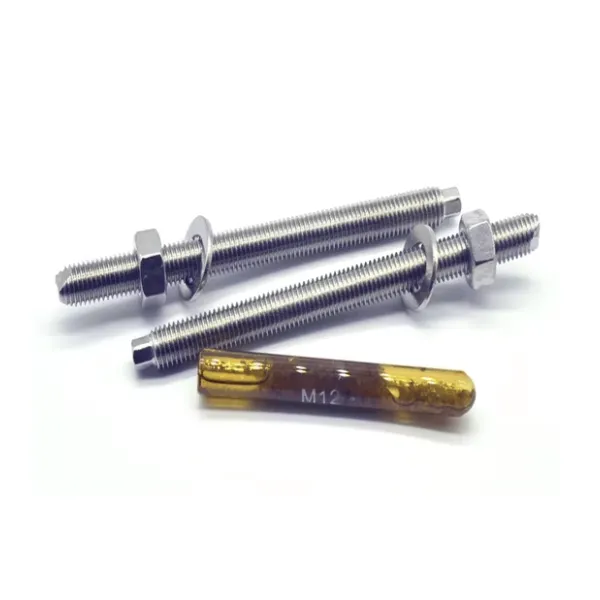

The Hammer-In Capsule M12 & 160mm Threaded Stud is an epoxy acrylate hammer-in capsule designed for use in solid concrete and some natural stone. This product is sold as a combo with a 160mm threaded stud, specifically for installing our Bolt-Fix bollards. It is an expansion-free product that allows for rapid installation and can achieve high loads.

Key Benefits

• Expansion Free: The capsule is expansion-free, making it suitable for a variety of applications.
• High Loads: It is engineered to achieve high loads.
• Rapid Installation: The hammer-in method allows for quick and efficient installation.
• Exact Resin Quantity: Each capsule provides the exact amount of resin needed per hole.

Applications

This product is specifically used for the installation of our Bolt-Fix bollards. It is also suitable for use in:

• Solid concrete
• Some natural stone
• Rotary percussion or diamond drilled holes

Features & Construction

• Epoxy acrylate formula.
• Supplied with a 160mm threaded stud.
• The capsule has a 13mm diameter and 110mm length.
• Nominal diameter is 12mm.
• Drill diameter required is 14mm.

Technical Specifications

Base Material Temperature (°C)	Dry Concrete Curing Time (mins)	Wet Concrete Curing Time (mins)
5	300	600
10	120	240
20	60	120
30	45	90

Installation & Maintenance

• Drill the hole to the correct diameter and depth.
• Clean out the hole thoroughly by brushing and blowing to remove all drilling debris and dust.
• Insert the capsule into the drilled hole in the direction of the arrow.
• Hammer in the threaded stud.
• Allow the resin to cure for the appropriate time based on temperature and moisture.
• Attach the bollard to the stud.
