Product Overview

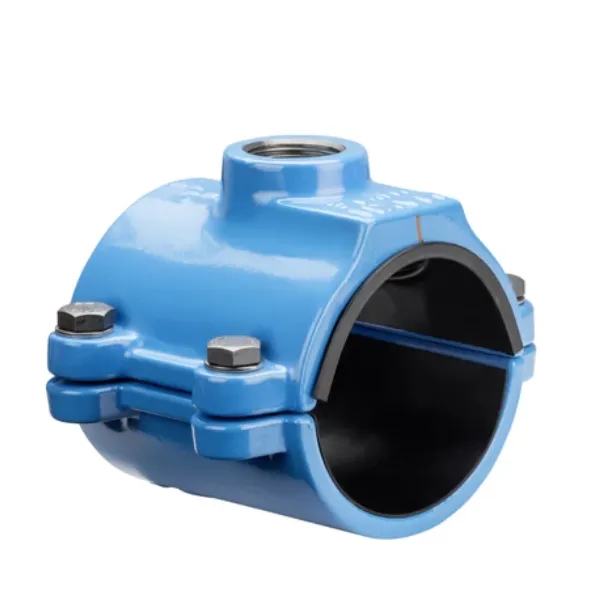

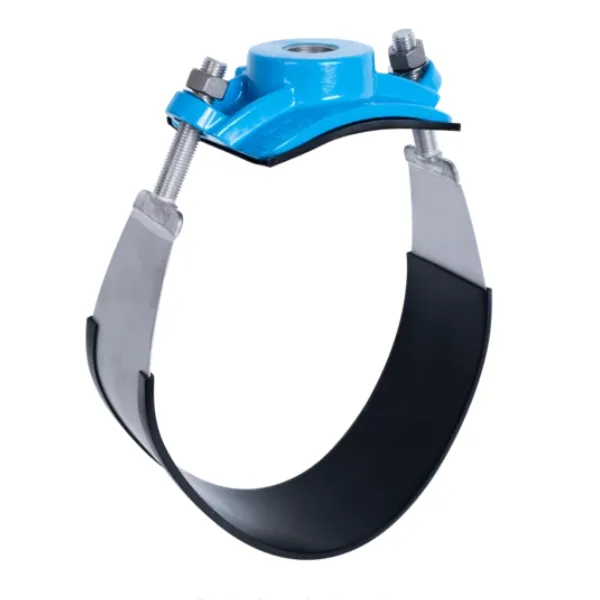

The HAKU Tapping Saddle with Inner Thread (No. 5250) is designed for PE pipes according to EN 12201 and DIN 8074, and PVC pipes according to EN ISO 1452-2. It features a HAKU seal that is in full contact with the entire diameter of the pipe and is glued onto the saddle for ease of assembly. Several concentric seals with increasing diameter surround the outlet, relieving pressure exerted upon the drill hole and protecting it from deformation. This saddle is suitable for drilling without pressure. Hawle products with internal threads, including this saddle, are equipped with an anti-corrosion ring to prevent corrosion.

Key Benefits

• Suitable for PE pipes (EN 12201, DIN 8074) and PVC pipes (EN ISO 1452-2).
• HAKU seal provides full contact with the pipe diameter and is glued for easy assembly.
• Concentric seals relieve pressure on the drill hole and protect it from deformation.
• Designed for drilling without pressure.
• Includes an anti-corrosion ring to prevent corrosion on internal threads.
• Robust construction.

Applications

• Tapping into PE and PVC pipelines.
• Applications where an inner threaded outlet is required.

Features & Construction

• Saddle body: Made of ductile iron, epoxy powder coated.
• Seals: Made of elastomer.
• Bolts: Molybdenum-coated, made of stainless steel, with washers made of stainless steel.
• Corrosion protection ring: Made of elastomer.
• Concentric seals with increasing diameter surround the outlet.
• Internal thread: According to ISO 228.

Technical Specifications

The HAKU Tapping Saddle (No. 5250) is available for pipe diameters ranging from 40mm to 630mm, with a pressure rating of PN 16.

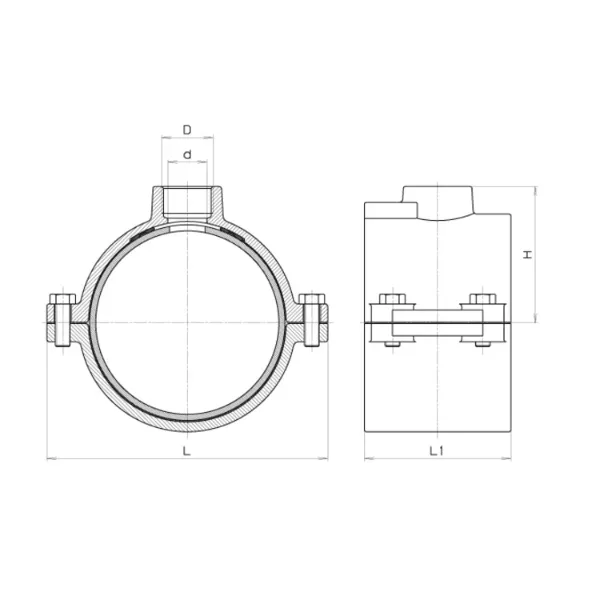

Pipe (mm)	Internal Thread Outlet (ISO 228)	G (mm)	Ød (mm)	H (mm)	L (mm)	L1 (mm)	Weight (kg)
40	1"	27	27	42	98	70	0.95
50	1"	27	27	56	110	80	1.20
63	1"	27	—	57	—	—	1.80
63	1 1/4"	33	—	62	124	100	2.00
63	1 1/2"	40	—	62	—	—	1.90
63	2"	40	—	68	—	—	2.10
75	1"	27	—	63	—	—	2.15
75	1 1/4"	33	—	68	135	110	2.25
75	1 1/2"	40	—	68	—	—	2.20
75	2"	50	—	73	—	—	2.30
90	1"	27	—	71	—	—	2.60
90	1 1/4"	33	—	75	—	—	2.70
90	1 1/2"	40	—	75	150	110	2.60
90	2"	50	—	80	—	—	2.70
110	1"	27	—	81	—	—	3.60
110	1 1/4"	33	—	85	170	120	3.60
110	1 1/2"	40	—	85	—	—	3.80
110	2"	50	—	90	—	—	3.60
125	1"	27	—	87	—	—	3.70
125	1 1/4"	33	—	93	192	120	3.70
125	1 1/2"	40	—	93	—	—	4.15
125	2"	50	—	98	—	—	4.10
140	1"	27	—	96	—	—	4.40
140	1 1/4"	33	—	100	208	120	4.30
140	1 1/2"	40	—	100	—	—	4.60
140	2"	50	—	106	—	—	4.50
160	1"	27	—	106	—	—	5.90
160	1 1/4"	33	—	111	230	120	6.10
160	1 1/2"	40	—	111	—	—	6.30
160	2"	50	—	116	—	—	6.20
180	1"	27	—	125	—	—	8.00
180	1 1/4"	33	—	125	262	120	8.00
180	1 1/2"	40	—	127	—	—	8.10
180	2"	50	—	127	—	—	8.10
200	1"	27	—	132	—	—	8.10
200	1 1/4"	33	—	132	282	120	7.80
200	1 1/2"	40	—	137	—	—	8.30
200	2"	50	—	137	—	—	8.10
225	1"	27	—	143	—	—	9.10
225	1 1/4"	33	—	145	310	120	9.40
225	1 1/2"	40	—	145	—	—	9.70
225	2"	50	—	150	—	—	9.60
250	1"	27	—	156	—	—	11.00
250	1 1/4"	33	—	156	—	—	11.30
250	1 1/2"	40	—	163	347	180	11.50
250	2"	50	—	163	—	—	12.00
280	1"	27	—	176	—	—	3.80
280	1 1/4"	33	—	176	—	—	3.60
280	1 1/2"	40	—	176	204	120	3.60
280	2"	50	—	176	—	—	3.30
280	2"	51	—	178	377	180	14.20
315	1"	27	—	194	—	—	3.58
315	1 1/4"	33	—	194	—	—	3.80
315	1 1/2"	40	—	194	200	120	3.75
315	2"	50	—	194	—	—	3.55
315	2"	50	—	196	408	180	16.70
355	2"	50	—	220	270	120	3.50
400	1 1/2"	40	—	243	270	120	4.90
400	2"	50	—	243	270	120	4.90
450	1 1/2"	40	—	268	235	120	4.60
450	2"	50	—	268	235	120	4.60
500	1 1/2"	40	—	292	255	120	4.90
500	2"	50	—	292	255	120	4.90
630	2"	50	—	342	255	120	9.50
