Product Overview

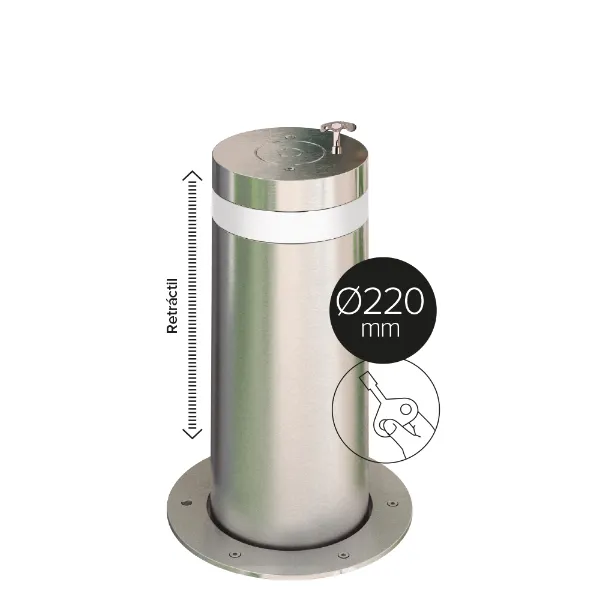

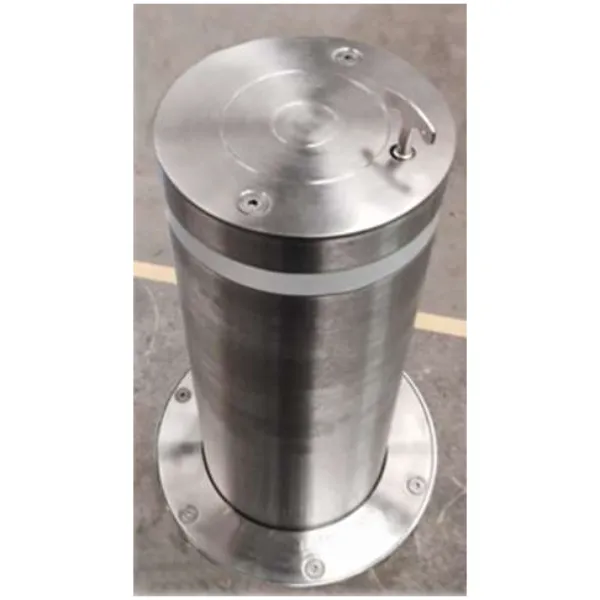

The H2204 Semi-Automatic Telescopic Bollard from IPL group is designed to effectively regulate access to public roads, residential communities, and commercial spaces. Constructed with a durable stainless steel finish, it features automatic rising with gas spring assistance and manual lowering. The bollard securely locks in both upright and lowered positions with a DIN3223 triangular key, offering reliable and convenient control. This robust design boasts an impressive impact resistance rated at 125,000 Joules and has been tested for over 500,000 cycles for long-lasting reliability.

Key Benefits

• Effective Access Regulation: Designed to effectively control access to public roads, residential communities, and commercial spaces.
• Semi-Automatic Operation: Features effortless gas spring-assisted automatic rising and convenient manual lowering.
• High Security: Automatically locks securely in both raised and lowered positions with a standard DIN3223 triangular key, ensuring reliable control.
• Exceptional Durability: Constructed from stainless steel with a satin finish for durability and corrosion resistance. Tested for over 500,000 cycles for long-lasting reliability.
• Extreme Impact Resistance: Boasts an impressive impact resistance rated at 125,000 Joules, ensuring resilience against significant forces.
• Enhanced Visibility: Includes an integrated grey level II reflective band for enhanced visibility.

Applications

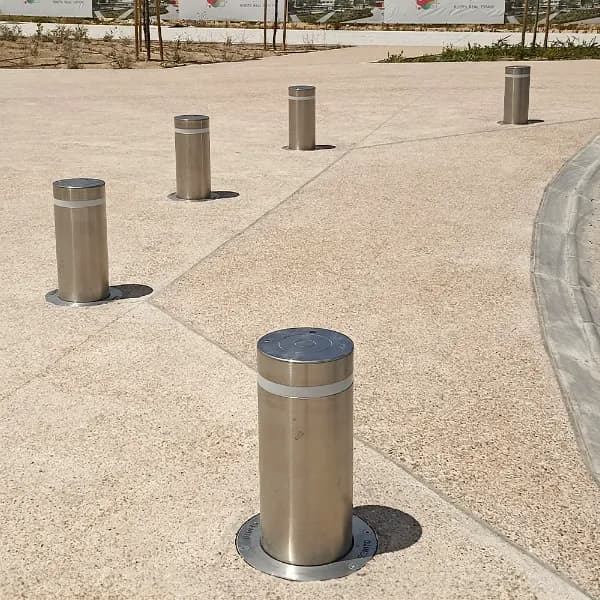

The H2204 Semi-Automatic Telescopic Bollard is suitable for regulating access and enhancing security in various environments, including:

• Public roads.
• Residential communities.
• Commercial spaces.
• Areas requiring secure and convenient access control.

Features & Construction

• Material and Finish: Stainless steel construction with a satin finish for durability and corrosion resistance.
• Rising Mechanism: Gas spring-assisted automatic rising.
• Rising Strength: 750 Newton.
• Lowering system: Manual.
• Reflective Band: Integrated grey level II reflective band.
• Security: Automatic locking in both raised and lowered positions.
• Key: Triangular 10 mm (DIN3223) key included.
• Impact Resistance: 125,000 Joules.
• Cycles: More than 500,000.

Customisation Options

• Customizable Key: Options for different key types may be available to suit specific security needs.
• Alternative Finishes: Explore additional finishes to match various aesthetic preferences.

Technical Specifications

Specification	Value
Height from street level	500 mm
Bollard diameter	220 mm
Box dimensions	340x990mm
Thickness	4.0 mm
Material and finishes	Stainless steel / Satin
Rising system	Gas cylinder
Rising force	750 Newton
Lowering system	Manual
Reflective band	Yes, Grey Level II
Key	Yes (Triangular 10mm)
Upper/Lower locking	Automatic
Impact resistance	125,000 Joules
Cycles	More than 500,000

Installation & Maintenance

• Installation: The bollard should be installed with appropriate drainage (e.g., connect to a nearby natural drain or place a layer of gravel). During masonry work, protect the upper part of the bollard to prevent concrete from entering the interior and avoiding possible operating problems. To start up, step on the bollard and turn the key; it will rise automatically blocking above. To lower, unlock with the key and press down until it locks. Further information and installation requirements are available from IPL group.
• Maintenance: Tested for over 500,000 cycles, ensuring long-lasting reliability and minimal maintenance. The stainless steel construction provides durability and corrosion resistance.
