Product Overview

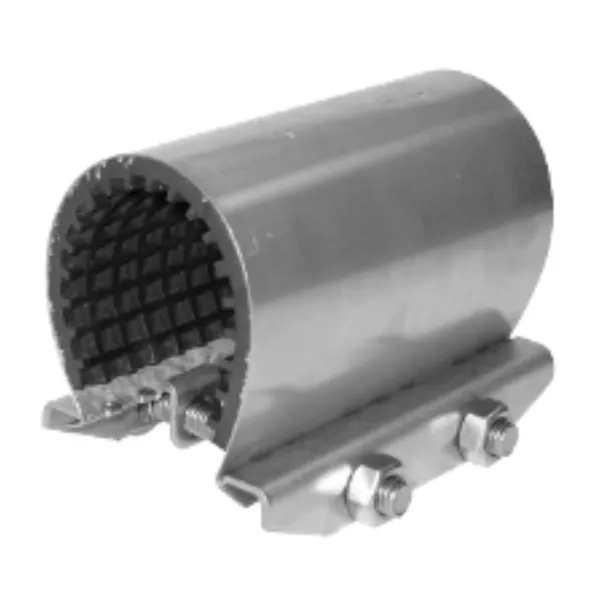

The Gebo Unifix Mini is designed for effectively sealing holes, fractures, and porous areas in water-bearing pipes with a smooth surface. Its unique honeycombed structure of the sealing (made from EPDM, approved for drinking water) provides improved compensation for pipe irregularities. This compact solution allows for easy installation even in tight locations, requiring only 7mm of space.

Key Benefits

• Effective Sealing: Specifically designed to seal holes, fractures, and porous areas in smooth, water-bearing pipes.
• Compensates for Irregularities: The honeycombed structure of the EPDM sealing improves compensation for minor pipe irregularities, ensuring a reliable seal.
• Drinking Water Approved: The EPDM sealing material is approved for drinking water applications, ensuring safety and compliance.
• Easy Installation in Tight Spaces: Designed for convenience, the Mini can be installed in very confined areas, requiring only 7mm of space.

Applications

The Gebo Unifix Mini is suitable for sealing and temporary repair in various pipe types carrying cold water:

• Steel pipe
• Black steel pipe
• Stainless steel pipe
• Copper pipe
• And the temporary repair of cold water-bearing:
  • PE pipe
  • PVC pipe
  • Multilayer pipes

Features & Construction

• Sealing Material: EPDM (Ethylene Propylene Diene Monomer), drinking water approved.
• Sealing Structure: Honeycombed for improved compensation of pipe irregularities.
• Compact design for installation in tight locations.

Technical Specifications

Specification	Value
Pressure Level (Water)	PN 10
Temperature (Water)	Up to 90 °C
Length Options	60mm, 100mm
Compatible Pipe Dimensions (mm)
For 60mm Length:	21–25, 26–30, 33–37, 38–42, 42–45, 48–51, 55–58, 60–64, 69–73, 74–80, 87–93
For 100mm Length:	21–25, 26–30, 33–37, 38–42, 42–45, 48–51, 55–58, 60–64, 69–73, 74–80, 87–93
