Product Overview

The Gebo Unifix Maxi is a range of stainless steel sealing clamps designed for the quick and permanent repair of broken, fractured, or porous water-bearing and gas-bearing pipes with a smooth surface. (Caution: For gas-bearing pipes, use is restricted to outside of buildings only). These clamps are made of 100% stainless steel 1.4301 (V2A) similar to AISI 304, ensuring high durability. For applications requiring higher resistance (e.g., wastewater treatment plants, chemical industry, increased chloride content), an option for V4A stainless steel is available. The unique design features bolts welded onto the clamp, making only the stainless steel bridge movable, which ensures no parts are lost during installation.

Key Benefits

• Quick & Permanent Repair: Designed for efficient and lasting repair of damaged pipes.
• High-Quality Stainless Steel Construction: Made of 100% stainless steel 1.4301 (V2A) with an option for V4A, ensuring long-lasting durability and corrosion resistance even in demanding environments.
• Loss-Proof Installation: Welded bolts mean no loose parts, simplifying installation and preventing component loss.
• Media-Specific Sealing: Features EPDM sealing for drinking water applications or NBR for gas applications (DIN DVGW accredited), ensuring appropriate and safe sealing for different media.
• Wide Pipe Compatibility: Suitable for a broad range of pipe materials and diameters.

Applications

The Gebo Unifix Maxi is suitable for the quick and permanent repair of pipes across various materials, with specific considerations for gas and cold water:

• Steel pipe
• Cast iron pipe
• Ductile cast iron pipe
• Fibre cement pipe
• PE pipe (cold water area only)
• PVC pipe (cold water area only)

Features & Construction

• Material: 100% stainless steel 1.4301 (V2A) similar to AISI 304.
• Optional Material: V4A stainless steel for enhanced resistance in corrosive environments.
• Sealing: EPDM for drinking water or NBR for gas (DIN DVGW accredited).
• Bolts: Welded onto the clamp.
• Bridge: Stainless steel, movable for easy installation.
• Designed for pipes with a smooth surface.

Customisation Options

The Gebo Unifix Maxi range offers significant customisation to suit specific repair needs:

• Clamp Part Configuration: Available as Maxi 1 (one part), Maxi 2 (two part), or Maxi 3 (three part) sealing clamps, depending on the pipe outer diameter.
• Installation Lengths: Choose from various installation lengths ranging from 150mm to 1000mm, with corresponding bolt quantities. To find the right installation length, add the size of the damaged area to the pipe diameter; for PE pipes, add 50% of this sum.

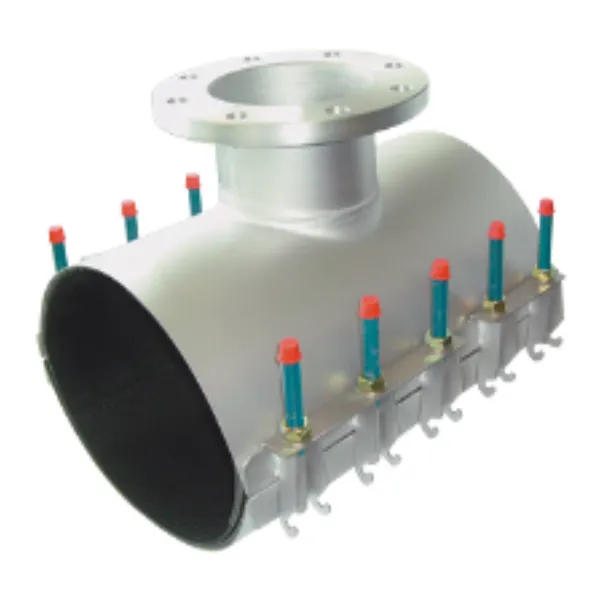

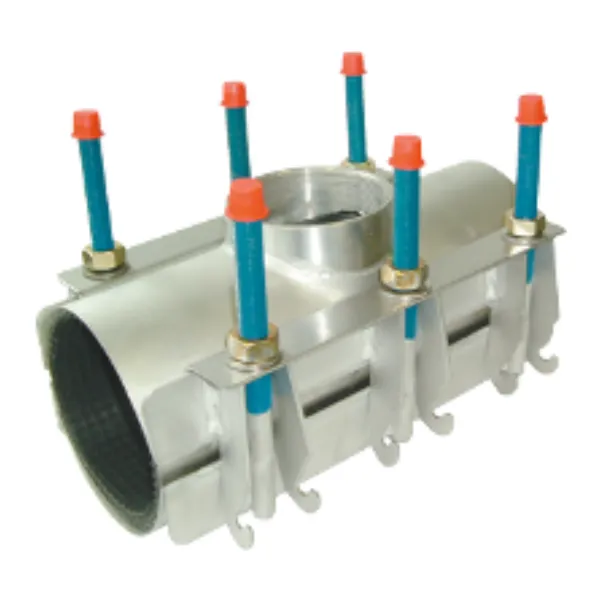

• Specialized Connections: Options include a Maxi with threaded outlet or a Maxi with flange connection.
• Material Grade: Option to choose V4A stainless steel for applications requiring higher resistance.
• Sealing Material: Choice between EPDM (for water) and NBR (for gas) sealing.

Technical Specifications

Specification	Value
Material (Clamp)	100% Stainless Steel 1.4301 (V2A); V4A option available
Material (Sealing)	EPDM (for water) or NBR (for gas)
Pressure Levels [bar] by Model & Pipe Outer-Ø

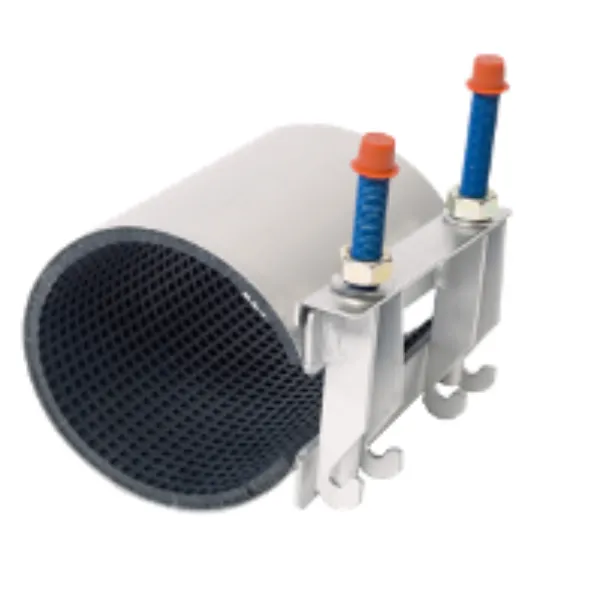

Maxi 1 (one part sealing clamp)
Pipe Outer-Ø	Pressure (Water)	Pressure (Gas)
48–102mm	PN 16	PN 5
106–230mm	PN 16	PN 4
237–350mm	PN 10	PN 3

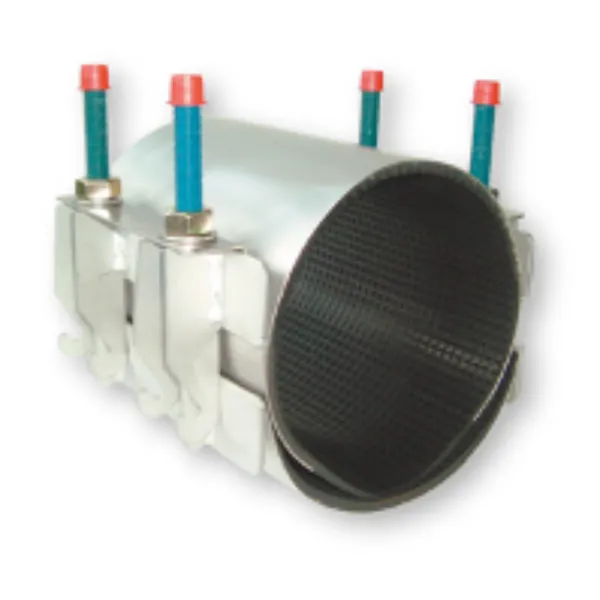

Maxi 2 (two part sealing clamp)
Pipe Outer-Ø	Pressure (Water)	Pressure (Gas)
88–282mm	PN 16	PN 4
295–510mm	PN 10	PN 3
510–530mm	PN 6	–

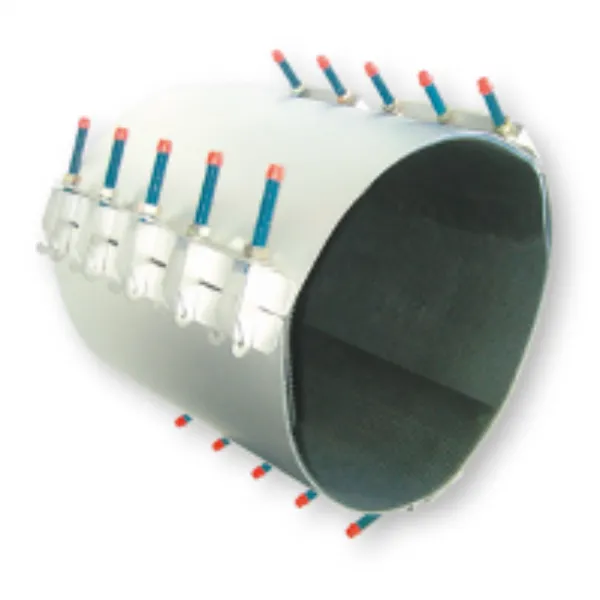

Maxi 3 (three part sealing clamp)
Pipe Outer-Ø	Pressure (Water)	Pressure (Gas)
270–630mm	PN 10	PN 3
654–780mm	PN 6	–
813–1000mm	PN 2	–
General Operating Conditions
Temperatures (Water)	Up to 90 °C
Temperatures (Gas)	–5 to +50 °C
Installation Lengths
Length (mm)	Bolt Qty.
150	2
200	2
300	3
400	4
500	5
600	6
700	7
800	8
900	9
1000	10
