Product Overview

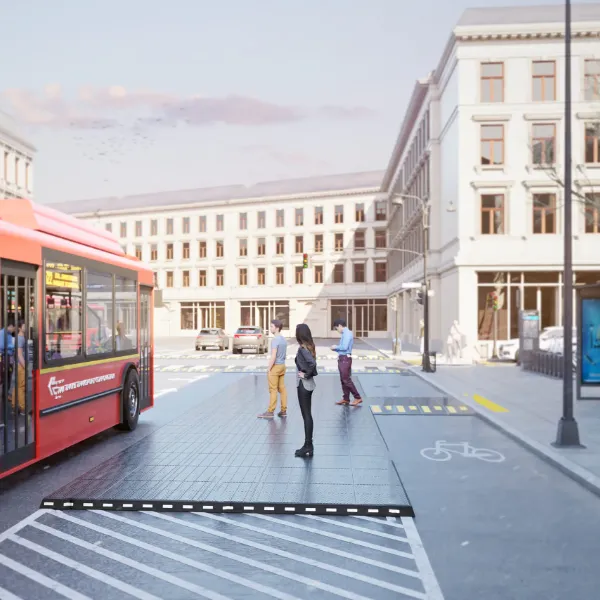

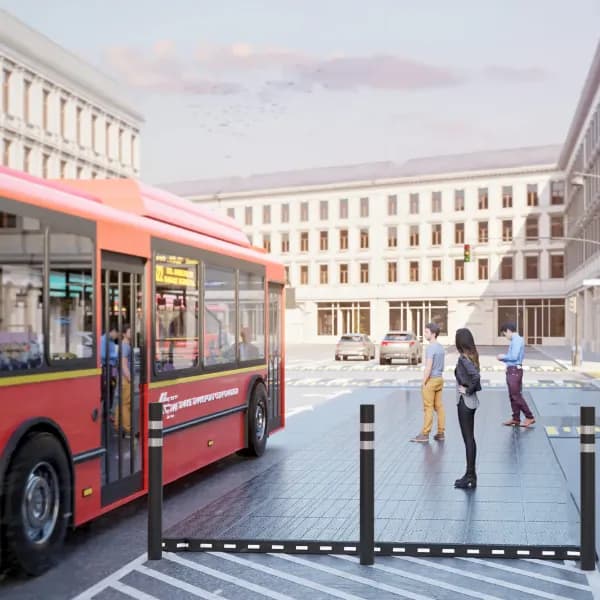

The Fórsa Passenger Platform from IPL group is an innovative solution designed to optimise traffic flow and safety in areas where bus stops, cycle paths, and vehicle parking zones intersect. It effectively resolves conflicts between cyclists and pedestrians by allowing cyclists to safely pass behind designated bus stops. This design also significantly improves bus stop accessibility for all users. The Passenger Platform features a durable, non-slip surface, reflective elements for enhanced visibility, and metal reinforcement for secure mounting.

Key Benefits

• Optimised Traffic Flow & Safety: Designed to resolve conflicts between cyclists and pedestrians at intersection areas (bus stops, cycle paths, parking zones), promoting smoother traffic flow.
• Enhanced Accessibility: Significantly improves bus stop accessibility for all users.
• Superior Durability & Non-Slip Surface: Features a vulcanized rubber wear layer, SBR rubber granules, and PUR glue construction for long-term performance and a non-slip surface structure (complying with European standard 45 SRT).
• Increased Visibility: Equipped with 3M reflective tape for enhanced visibility in low-light conditions.
• Secure & Stable Installation: Utilises metal reinforcement for secure mounting and stability.
• Modular & Adaptable: Comprised of modular components (ramp sections, flat sections, curb, tiles) that can be stacked to create standard or raised platforms.

Applications

The Fórsa Passenger Platform is ideal for optimising traffic flow and safety in complex urban and transit environments, including:

• Bus stops where cycle paths and vehicle parking zones intersect.
• Creating safe passages for cyclists behind designated bus stops.
• Enhancing accessibility for bus stop users.
• Delimiting traffic islands and traffic circles with rubber curbs.
• Warning tiles at bus stops, metro stations, railway platforms, and roadside architectural elements for the blind and visually impaired.

Features & Construction

• Durable, non-slip surface structure (complies with European standard 45 SRT).
• Constructed from vulcanized rubber wear layer, SBR rubber granules, and PUR glue.
• Features 3M reflective tape.
• Includes metal reinforcement for secure installation and stability.
• Comprised of four major components: SPS04 (Modular ramp section with slope), SPS44 (Flat modular ramp section), Rubber Curb (Perimeter finishing trim sections), and Braille Tiles (Tactile surface elements).

Customisation Options

• Colours: SPS04 & SPS44 ramp sections available in Black, Red, White. Rubber curbs available in Black, Red. Braille tiles available in Yellow or White. Reflective tape available in White or Yellow.

Technical Specifications

Specification	Value
SPS04 & SPS44 Ramp Sections
Material	Vulcanised rubber (wear layer), SBR rubber granulate, PUR resin
Reflective Tape	3M
Metal Reinforcement	For assembly
Dimensions	Length 1000 mm, Width 500 mm, Height 0-100 mm
Weight (approx.)	35.5 ± 0.5 kg
Colours (Ramp Sections)	Black, Red, White
Rubber Curb
Material	Vulcanised rubber
Reflective Tape	3M
Metal Reinforcements	For mounting
Dimensions	Length 1000 mm, Width 90 mm, Height 100 mm
Weight	7 kg
Colours (Rubber Curb)	Black, Red
Braille Tiles
Material	Vulcanised rubber
Dimensions	Length 600 mm, Width 300 mm, Height 4, 5-7 mm
Weight	1 kg
Colours (Braille Tiles)	Yellow, White
Performance Parameters (Ramp Sections)
Tensile strength	≥5.0 MPa
Hardness	≥60 ShA
Water absorption	≤2%
Tolerance (length, width, height, weight)	±2% of nominal
Performance Parameters (Rubber Curb)
Tensile strength	≥4.0 MPa
Hardness	≥60 ShA
Water absorption	≤2%
Tolerance (length, width, height, weight)	±2% of nominal
Performance Parameters (Braille Tiles)
Compression for 24h at 70°C - Deformation 25%	≤40%
Slip resistance	≥20 SRT
Flammability	≤100 mm/min
Tolerance (length, width)	±5 mm of nominal
Tolerance (height)	±0.5 mm of nominal

Installation & Maintenance

• Installation: The Passenger Platform is comprised of four major components (SPS04, SPS44, Rubber Curb, Braille Tiles). Standard installation involves connecting SPS44 segments using T-connectors, drilling holes through openings, cleaning holes, and then screwing the flexible curb around the outer edge. For stacked platforms, additional SPS04 segments are assembled and secured on top of the base platform using double-ended threaded rods, bolts, and washers. Further information and installation requirements are available from IPL group.
• Maintenance: The durable construction from vulcanized rubber, SBR rubber granules, and PUR glue, along with metal reinforcement, ensures long-term performance. Reflective tape provides continuous visibility. Regular cleaning to remove debris is recommended to maintain optimal performance and aesthetics.
