Product Overview

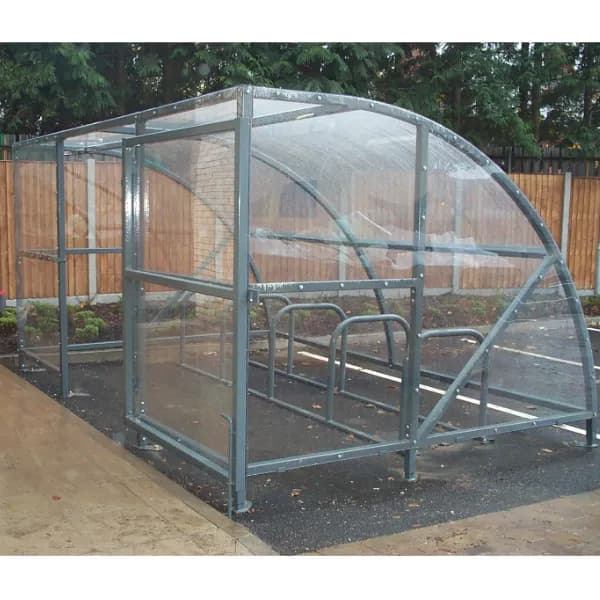

The Forsa Bike Shelter (Extended) is an enhanced bike shelter designed to provide a perfect harmony of aesthetics and budget requirements. This model offers improved security as it is lockable, and superior weather protection due to its fully enclosed design. It features a 50mm x 50mm galvanised steel strongbox section framework and high specification UV2 PetG sheeting. It is designed to house a wide range of capacities, from 10 up to 160 bicycles.

Key Benefits

• Enhanced Security: Designed to be lockable, providing improved safety for stored bicycles.
• Superior Weather Protection: Fully enclosed design offers enhanced shelter from environmental elements.
• Aesthetic & Budget-Friendly: Combines appealing design with cost-effectiveness.
• Durable Construction: Framework produced from galvanised steel strongbox section ensures robust and long-lasting performance.

Applications

The Forsa Bike Shelter (Extended) is suitable for a range of applications requiring increased security and weather protection, including:

• New showrooms and commercial developments.
• Pedestrian areas and public spaces.
• Upgrades of existing streetscapes.
• Secure bicycle parking areas for various capacities.

Features & Construction

• Framework produced from 50mm x 50mm galvanised steel strongbox section to EN 10219:2006.
• High quality UV2 PetG clear sheeting, available in both 3mm and 5mm options.
• Fully enclosed design for enhanced weather protection and security.
• Cloaking (where applicable) provides an aesthetically pleasing finish to the PetG sheeting and improves edge durability.
• Designed to house a range of capacities from 10 to 160 bicycles.

Customisation Options

• Optional powder-coated finish for the framework.
• Choice of 3mm or 5mm UV2 PetG sheeting.
• Capacities ranging from 10 to 160 bicycles, increasing in increments of 10.
• Sub-Surface or Surface-Mounted installation options.

Technical Specifications

Specification	Value
Height	2150mm
Width (by capacity)	Varies by capacity: 10 bikes: 4100mm 20 bikes: 8150mm 30 bikes: 12200mm 40 bikes: 16250mm 50 bikes: 20300mm 60 bikes: 24350mm 70 bikes: 28400mm 80 bikes: 32450mm 90 bikes: 36500mm 100 bikes: 40550mm 110 bikes: 44600mm 120 bikes: 48650mm 130 bikes: 52700mm 140 bikes: 56750mm 150 bikes: 60800mm 160 bikes: 64850mm
Depth	2770mm
Bike Capacity	Varies by configuration (10 to 160 bicycles).
RS Socket Option	RS50x50.

Installation & Maintenance

• Installation: Can be installed via Sub-Surface or Surface-Mounted methods. Compatible with RS 50x50 Retention Sockets, which are intelligent foundation solutions for improved asset management and reduced operational costs.
• Maintenance: The robust construction and optional powder-coated finish contribute to a low-maintenance design.
