Product Overview

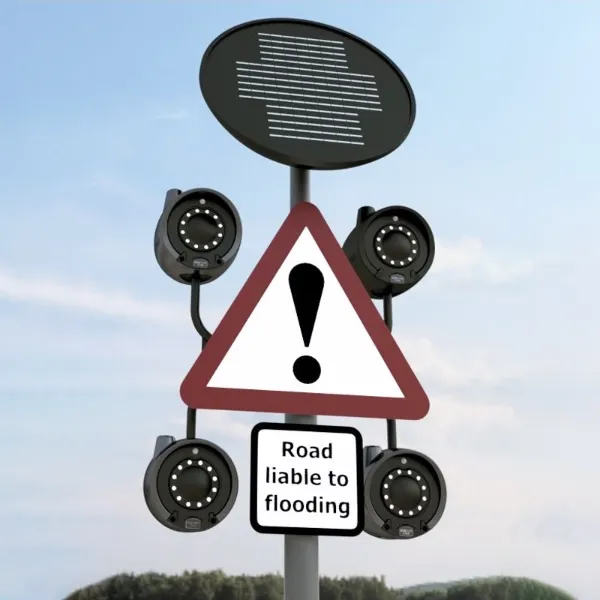

The EYECON STAR I from IPL group is a solar-powered, vehicle-activated, amber flashing device that provides enhanced visibility in all lighting conditions to approaching vehicles. Ideal for highlighting all road traffic signs and hazard zones, it is available as a single or double-sided unit. Featuring a low-impact design solar panel, advanced technology batteries (Absorbent Glass Matt - AGM), and a low-energy LED light array, the EYECON STAR I is designed to operate all year round. It is supplied complete with a 76 or 89 post top mount or 114 offset bracket, along with the PV panel, battery pack, and solar regulator.

Key Benefits

• Enhanced Visibility & Safety: Provides superior visibility in all lighting conditions with amber flashing LEDs, designed to highlight road traffic signs and hazard zones.
• Zero Energy & Low Maintenance: Solar powered, requiring no electrical supply, leading to low operational costs and maintenance. Designed for year-round operation.
• Durable & Impact Resistant: Features a low-impact design solar panel with IK10 impact resistance. The EYECON body is made of medium-density polyethylene (IK10) with galvanised steel support, ensuring robustness.
• Long-Life Battery: Utilises Absorbent Glass Matt (AGM) batteries with an anticipated lifespan of 8-12 years and high efficiency PWM regulator.
• Intelligent Activation: Available with radar activation options (Short 70M & Long Range 200M) for various road speeds, with customizable activation settings.
• Optimal Light Output: Delivers high daytime light output (14,000 cd/m²) and sufficient nighttime light output (100 cd/m²), with dynamic dimming.
• Versatile Mounting: Supplied with various post top mount and offset bracket options for flexible installation.
• Environmental Benefits: Recyclable components.

Applications

The EYECON STAR I is ideal for enhancing safety and visibility in various road and traffic environments:

• Highlighting road traffic signs.
• Demarcating hazard zones.
• Improving safety at points of divergence or tight curves.
• Applications requiring vehicle-activated warning signals.

Features & Construction

• Solar Panel: 12V monocrystalline panel, with IK10 impact resistance, set at 22° angle. Rotationally moulded U.V. stabilised (UV8) black polyethylene moulding with galvanised steel support pillar powder coated black.
• Battery: 12V/9Ah Absorbent Glass Matt (AGM) batteries (quantity varies by model) mounted in post base or separate battery box, with 8-12 years lifespan.
• Regulator: High efficiency PWM regulator mounted with battery pack.
• Protection (Solar Engine): IP54 and IK10.
• EYECON Body: 250mm x 250mm deep, black or grey, medium density polyethylene, rotationally moulded, U.V. stabilised (UV8), 3mm nominal wall thickness built onto a steel stem Ø 48mm and 3mm thick CHS tube with pre-treatment & black or grey Polyester powder coat.
• Light Engine: Surface mount Amber LEDs with engineered narrow beam lenses that reduce unwanted side visibility. Integrated cowl reduces 'Sky Glow'.
• Light Output: Daytime 14,000 cd/m², Nighttime 100 cd/m². Nighttime dynamic dimming between 1000 Lux to 0 Lux.
• Flash Rate: 0.75 seconds, 50% duty cycle, 3 flashes per trigger.
• Protection (EYECON): IP54 and IK08.

Customisation Options

• Available as single or double-sided.
• Supplied with 76 or 89 post top mount or 114 offset bracket.
• Radar activation options: Short 70M & Long Range 200M for low (<30mph) and higher (>30mph) speed roads.
• Radar activation setting: 10 mph low/90 mph High default, customer selectable in 10 mph increments via an easily accessible rotary switch. Minimum and maximum activation speed can be programmable at time of manufacture.
• PV Panel size/wattage and Battery Pack quantities vary by single/double sided configuration.

Technical Specifications

Specification	Value
Solar Panel	12V monocrystalline panel, IK10 impact resistance, PV Panel set at 22°
Battery Type	12V/9Ah Absorbent Glass Matt (AGM)
Regulator	High efficiency PWM
Protection Rating (Solar Engine)	IP54 and IK10
EYECON Body Material	Medium density polyethylene (black or grey, UV stabilised) with steel stem support
Light Source	Surface mount Amber LEDs with narrow beam lenses
Daytime Light Output	14,000 cd/m²
Nighttime Light Output	100 cd/m² (with dynamic dimming)
Flash Rate	0.75 seconds, 50% duty cycle, 3 flashes per trigger
Radar Activation Ranges	Short 70M, Long Range 200M
Default Activation Setting	10 mph low / 90 mph High (customer selectable)
Protection Rating (EYECON)	IP54 and IK08
EYECON Dimensions	250mm x 250mm deep (body)
Autonomy (approx. days)	10-13 days (based on 4,000 triggers per day in December, varies by configuration)
Battery Lifespan (AGM)	8-12 years (anticipated)
Working Temperature	-40°C to 65°C
Total Weight (approx.)	Solar panel assembly: 10 Kg; EYECON inc. Cable: 5.2Kg; Battery pack/s: 5.6Kg

Installation & Maintenance

• Installation: Supplied complete with 76 or 89 post top mount or 114 offset bracket. Further information and installation requirements are available from IPL group. Can be installed with a rooted base.
• Maintenance: Designed for low maintenance and operational costs, operating all year round. The durable materials and AGM batteries provide long life. Periodic checks of batteries and cleaning of the solar panel are recommended.
