Product Overview

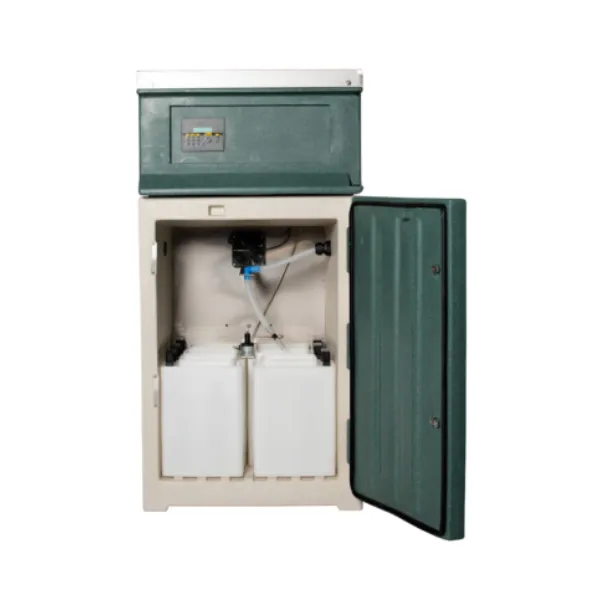

The Efcon Industrial Wastewater Sampler is a purpose-built unit for industrial end-users. It is designed to be simple and robust, capable of collecting samples from a well, canal, or pressure pipe using either a vacuum, in-line, or peristaltic sampling method. The unit features separate areas for sample storage, electronics, and a cooling area with extra-large (XXL) containers, making it suitable for demanding applications. The sampler can be controlled by either a Unitronics Jazz or a Vision 130 controller, allowing for flexibility in functionality.

Key Benefits

• Top quality wastewater sampler with a minimum of fragile parts.
• Patented, extremely robust, chemical resistant, and stable thermoplastic housing.
• Specially built for harsh environments (4-year warranty on the housing).
• Excellent cooling performance (2 to 5 degrees C) according to multiple European and Dutch standards (EN 16479, EN ISO 5667-3, and NEN 6600-1).
• Wide range of sampling principles available according to EN 16479, EN ISO 5667, and NEN 6600-1.
• Uses 24 VDC standard components for safe operation and easy worldwide service support.

Applications

• Sampling industrial wastewater from wells, canals, and pressure pipes.
• Suitable for industrial end-users requiring a robust, reliable sampler.

Features & Construction

• Sampling Methods: Can be equipped with vacuum, in-line, or peristaltic sampling methods.
• Housing: Extremely robust, chemical resistant, and stable thermoplastic.
• Cooling & Storage: Separate areas for sample storage, electronics, and a cooling area with XXL containers.
• Controller Options:
  • Unitronics Jazz: Used for all standard applications and can be prepared for BUS systems.
  • Unitronics Vision 130: Used for customised applications and can be adapted for Ethernet, data logging, open channel flowmeter, pump control, and more.
• Container Configurations: The cooled section can be fitted with the following container configurations:

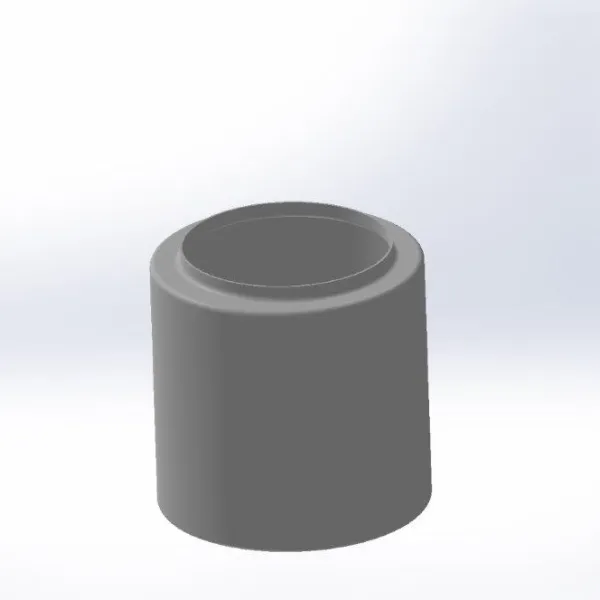

  • 1 x 60 litre

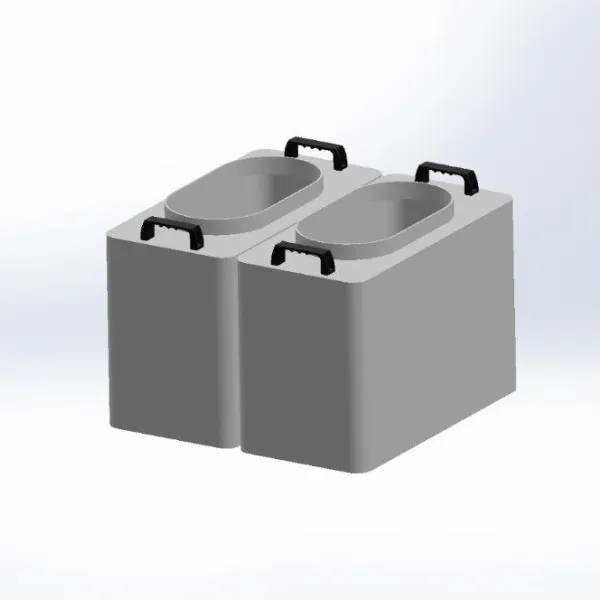

  • 2 x 55 litre

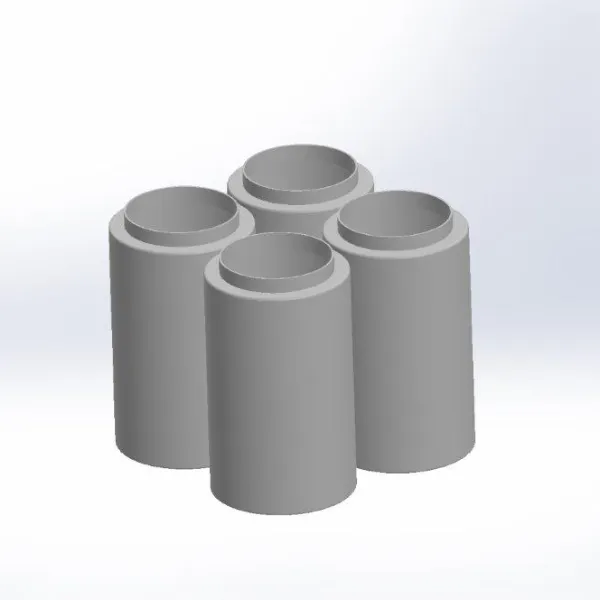

  • 4 x 30 litre

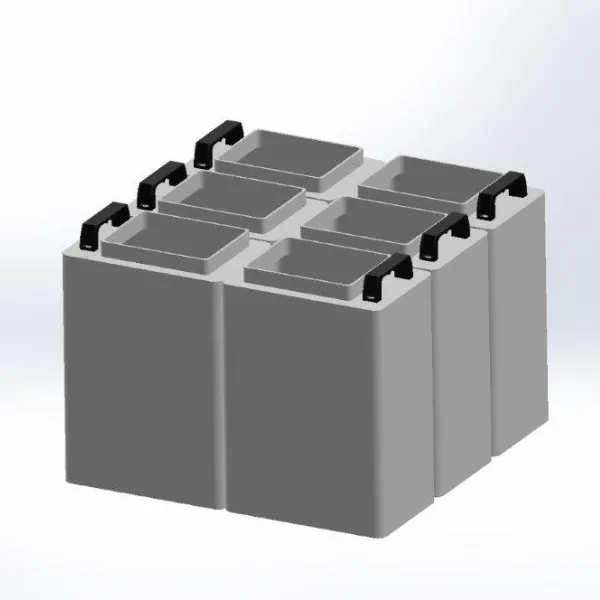

  • 6 x 18 litre

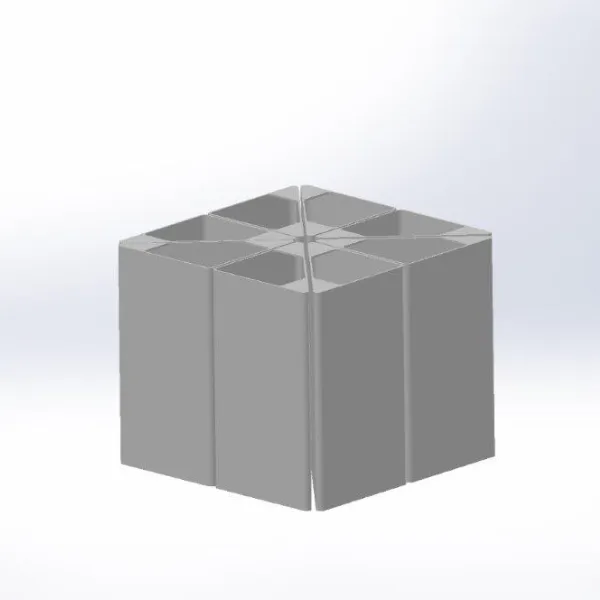

  • 8 x 15 litre

Technical Specifications

• Cooling Temperature: 2 to 5 degrees C.
• Power Components: 24 VDC standard components.
