Product Overview

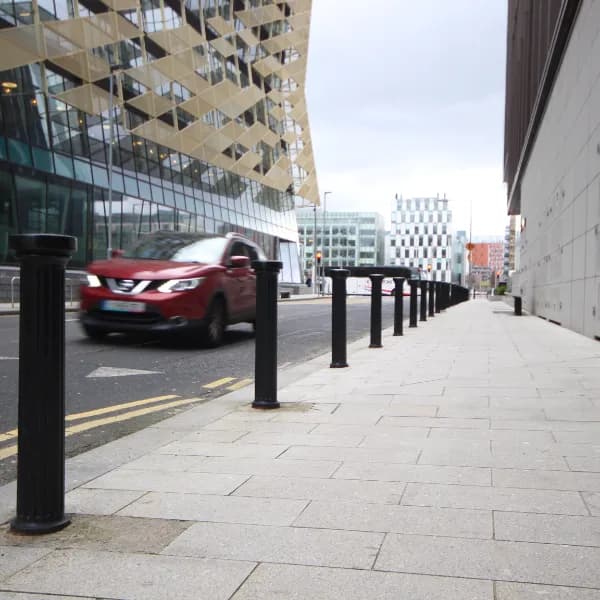

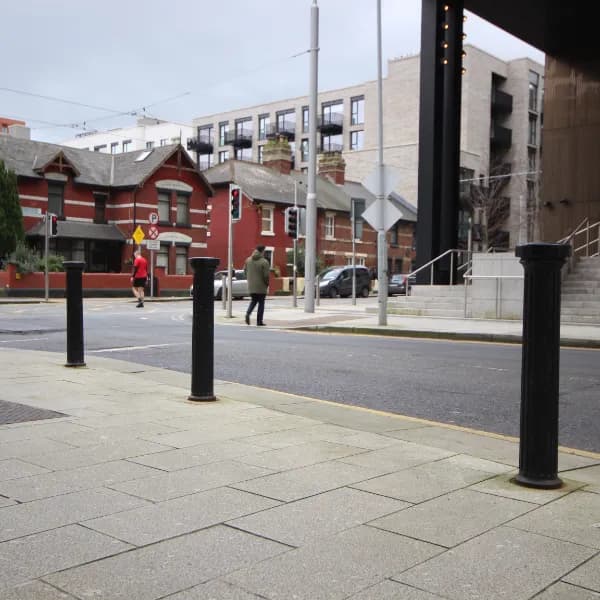

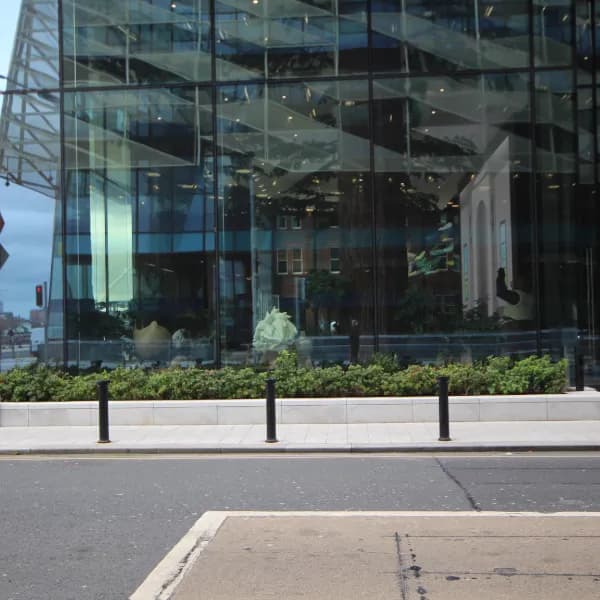

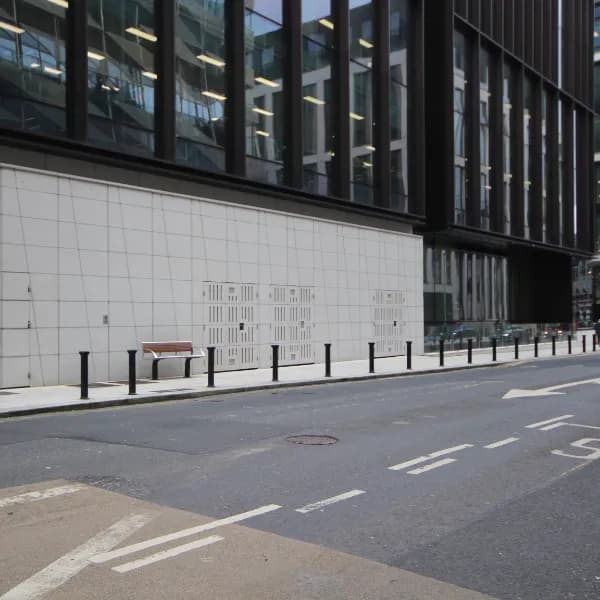

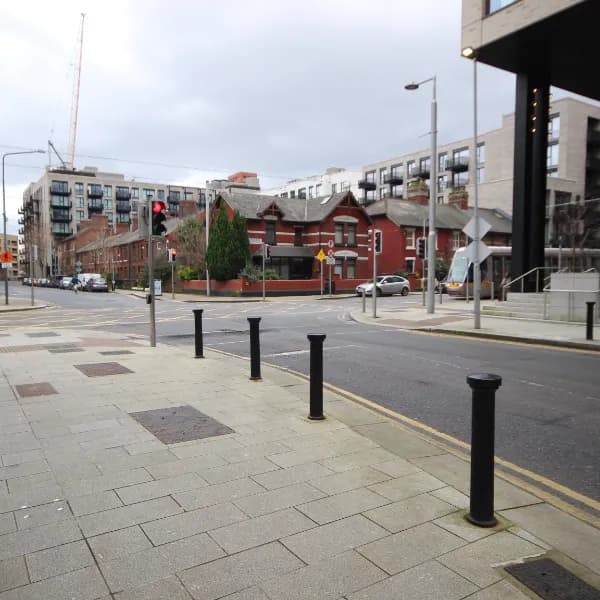

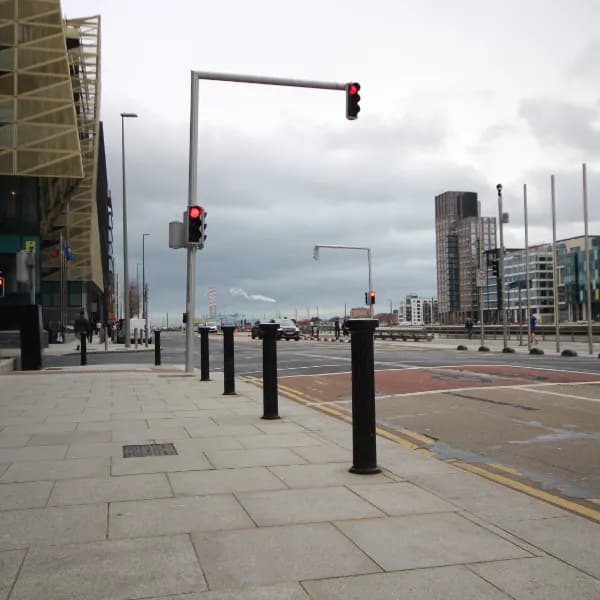

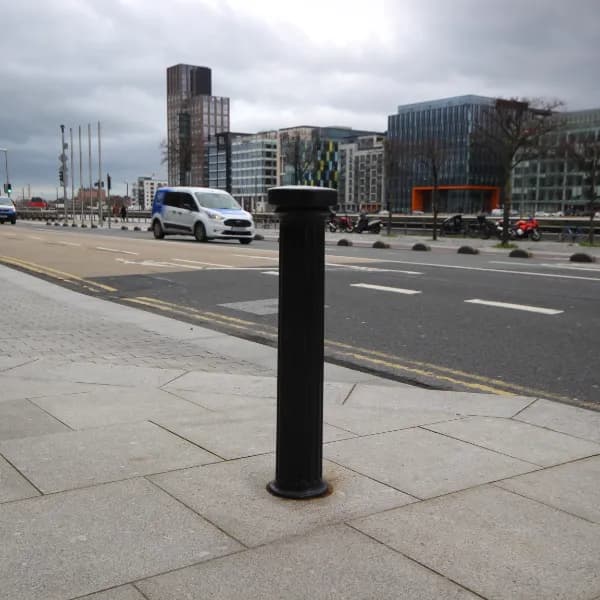

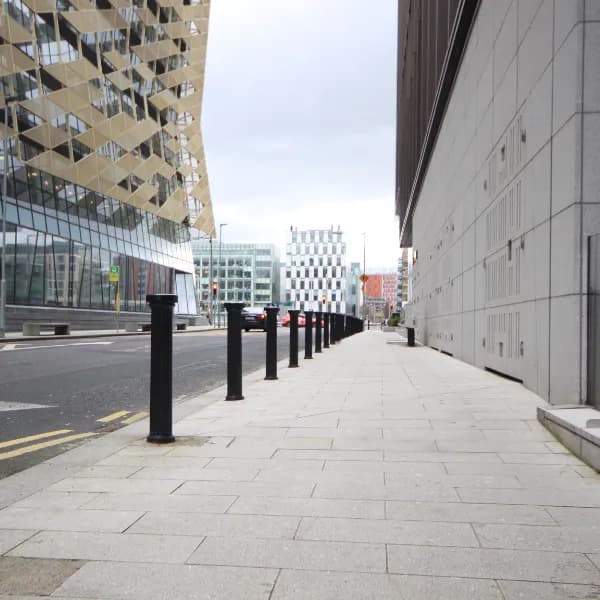

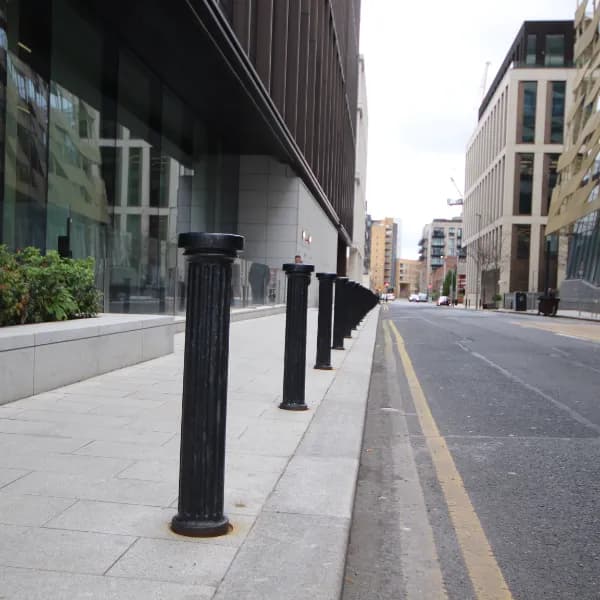

The Doric (Cast-Iron) Bollard, from the Boulevard Range by IPL group, is based on the classical Greek column, featuring decorative fluted sides and a shallow domed top. This solid cast-iron bollard has become an urban classic, immediately recognizable, and offers sturdy protection to pedestrians or property.

Key Benefits

• Classic Aesthetic Design: Inspired by classical Greek columns, it features decorative fluted sides and a shallow domed top, making it an immediately recognizable urban classic.
• Robust Protection: A solid cast-iron construction offers sturdy protection to pedestrians or property.
• Durable Material: Made from Grey Cast-Iron as standard, ensuring longevity and resistance to wear.
• Versatile Customisation: Available with RAL colour options and removable functionality to suit various project requirements.

Applications

The Doric (Cast-Iron) bollard is suitable for a range of urban and heritage applications, including:

• Providing sturdy protection for pedestrians or property in urban environments.
• Enhancing streetscapes with a classical aesthetic.
• Demarcating pedestrian areas or controlling access.
• Integrating with existing urban and heritage designs.

Features & Construction

• Material: Grey Cast-Iron as standard.
• Finish: Primer Coated Black.
• Features decorative fluted sides and a shallow domed top.
• Height (Above Ground): 920mm.
• Height (Below Ground / Root Depth): 325mm.
• Max Width: 180mm.
• Diameter (Top): Ø195mm (from diagram).
• Diameter (Middle): Ø130mm (from diagram).
• Diameter (Base): Ø150mm (from diagram).
• Root Diameter: Ø180mm (from diagram).

Customisation Options

• RAL colour options available on request.
• Removable options available.

Technical Specifications

Specification	Value
Height (Above Ground)	920mm
Height (Below Ground)	325mm
Max Width	180mm
Weight	55Kg
Material	Grey Cast-Iron
Finish	Primer Coated Black

Installation & Maintenance

• Installation: Typically root fixed. The foundation depth is usually the same as the root depth of the bollard (325mm). A minimum recommended foundation diameter is the root diameter (180mm) plus 200mm. Concrete mix to 25 newtons is recommended. Removable options are also available. Further advice is available from IPL group.
• Maintenance: The solid cast-iron construction and primer-coated black finish ensure durability and protection. Periodic inspection and cleaning are recommended.
