Product Overview

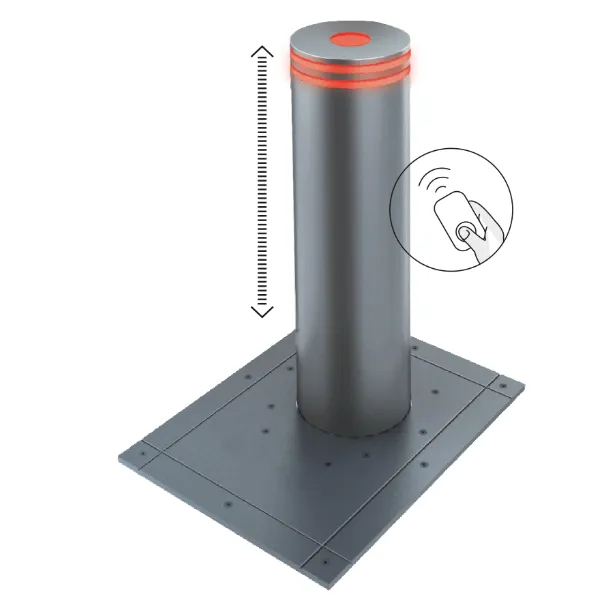

The Defender: Automatic Telescopic Bollard is a high-security bollard that has been rigorously impact tested to ASTM 2656-23 (M50 rating), successfully withstanding a 6,800 kg vehicle at 80 km/h (50 mph). This bollard achieved outstanding results, remaining operational even after being impacted by such a large vehicle. It is hydraulically operated and capable of performing a high number of operations per hour. The Defender can be integrated with existing and additional security measures, offering unrivalled protection globally. Designed for installation on public roads and security-critical applications such as government buildings, airports, tourist areas, and high traffic flow sites, the Defender range provides maximum protection with a sleek aesthetic. It is available in different heights above ground level: 900mm, 1000mm, and 1200mm. The bollard is supplied as standard in galvanised steel and matt black epoxy paint, and includes an RGBW LED crown that functions as a traffic light: green when lowered, flashing red when raised, and solid red when raised.

Key Benefits

• Certified according to PAS 68 and ASTM 2656-23 (M50 rating / K12).
• Successfully withstands a 6,800 kg vehicle at 80 km/h (50 mph).
• Remains operational after impact.
• Hydraulically operated for a high number of operations per hour.
• Integrates with existing and additional security measures.
• Offers unrivalled protection for public roads and security-critical applications.
• Sleek aesthetic with maximum protection.
• Includes an RGBW LED crown for traffic light functionality.

Applications

• Public roads.
• Government buildings.
• Airports.
• Tourist areas.
• High traffic flow sites.
• Any security-critical application requiring anti-terrorism protection.

Features & Construction

• Bollard Diameter: 275mm.
• Bollard Thickness: 25mm.
• Material: Galvanised steel and matt black epoxy paint (standard).
• Integrated RGBW LED crown for traffic light function (green when lowered, flashing red when raised, red when raised).

Technical Specifications

Property	HM5009	HM5010	HM5012
Height from Ground Level	900 mm	1000 mm	1200 mm
Bollard Diameter	275mm	275mm	275mm
Box Dimensions	784 x 650 x 1600 mm	784 x 650 x 1700 mm	784 x 650 x 1900 mm
Bollard Material	Steel with primer and epoxy paint	Steel with primer and epoxy paint	Steel with primer and epoxy paint
Motor Power	230V 50Hz or 380V 1000W (3,000RPM)	230V 50Hz or 380V 1000W (3,000RPM)	230V 50Hz or 380V 1000W (3,000RPM)
System	Hydraulic/Built-in	Hydraulic/Built-in	Hydraulic/Built-in
Temperature Range	-20°C to +80°C	-20°C to +80°C	-20°C to +80°C
IP Protection Rating	IP67	IP67	IP67
Working Frequency	2100 cycles/day	2100 cycles/day	2100 cycles/day
Ascent Time	6 seconds	6 seconds	6 seconds
Lowering Time	6 seconds	6 seconds	6 seconds
Control Panel	M50/P3	M50/P3	M50/P3
Impact Resistance Certification	ASTM 2656-23 M50 (K12)	ASTM 2656-23 M50 (K12)	ASTM 2656-23 M50 (K12)
Reflective Band	Optional	Optional	Optional
Lighted Crown Traffic Light Function	Optional	Optional	Optional

Installation & Maintenance

• Designed for installation on public roads and security-critical applications.
• Capable of performing a high number of operations per hour.
• Can be integrated with existing and additional security measures.
