Product Overview

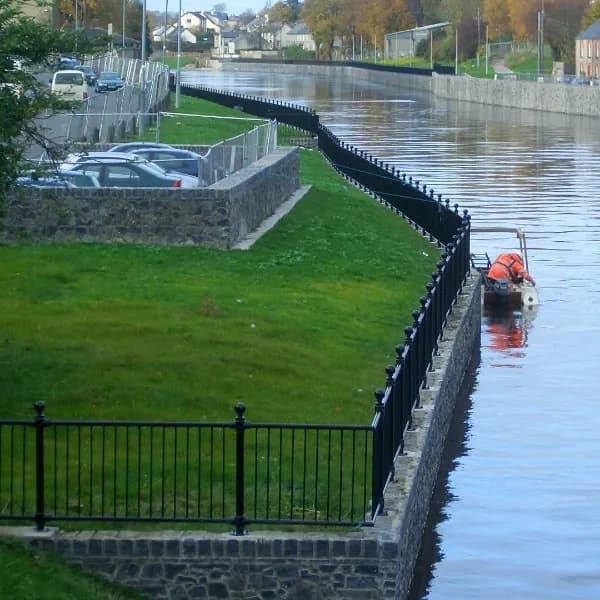

The Corrib Railing, from the Rivers street furniture range by IPL group, is a high-end, classic design railing perfect for enhancing both town and rural landscapes. Available in multiple configurations including full guard, ¾ guard, 2 bar, and 1 bar, this highly customisable railing combines strong galvanised steel posts with cast aluminium construction to provide robust and aesthetically pleasing boundary solutions. Its versatile design is suitable for new developments and upgrading existing streetscapes.

Key Benefits

• High-End, Highly Customisable Design: A sophisticated and adaptable railing, offered in various guard and bar configurations to suit diverse functional and aesthetic requirements, with extensive customization options.
• Durable Construction: Built with strong galvanised steel posts and cast aluminium, ensuring exceptional resilience against harsh weather conditions and a long service life.
• Flexible Installation Options: Can be specified for permanent ground-fixed installation, removable installation with an RS socket, or flange fixing for bolting onto paving or plinths, offering adaptability for any site.
• Low Maintenance: Features a standard black polyester powder-coated finish for robust protection against corrosion and minimal upkeep.
• Tailored Aesthetics: Offers extensive choices in tops and bases, along with various customer colour requirements, to seamlessly integrate with specific high-end design schemes.

Applications

The Corrib Railing is suitable for a wide range of applications, including:

• Town and city centre enhancements.
• Rural landscape integration.
• New developments and upgrades of existing streetscapes.
• Creating protective barriers and demarcation lines.
• Managing pedestrian flow in public spaces.

Features & Construction

• Strong galvanised steel post and cast aluminium construction.
• Standard black polyester powder-coated finish.

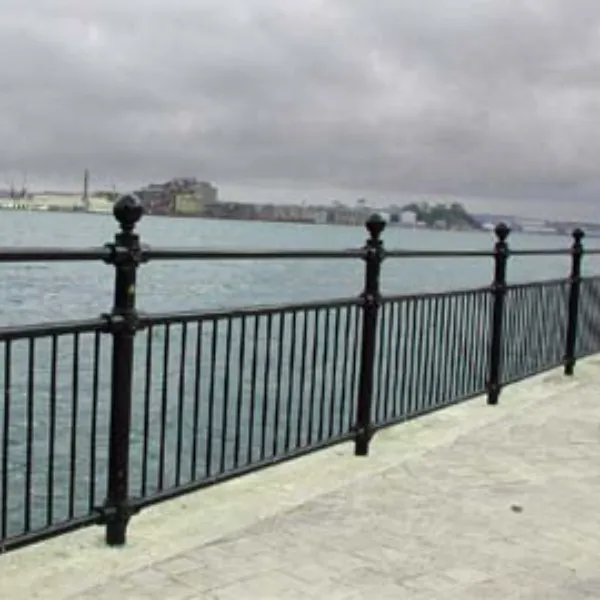

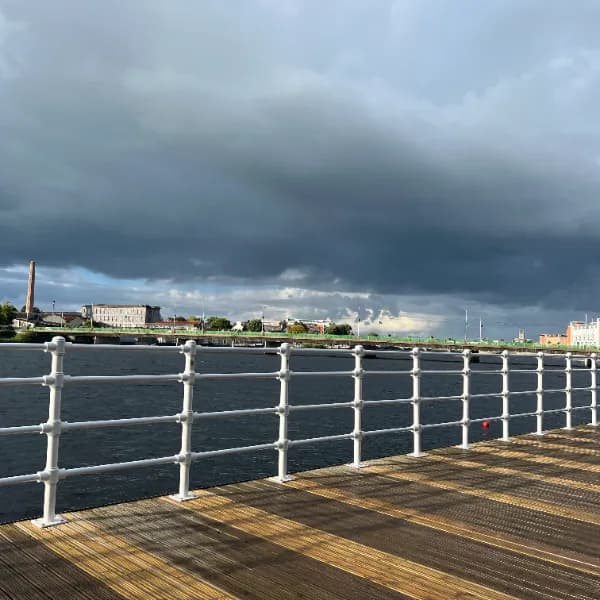

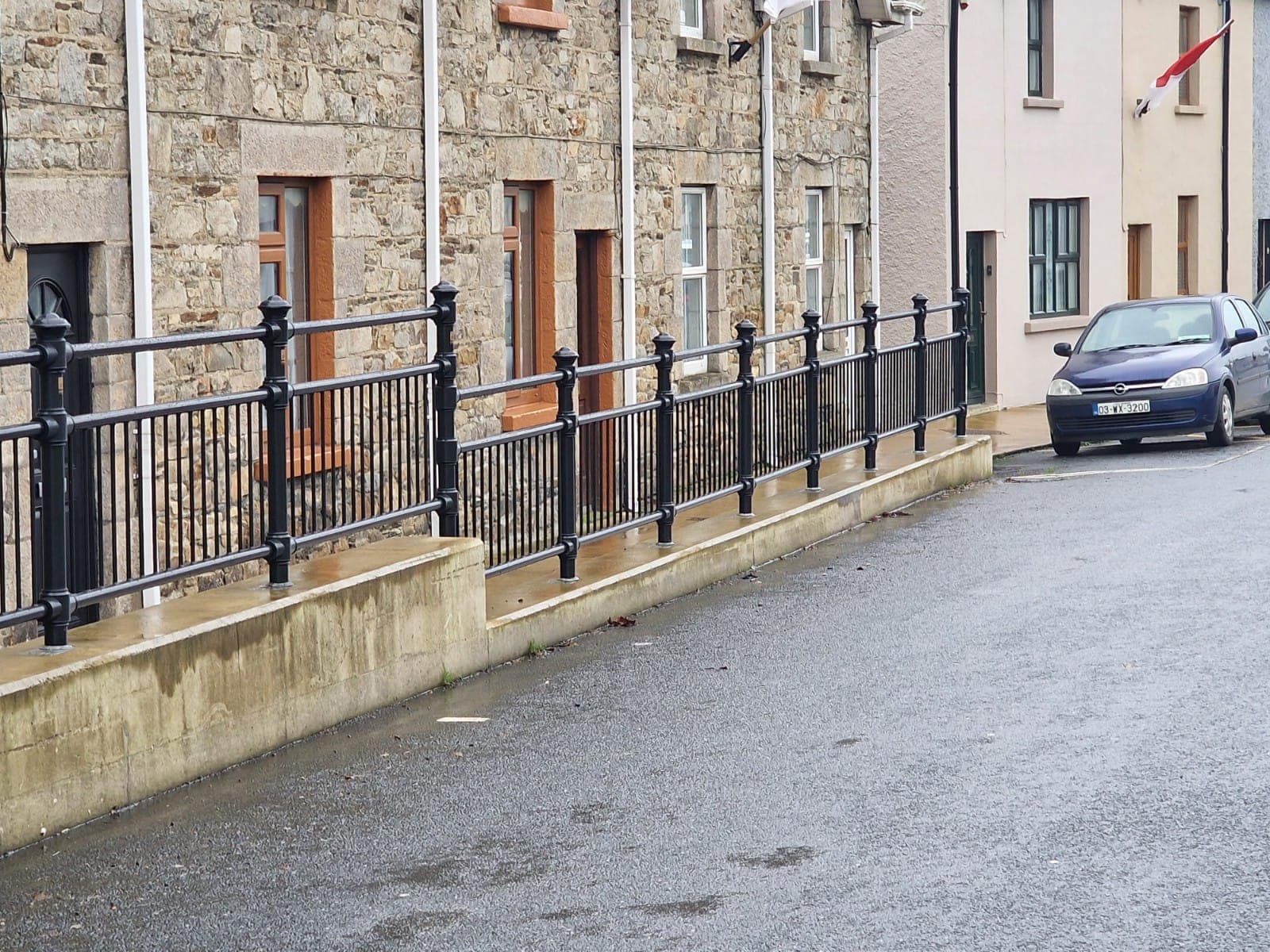

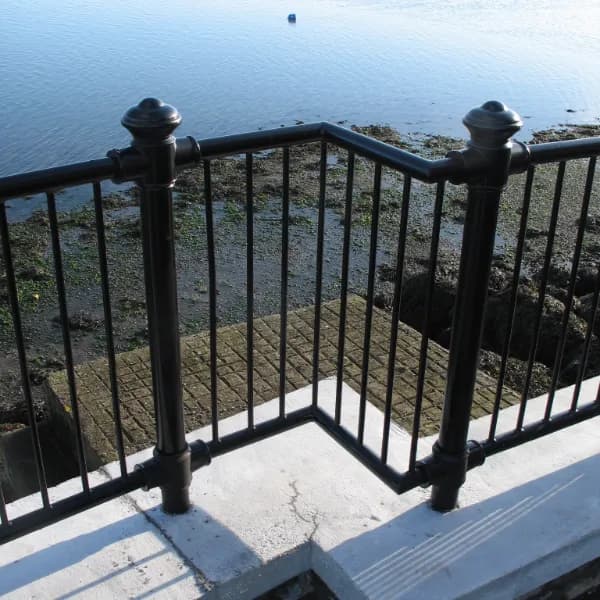

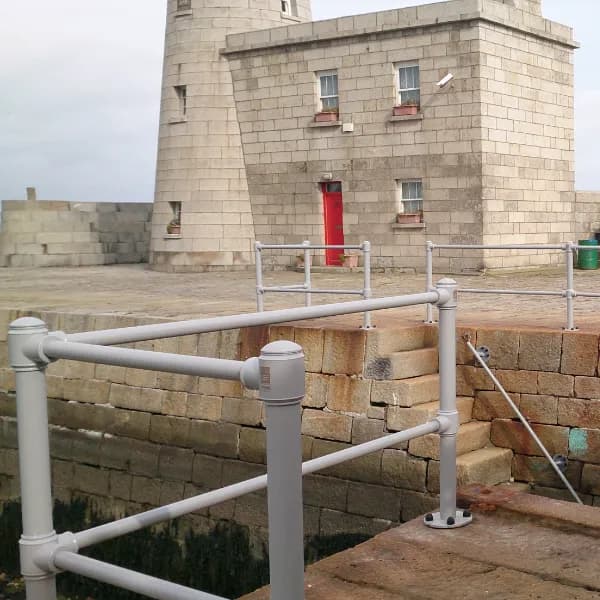

• Available in various configurations: full guard, ¾ guard, 2 bar, and 1 bar.
• Can be specified for ground-fixed or removable installation with an RS socket.
• Removable option compatible with the RS76x300 Retention System socket.
• Standard height (above ground) is 1000mm for full, ¾, and 2-bar configurations, and 350mm for the 1-bar configuration.
• Standard depth below ground is 300mm for all variants.
• Core post diameter of Ø76mm for all variants.
• Available in panel lengths of 2M, 1.5M, and 1M.

Customisation Options

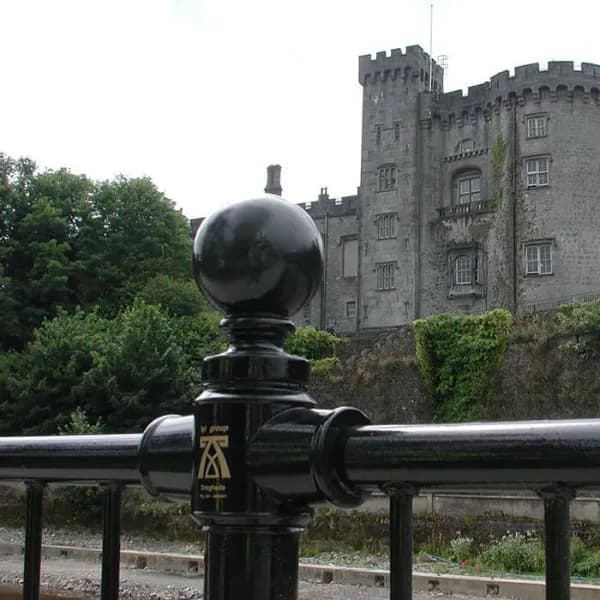

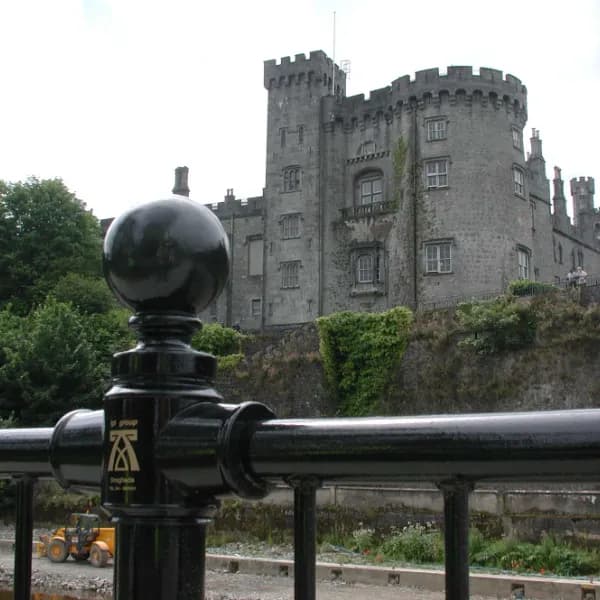

• Choice of tops and bases.
• 3M diamond grade reflective tape for increased visibility.

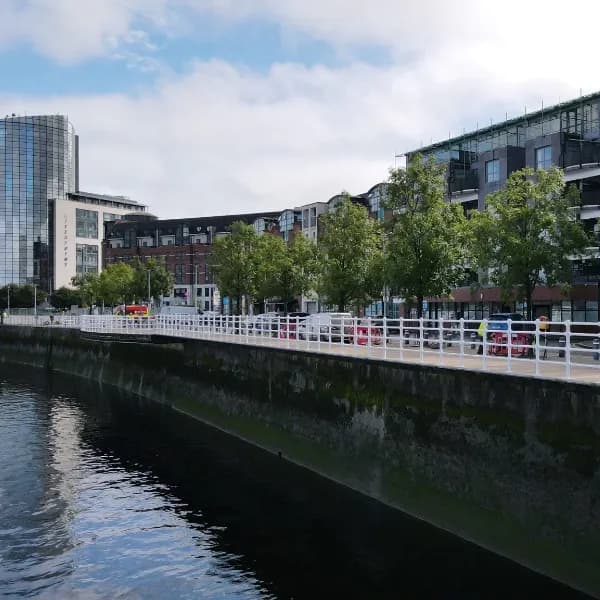

• Customer colour requirements to match specific project aesthetics.

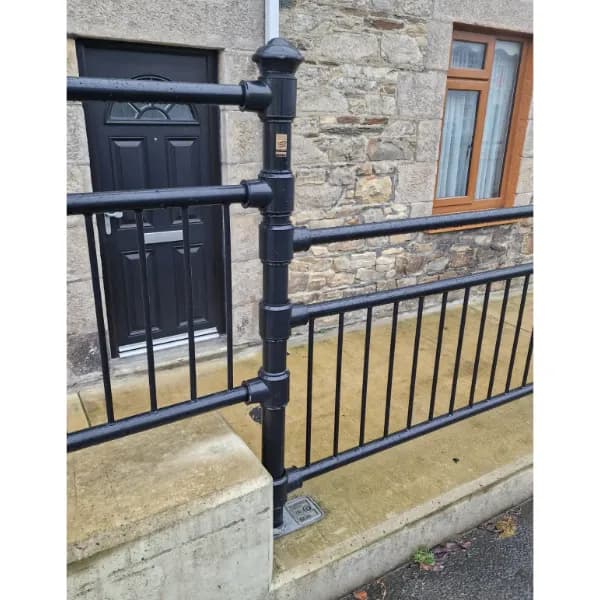

• Flange fixing option for bolting directly to paving or plinth.
• RS socket (for removable & locking option).

Technical Specifications

Installation & Maintenance

• Fixed Installation: Can be ground-fixed via direct burial to 300mm depth, or flange fixed for bolting to paving or a plinth.
• Removable Installation: Compatible with the RS76x300 Retention System socket, allowing for quick installation and removal. Specifying RS sockets anticipates expected installation demands, maintenance needs, and lifecycle flexibility.
• Maintenance: The strong galvanised steel and cast aluminium construction with polyester powder-coated finish ensures a durable, low-maintenance solution. Periodic inspection and cleaning are recommended. Further advice on the Retention System and Rivers street furniture, including specific installation requirements, is available from IPL group.
