Technical documents and specifications for this product.

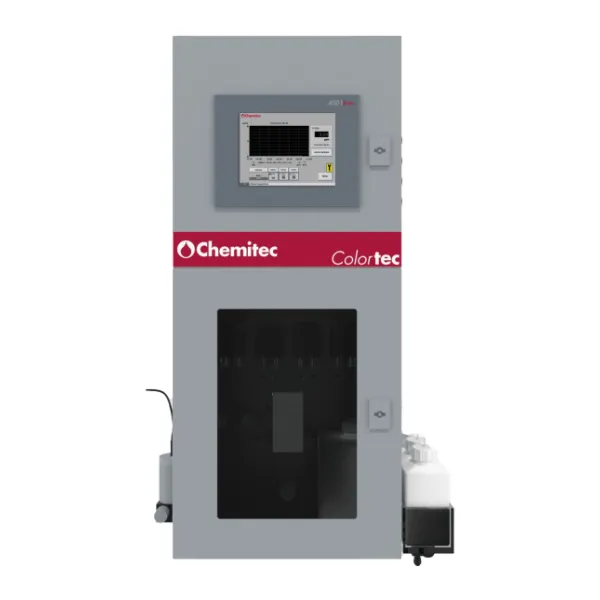

ColorTec Datasheet
COLORTEC is a photometric analyser designed for measuring chemical parameters in water. It features a touchscreen user interface and intuitive control software, allowing for measurements to be performed at programmed intervals, a specific time, or triggered by an external event. All measurements are archived and available in graphical form. The analyser is designed for connection to an existing LAN.
| Specification | Value |
|---|---|
| Photometric range | 2.5 Optical density |
| Accuracy | ± 3 % of the full scale |
| Repeatability | 90 % of the measure |
| Frequency of the analysis | Hourly or by step (20 minutes minimum). In reference by method |
| Turbidity of the sample | Max 10 FTU/NTU. For higher turb. it’s recommended to use the filtration syst. (optional) |
| Sample pressure | 0.1 to 0.3 Atm. stable (H₂O or air pressure) |
| H₂O or air pressure for filter washing | Max 6 atm on the entry of the washing valve |
| Measuring sensor | Standard Silicon sensor with 17-bit digital converter |
| Wave length | 445 to 800 nm with led |
| Light source | LED |
| Reading cell | Made of PIREX® Ø 16 mm |
| Mixer | Reaction Coil in thermostated Aluminium |
| Reactive dosage | Reaction Coil in thermostated Aluminium |
| Hydraulic system cleaning | Automatic washing with distilled H₂O |
| Visualization | LCD 8.4 colour display |
| Data insertion | Resistive TOUCH SCREEN |
| Computer CPU | NXP® i.MX6 DualLite ARM Cortex® A9 1GHz • integrated GPU 8GB eMMC |
| Archive | Circular, with date and value storage |
| Visualization of measures | Via SW it is possible to view the daily, weekly and / or monthly chart of all the archived measures |
| Data download | Possible via USB mass storage device |
| Set-Points | Two (2) ON-OFF programmable as min. or max. via SW |
| Output relay contacts | Max 2A 220V resistive load |
| Current output | 2 x 0/ 4…20 mA sample measure and Temperature (Load Maximum 500 ohm) |
| Serial interface | 1x RS485 DB 9M Communication with Internal Motherboard; 1x DB 15M (RS 232-422-485) modbus; 2 LAN Ports |
| Calibration | Manual with activation from menu. The coefficient “k” can be automatically determined by the instrument after making a measurement of known value |
| Calibration curve | Creation of the calibration curve using a table from 2 to 50 points in which it is possible to enter arbitrary values |
| Dimensions (L x H x P) | 1000 x 400 x 200 mm |
| Weight | 45 Kg |
| Power supply | 220 Vac 50 Hz (110Vac on request) |
