Product Overview

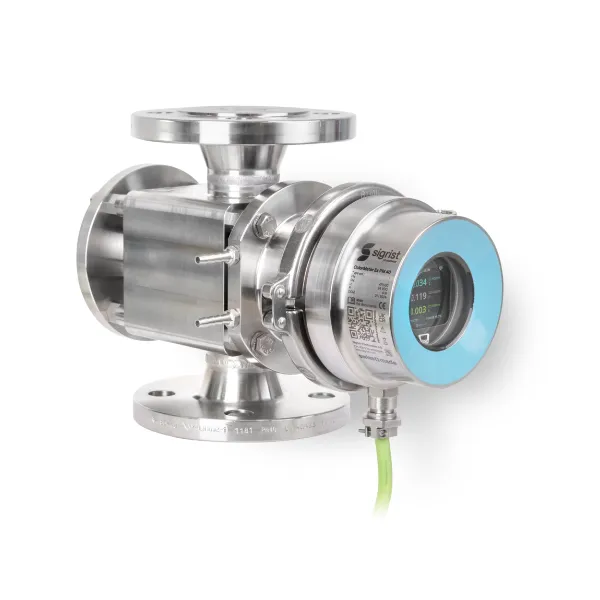

The ColorMeter Ex PM 40 is an in-line absorption measuring device designed for use in explosive atmospheres (Ex areas). It features an innovative, compact design that separates the transmitter (Sender) and reflector, eliminating the need for an electrical connection between the two parts. This simplifies installation, operation, and maintenance. The device offers high flexibility, customisable path lengths for optimum measurement range, and is capable of measuring up to three colours or wavelengths, making it a versatile tool for concentration and colour determination in various industries.

Key Benefits

• Certified for hazardous areas: Ex db IIC T3/T4/T5/T6 Ga/Gb (temperature class dependent on medium).
• Integrated Verification: Features an integrated, automatically swivelling control unit for device verification.
• Flexible Colour Measurement: Can measure up to three colours or wavelengths.
• Customisable: Individual path length adjustment is possible for optimal measurement range and sensitivity.
• High Pressure / Temperature: Can be supplied with special measuring cells to handle process media pressure up to 100 bar and includes an integrated cooling connection for high temperatures.

Applications

• Concentration determination during chemical processes.
• Colour measurement of mineral oils (ASTM, Saybolt).
• Colour measurement in chemical processes (APHA-Hazen).
• Colour measurement in spirits manufacturing and distilleries.
• Used in Petrochemical, Refinery, Chemical, and Spirits industries.

Features & Construction

• Measuring Principle: Absorption.
• Light Source: 1-3 configurable LEDs, wavelength range from 254 nm to 800 nm.
• Path Length: 3 mm to 160 mm.
• Pressure: Standard process pressure is 25 bar, with a maximum of 100 bar available depending on the measuring cell.
• Materials: Housing is made of Stainless Steel 1.4404 & 1.4462. Wetted parts are Stainless Steel 1.4404 & 1.4571, with Sapphire windows.
• Integrated Operation: Features an integrated display with a touchscreen, allowing simple operation directly or via a Point-to-Point connection to an Ex-protected smartphone or tablet.

Technical Specifications

Specification	Value
Measuring Range	0 ... 3 E (Extinction)
Resolution	0.001 E
Reproducibility	+/- 2% of measured value in E, min. +/- 0.01 E
Medium Temperature	-20 ... +195 degrees C
Ambient Temperature	-20 ... +60 degrees C
Protection Class	IP66
Power Supply	24 VDC +/- 10%

Interfaces

• Standard: 0/4 ... 20 mA and Modbus RTU.
• Digital: Ethernet LAN via PoE (Power over Ethernet), Profibus DP-V1 Slave, and Profinet IO.
• Operation: Operation via Proximity Sensor and Mobile Device via WLAN.
• Visualisation: Status information is visualised using colours.
