Product Overview

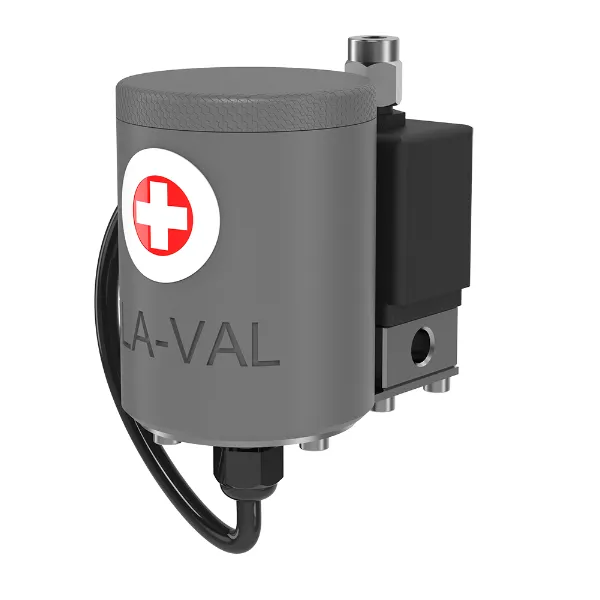

The CLA-VAL e-Timer-33: Electronic Autonomous Time Controller is an easy-to-use Swiss time valve controller. Its rugged construction makes it suitable for even the most demanding environments, including underwater applications. This controller allows for simple and fast programming to open and close CLA-VAL valves using user-definable rules. All software updates are free and available directly on the CLA-VAL website. The e-Timer-33 features a USB connection that plugs directly into a PC's USB port, providing instant access to e-Timer parameters and data through the CLA-VAL software. It is a simple and reliable device, designed with the latest technology and high-quality electronic components. The Printed Circuit Board (PCB) is fully tropical coated for maximum humidity protection, and electronic components are selected for low power consumption (less than 1 mA/h).

Key Benefits

• Simple and reliable operation.
• Rule-based CLA-VAL programmable time controller.
• User-friendly CLA-VAL Software with user-definable rules for fast and simple programming.
• Free software updates available directly from the CLA-VAL website.
• USB connection for instant access to parameters and data via PC.
• Rugged construction suitable for demanding environments, even underwater.
• Low power consumption (less than 1 mA/h).
• PCB is fully tropical coated for maximum humidity protection.

Applications

• Time and calendar-based control for opening and closing CLA-VAL valves.
• Suitable for CLA-VAL ECO 32-27 Flushing Valves, as an example of assembly.

Features & Construction

• Lithium battery: 9 VDC.
• Output: 1x 3-ways bistable solenoid 1.2 mm - 6 VDC.
• Rules: Up to 6 rules (for 3 opening/closing actions per day).
• Control based on Time & Calendar.
• Printed Circuit Board (PCB) designed with latest technology, high-quality electronic components, and tropical coating.

Technical Specifications

Specification	Value
Electrical Power	Lithium battery type 9 VDC
Battery Life	2 years for two actions/day at 20°C
Output Solenoid	1x 3-ways bistable solenoid 1.2 mm - 6 VDC
Programmable Rules	Up to 6 rules (for 3 opening/closing per day)
Control Parameters	Time & Calendar
Operating Pressure	0 bar to 16 bar
Temperature Range (Electronic only)	-10°C to +80°C
Temperature Range (Battery maximum)	60°C
Protection / Media	IP68 (Validated: 1 month 0.2 bar) / Drinking water
Interface	Plug & Play / Vista / Win 7 (32 & 64 bit)
Low Power Consumption	Less than 1 mA/h
Output Default Values	Apply at 7.2 V (Control battery troubleshooting)

Installation & Maintenance

• MEXUSB20401A cable is required for programming and monitoring.
• Easy to use, Swiss time valve controller.
• Troubleshooting includes output status modification without programmed rule changes.
