Product Overview

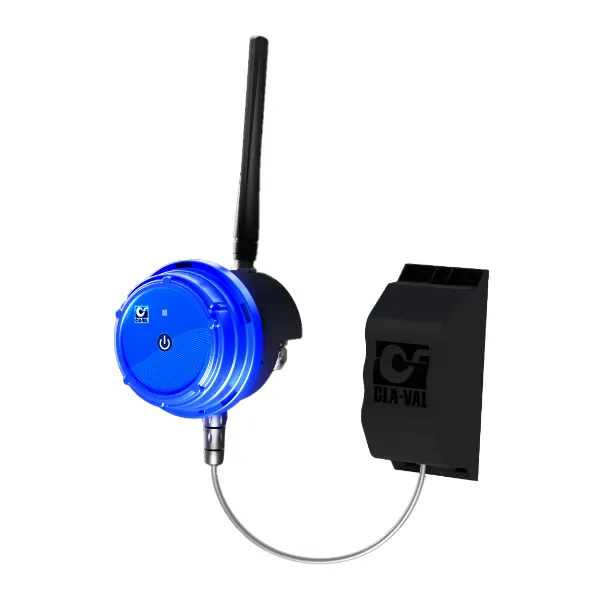

The CLA-VAL D35: Autonomous Electronic Valve Controller is an ultra-low-power electronic valve controller designed to switch one or two latching solenoids based on customizable conditions. It is ideal for controlling valves in locations without electrical energy or where an independent supply from grid power is required. The D35 offers quick and easy commissioning due to its compact and ergonomic design, along with a user-intuitive configuration. It can be configured wirelessly from any smartphone, tablet, or computer via auto-generated WiFi, eliminating the need for cables or special software. Its intuitive user interface provides easy configuration and real-time information. For streamlined deployment, product configurations can be saved and loaded across multiple devices. The CLA-VAL D35 controller comes pre-loaded with customizable condition scenarios suitable for a wide variety of applications, such as 2-stage pressure modulation or flushing valves. Its large internal memory allows for data logging over the product lifetime. Optionally, the D35 can implement data communication through the new generation 4G network (IoT optimized). It can be connected to a custom remote server or interfaced with the CLA-VAL Link2Valves platform for easy, security-proven, and complete integration with full remote configuration.

Key Benefits

• Ultra-low-power autonomous operation with standard 5-year autonomy.
• Controls one or two latching solenoids based on customizable conditions.
• Ideal for locations without electrical energy or requiring independent power.
• Quick and easy commissioning with compact, ergonomic design.
• Wireless configuration from any smartphone, tablet, or PC via auto-generated WiFi.
• No need for cables or special software for configuration.
• User-intuitive interface with real-time information.
• Configurable scenarios for diverse applications like 2-stage pressure modulation or flushing valves.
• Large internal memory (8 GB Micro-SD) for data logging over product lifetime.
• Optional data communication via 4G (LTE-M, NB-IoT) and 2G (GPRS) networks to custom servers or CLA-VAL Link2Valves platform.
• IP68 Protection for full immersion.

Applications

• Controlling valves in areas lacking electrical power.
• Applications requiring independent power supply.
• 2-stage pressure modulation.
• Flushing valves.
• Remote valve control and monitoring through custom servers or CLA-VAL Link2Valves platform.

Features & Construction

• Controls 2 latching solenoids (6 VDC).
• Control modes: Time, flow, level, and/or pressure.
• Inputs: 4x analog (Ratiometric/0-5V/0-10 V), 2x digital (dry contact or pulse).
• Outputs: 2x latching solenoids, 1x digital (dry contact or pulse).
• Logger & data storage: Configurable logging interval, 8 GB Micro-SD memory.
• User Interface: WiFi 802.11n/ac for local configuration, CLA-VAL Link2Valves for remote configuration.
• Data Communication (optional): 4G (LTE-M1, NB-IoT) and 2G (GPRS), Micro SIM card accessible, extendable antenna.
• Embedded Intelligence (optional): ValveFlow valve flowrate computation (requires CLA-VAL sensors).
• Housing Material: PC/ABS plastic UV resistant.
• Dimensions: Ø 132 mm x L 130 mm (no antenna, no bracket).
• Easy opening system without screws or tools.

Technical Specifications

Specification	Value
Power Supply	Internal replaceable lithium battery, Optional high-capacity lithium external battery, Optional external power supply (6-24 VDC) compatible with CLA-VAL e-Power MP turbine
Inputs (Analog)	4x (Ratiometric/0-5V/0-10 V)
Inputs (Digital)	2x (dry contact or pulse)
Outputs (Solenoids)	2x latching solenoids (6 VDC)
Outputs (Digital)	1x (dry contact or pulse)
Memory	8 GB Micro-SD
Local Configuration Communication	WiFi 802.11n/ac (auto-generated)
Remote Communication (Optional)	4G (LTE-M1, NB-IoT) and 2G (GPRS)
Dimensions (no antenna, no bracket)	Ø 132 mm x L 130 mm
Protection Rating	IP68 (2 m, 1 month)
Operating Temperature	-10°C to 70°C
Storage Temperature	-20°C to 80°C

Installation & Maintenance

• Quick and easy commissioning.
• User-intuitive configuration from smartphone, tablet, or PC via WiFi.
• Product configurations can be saved and loaded in multiple devices to ease deployment.
• Battery is internal and replaceable.
• Easy opening system for housing without screws or tools.
