Product Overview

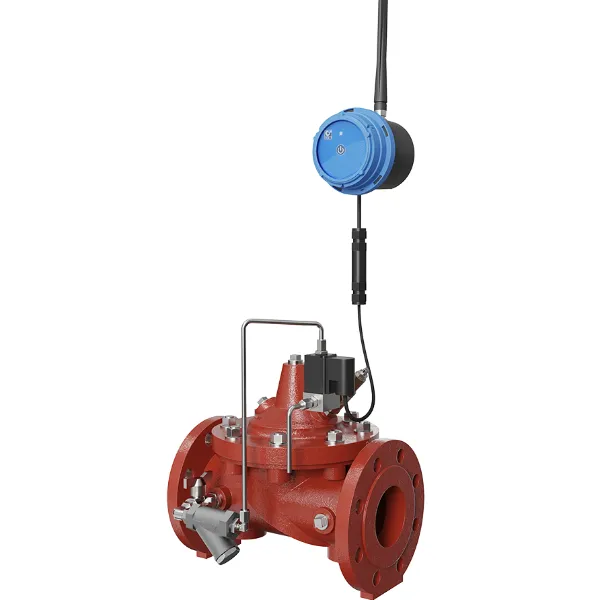

The CLA-VAL D35-136-01: On/Off Electrical Remote Control Valve with D35 Electronic Controller is designed to fully open or fully close the valve based on flow, time, and/or pressure conditions, or upon remote command. This valve is typically used for industrial applications such as controlling process water for batching, mixing, washing, or other on/off functions like flushing valves. When integrated with the CLA-VAL Link2Valves platform, it provides a plug & play, secure solution for remote valve monitoring and control. The CLA-VAL SERIES D35 operates a latching solenoid using a CLA-VAL D35 autonomous electronic valve controller, following predefined time, flow, level, and/or pressure rules, or remote commands. Optionally, the CLA-VAL SERIES D35 can communicate via 4G (LTE-M or NB-IoT) and 2G (GPRS) cellular networks for remote monitoring and control. It offers simple, reliable, and accurate operation, functioning completely automatically.

Key Benefits

• Simple, reliable and accurate operation.
• Completely automatic operation.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support available through the Link2Valves Platform.
• Automatic full open/close based on flow, time, pressure, or remote command.
• Plug & play secured remote valve monitoring and control solution when combined with Link2Valves platform.
• Optional communication through 4G and 2G cellular networks for remote monitoring and control.

Applications

• Industrial uses such as control of process water for batching, mixing, and washing.
• On/off applications, including flushing valves.
• Applications requiring remote valve monitoring and control.

Features & Construction

• Autonomous Electronic Valve Controller: D35.
• Operates a latching solenoid.
• Control based on predefined time, flow, level, and/or pressure rules, or remote command.
• Optional cellular communication (4G/LTE-M/NB-IoT and 2G/GPRS).
• Series: CLA-VAL SERIES D35.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• Easy adjustment and maintenance.
• Designed for industrial applications requiring precise on/off control.
