Product Overview

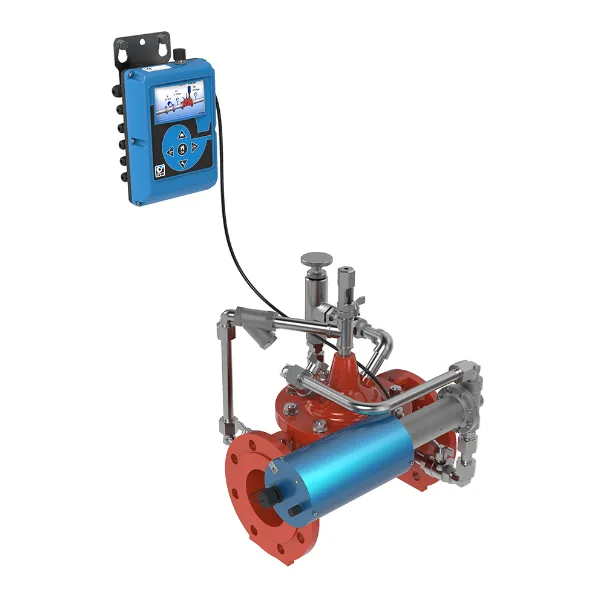

The CLA-VAL D22-138-L21/P9: Position Control Valve 4-20 mA / P9 with D22 Electronic Controller is a programmable control valve designed for direct acting opening/closing or regulating parameters such as pressure, flow, or reservoir level. The CLA-VAL CPC-34 motorized pilot, controlled by a 4-20 mA signal, manages the valve position using hydraulically assisted technology. Its regulation is customizable, following a fully user-programmable profile and rules. The P9 option provides an important manual override in case of power shut-off. As part of the CLA-VAL SERIES D22 programmable Control Valves, it automatically adjusts valve regulation according to customized, predefined rules. The combination of precise, field-proven, CLA-VAL electronically actuated hydraulic pilots and the CLA-VAL D22 Electronic Controller allows for advanced regulation while maintaining full hydraulic control. CLA-VAL SERIES D22 valves can connect to the CLA-VAL Link2Valves web platform for remote valve diagnostic and control. This valve offers simple, reliable, and accurate operation, contributes to system efficiency, and aids in pipe break prevention.

Key Benefits

• Simple, reliable and accurate operation.
• System efficiency and pipe break prevention.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support is available through the Link2Valves Platform.
• Programmable control for opening/closing or regulating pressure, flow, or level.
• Motorized Position Control Pilot (CPC-34) commanded by a 4-20 mA signal.
• Customizable regulation with user-programmable profiles and rules.
• P9 option provides manual override for power shut-off situations.
• Connects to CLA-VAL Link2Valves web platform for remote diagnostic and control.
• Combines electronic actuation with full hydraulic control for advanced regulation.

Applications

• Reservoir Management.
• Injection between networks.
• Blending.
• Flow control.
• Any application requiring precise, programmable regulation of pressure, flow, or level with remote capabilities and manual override.

Features & Construction

• Electronic Controller: D22.
• Motorized Position Control Pilot: CPC-34.
• Accepts 4-20 mA signal input.
• P9 Option: Manual override.
• Series: CLA-VAL SERIES D22.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• Easy adjustment and maintenance.
• For the best CLA-VAL regulation, it is recommended to combine this valve with the H-Strainer AQUA 90-501 and the "anti-shock" air release & vacuum break valve AQUA 70-516.
