Product Overview

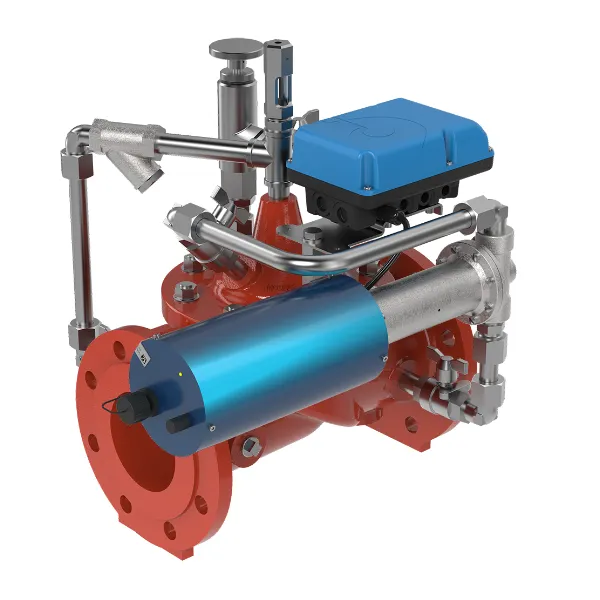

The CLA-VAL CPC 138-L21/P9: Position Control Valve 4-20 mA / P9 is designed as a direct-acting valve for opening/closing or regulating pressure, flow, or level. It allows for simple remote changing of the valve set-point via a 4-20 mA analog input, making it suitable for many applications where the process variable is monitored separately and a SCADA or similar remote control system provides valve control. The P9 option provides an important manual override in case of power shut-off. As part of the CLA-VAL SERIES CPC, these Electronic Actuated Pilot control Valves combine precise control of field-proven CLA-VAL hydraulic pilots with a simple electronically actuated motor. The CLA-VAL SERIES CPC valves include a hydraulic pilot and integral controller which accepts a remote set-point command input to make smooth adjustments to the pilot. It offers simple, reliable, and accurate operation, functioning completely automatically.

Key Benefits

• Simple, reliable and accurate operation.
• Completely automatic operation.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support is available.
• Direct-acting for opening/closing or regulating pressure, flow, or level.
• Remote set-point adjustment via 4-20 mA analog input.
• P9 option provides manual override in case of power shut-off.
• Combines precise hydraulic pilot control with electronic actuation.

Applications

• Reservoir Management.
• Injection between networks.
• Blending.
• Flow control.
• Applications requiring remote and precise control of pressure, flow, or level with a manual override capability.

Features & Construction

• Actuated Hydraulic Pilot: CPC-34.
• Accepts 4-20 mA analog input for remote set-point.
• Includes integral controller.
• P9 Option: Manual override.
• Series: CLA-VAL SERIES CPC.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• Easy adjustment and maintenance.
• For the best CLA-VAL regulation, it is recommended to combine this valve with the H-Strainer AQUA 90-501.
