Product Overview

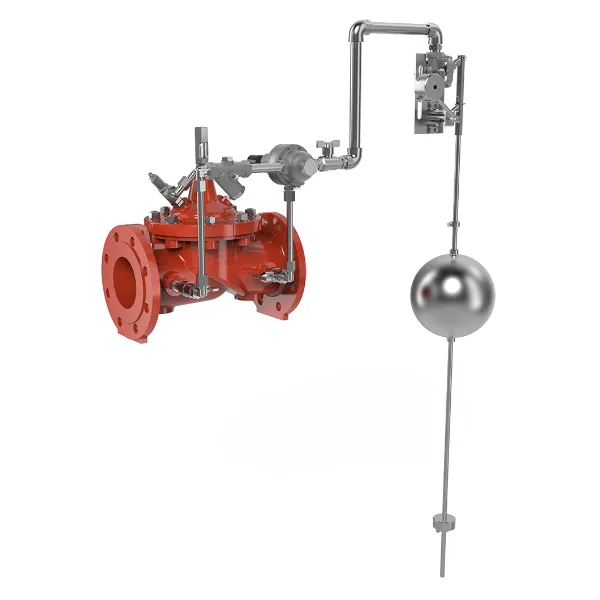

The CLA-VAL 90-CF9: Pressure Reducing Valve with On/Off Level Control is designed to reduce a high inlet pressure (P1) and to open fully (On) when the liquid level reaches a preset low level, and close drip tight (Off) when the level reaches a preset high level. An orifice is mounted on the outlet of the valve to prevent any cavitation and to control flow rate. As part of the CLA-VAL SERIES 90, this valve reduces a higher inlet pressure to a constant downstream pressure (Pressure Reducing Control) regardless of changing flow rate and/or varying inlet pressure. It offers completely automatic, simple, reliable, and accurate operation.

Key Benefits

• Automated Pressure & Level Control: Simultaneously reduces high inlet pressure to a constant downstream pressure and provides automatic On/Off control based on liquid levels.
• Cavitation Prevention: Includes an orifice mounted on the outlet that prevents cavitation and controls flow rate.
• High Accuracy: Delivers precise control, holding downstream pressure to a predetermined limit and ensuring accurate flow management.
• Fully Automatic Operation: Provides completely automatic, simple, reliable, and accurate performance without constant manual intervention.
• Quality Approved Materials: Manufactured with quality-approved materials, ensuring durability and long service life.

Applications

The CLA-VAL 90-CF9 is suitable for various water distribution and management systems requiring both pressure reduction and automated level control:

• Water systems designed to reduce high inlet pressure and control liquid levels in tanks.
• Applications where automatic tank filling or draining based on preset levels is required.
• Systems needing to prevent cavitation while maintaining controlled flow.

Features & Construction

• Pressure Reducing Control: CRA.
• 2-Way On/Off Level Control: CF9.
• Includes an orifice mounted on the outlet to prevent cavitation and control flow rate.
• Series: CLA-VAL SERIES 90.

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to your valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect your valve with upgraded materials.
• Recommended Assembly: Can be combined with an H-Strainer AQUA 90-501 and a float stilling well for optimal regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 90
Model	90-CF9
Function	Pressure Reducing Valve with On/Off Level Control
Pressure Reducing Control Model	CRA
Level Control Model	2-Way On/Off (CF9)
Connecting Pipe Internal Diameter	20 mm
Connecting Pipe Slope	min. 2%

Installation & Maintenance

• Installation: The CLA-VAL 90-CF9 is typically installed to reduce a high pressure and to open fully when the liquid level reaches a preset low level, and close drip tight when the level reaches a preset high level. The Float Control may be installed at any elevation, provided P1 (pressure expressed in length) is greater than D (depth). The connecting pipe should have a minimum internal diameter of 20mm and a minimum slope of 2%.
• Maintenance: Periodic maintenance checks are recommended to ensure optimal performance. The valve's design with quality-approved materials contributes to its durability and long service life.
