Product Overview

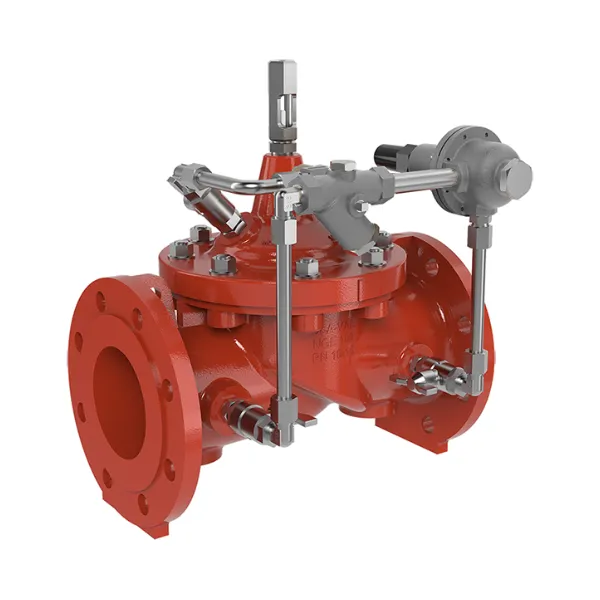

The CLA-VAL 90-01: Pressure Reducing Valve is an accurate, pilot-operated regulator that automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure. It is designed to hold downstream pressure to a pre-determined limit, with the main valve and pilot valve closing drip-tight when downstream pressure exceeds this setting. An optional check feature can be added to prevent return flow if a pressure reversal occurs. Part of the CLA-VAL SERIES 90, it offers sensitive and accurate pressure control with easy adjustment and maintenance. It is a simple, reliable, and accurate valve, ensuring completely automatic operation.

Key Benefits

• Sensitive & Accurate Pressure Control: Automatically reduces higher inlet pressure to a steady lower downstream pressure, ensuring precise regulation regardless of changing conditions.
• Reliable Drip-Tight Closure: Main valve and pilot valve close drip-tight when downstream pressure exceeds the preset limit.
• Optional Check Feature: Prevents reverse flow in case of pressure reversal, enhancing system protection.
• Fully Supported Frictionless Diaphragm: Ensures smooth operation and durability.
• Easy Adjustment & Maintenance: Designed for straightforward functionality, offering easy adjustment and maintenance.
• Wide Application Scope: Suitable for various pressure reducing valve stations, including those using multiple valves in parallel to handle high flows and low flows.

Applications

The CLA-VAL 90-01 Pressure Reducing Valve is ideal for a variety of water distribution systems requiring precise and reliable pressure reduction:

• Main pressure reducing valve stations.
• Installations where higher inlet pressure needs to be reduced to a steady lower downstream pressure.
• Applications requiring protection against pressure reversal.

Features & Construction

• Pilot-operated regulator design.
• Main Valve: 100-01 Hytrol Main Valve.
• Includes X58 Restriction Fitting and CRD Pressure Reducing Control.
• Optional Check Feature.

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to your valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect your valve with upgraded materials.
• Recommended Assembly: Can be combined with an H-Strainer AQUA 90-501 and "anti-shock" air release & vacuum break valve AQUA 70-516 for optimal regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 90
Model	90-01
Function	Pressure Reducing Valve
Main Valve Model	100-01 Hytrol Main Valve
Pressure Reducing Control Model	CRD
Sizes Available	R 1/2" - 3/4" - 1" - 1 1/4" - 1 1/2" - 2"

Installation & Maintenance

• Installation: The CLA-VAL 90-01 is designed to hold downstream pressure to a pre-determined limit. It can be installed as part of a typical pressure reducing valve station, even using two valves in parallel for wide ranges of flow rates. It is recommended to select the appropriate size valve to handle the pump output at an acceptable head loss, avoiding oversizing. A downstream pressure relief valve is recommended for this type of application.
• Maintenance: Periodic cleaning of the strainer (if part of assembly) is recommended. The needle valve should be open ½ to 1 turn. System valves should be open upstream and downstream, and air removed from the main valve cover and pilot system at all high points.
