Product Overview

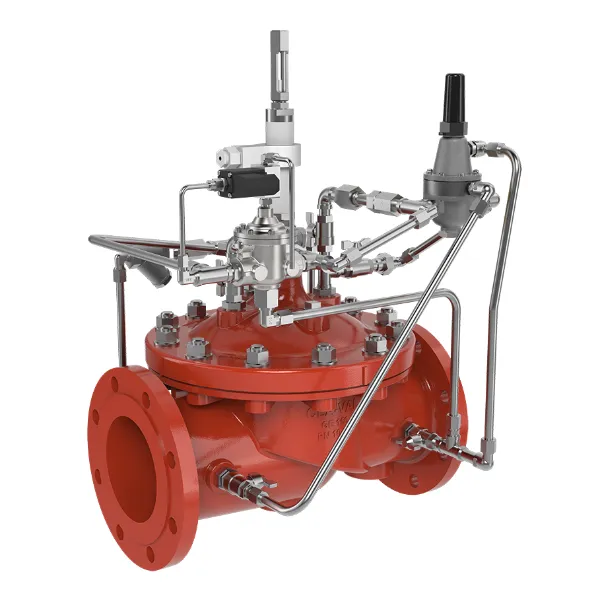

The CLA-VAL 60-31/72: Pump Control Valve with Controlled Opening/Closing Speed, part of the CLA-VAL SERIES 60, is a pilot-operated valve designed for installation on the discharge of pumps. It effectively prevents pipeline surges caused by the starting and stopping of pumps, ensuring smooth and safe system operation. This valve's solenoid control gradually opens the valve to prevent pump surge during startup and closes it gradually upon shut-off signal. In case of a power failure, the valve closes fast to protect the pump from dangerous surges. It also features an Auxiliary 3-way Valve that keeps the valve in a closed position when the pump is off, and a Switch Assembly that shuts the pump off when the valve is fully closed.

Key Benefits

• Controlled Opening/Closing Speeds: Solenoid control gradually opens the valve to prevent pump surge during startup and closes it gradually upon shut-off, ensuring smooth transitions.
• Surge Prevention: Effectively prevents pipeline surges caused by starting and stopping of pumps, protecting the system from damaging pressure fluctuations.
• Fast Closure on Power Failure: Closes rapidly in case of a power failure to protect the pump from dangerous surges.
• Automatic & Reliable Operation: Provides completely automatic, simple, reliable, and accurate performance for pump control.
• Pump Protection: Designed to protect the pump from surges and reverse flow with its integrated check valve and control mechanisms.
• SCADA Integration: Can be integrated with SCADA systems when controlled by the PC-22D Electronic Pump Control Panel, offering advanced monitoring and control.

Applications

The CLA-VAL 60-31/72 Pump Control Valve is essential for protecting pumping systems and ensuring controlled operations in various water distribution and industrial applications:

• Installation on the discharge of pumps to prevent pipeline surges.
• Systems requiring controlled pump start-up and shut-down sequences.
• Protecting pumps during power failures and other abrupt shutdowns.

Features & Construction

• Pilot-operated valve design.
• Auxiliary 3-way Valve (keeps valve closed when pump is off).
• Solenoid Control (311-D) for gradual opening and closing.
• Check Valve (CDC-1).
• Differential Pressure Control: CDHS-2BP.
• Switch Assembly (X105-M) for pump shut-off.

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to your valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect your valve with upgraded materials.
• Recommended Assembly: Can be combined with a Surge Anticipator and Pressure Relief Valve (CLA-VAL 52-03) to dissipate surge pressures, and other system products for optimal CLA-VAL regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 60
Function	Pump Control Valve with Controlled Opening/Closing Speed
Switch Assembly Model	X105-M
3-Way Solenoid Valve Model	311-D
Check Valve Model	CDC-1
Differential Pressure Control Model	CDHS-2BP

Installation & Maintenance

• Installation: Designed for installation on the discharge of pumps to prevent pipeline surges. The valve should be installed as shown in typical assembly diagrams.
• Maintenance: Periodic maintenance checks are recommended. The robust construction and quality-approved materials contribute to a low-maintenance design. Provisions should be made for the disposal of water discharged from the solenoid exhaust port each time the valve opens or closes.
