Product Overview

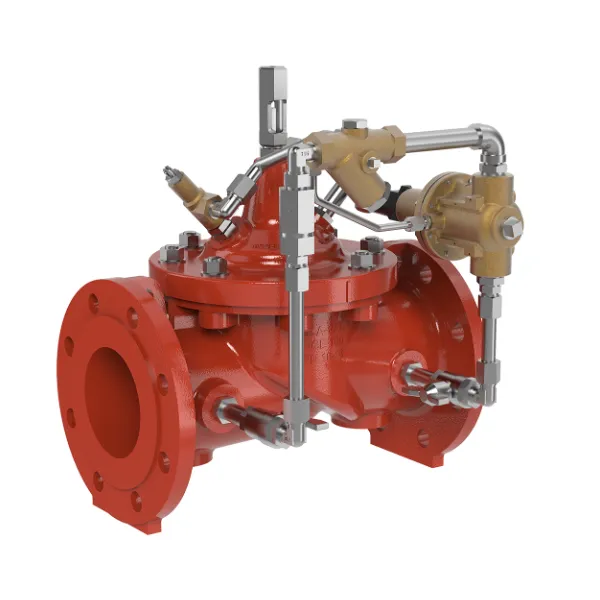

The CLA-VAL 50-CF9: Pressure Sustaining Valve with On/Off Level Control is typically installed upstream a tank. This valve is designed to open when the liquid level reaches a preset low level, but it uniquely maintains a constant upstream pressure to prevent "robbing" of the upper zone's pressure. Therefore, the tank is filled only when upper zone demand is low enough (i.e., high upstream pressure) to allow the valve to open. As part of the CLA-VAL SERIES 50, it also functions as a sustaining valve, accurately maintaining a minimum preset inlet pressure regardless of changing flow rate. It offers completely automatic, simple, reliable, and accurate operation.

Key Benefits

• Automated Tank Filling: Opens and closes based on preset liquid levels, ensuring efficient and automated tank filling.
• Upstream Pressure Protection: Maintains a constant upstream pressure, preventing "robbing" of pressure in higher zones.
• Optimised Filling Conditions: Fills the tank only when upstream conditions are favorable (low upper zone demand), optimizing system efficiency.
• Simple & Reliable: Designed for straightforward functionality, offering reliable and accurate performance with completely automatic operation.
• Quality Approved Materials: Manufactured with quality-approved materials, ensuring durability and long service life.

Applications

The CLA-VAL 50-CF9 is ideal for tank filling applications in water distribution systems, especially where upstream pressure management and efficient level control are critical:

• Tank filling operations in water distribution networks.
• Applications requiring precise control over liquid levels in reservoirs or storage tanks.
• Systems where maintaining upstream pressure is crucial during filling cycles.

Features & Construction

• Pressure Sustaining Valve with On/Off Level Control.
• Standard components include Pressure Relief Control (CRL) and 2-Way On/Off Level Control (CF9).
• Designed to open when liquid level is low and close drip-tight when a high level is reached.
• Maintains constant upstream pressure.
• Series: CLA-VAL SERIES 50.

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to the valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect the valve with upgraded materials.
• Recommended Assembly: Can be combined with an H-Strainer AQUA 90-501 and "anti-shock" air release & vacuum break valve AQUA 70-516 for optimal regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 50
Function	Pressure Sustaining Valve with On/Off Level Control
Pressure Relief Control Model	CRL
Level Control Model	2-Way On/Off (CF9)
Connecting Pipe Internal Diameter	20 mm
Connecting Pipe Slope	min. 2%

Installation & Maintenance

• Installation: Typically installed upstream a tank. The Float Control may be installed at any elevation, provided P1 (pressure expressed in length) is greater than D (depth). The connecting pipe should have a minimum internal diameter of 20mm and a minimum slope of 2%.
• Maintenance: Periodic maintenance checks are recommended to ensure optimal performance. The valve's design with quality-approved materials contributes to its durability and long service life.
