Product Overview

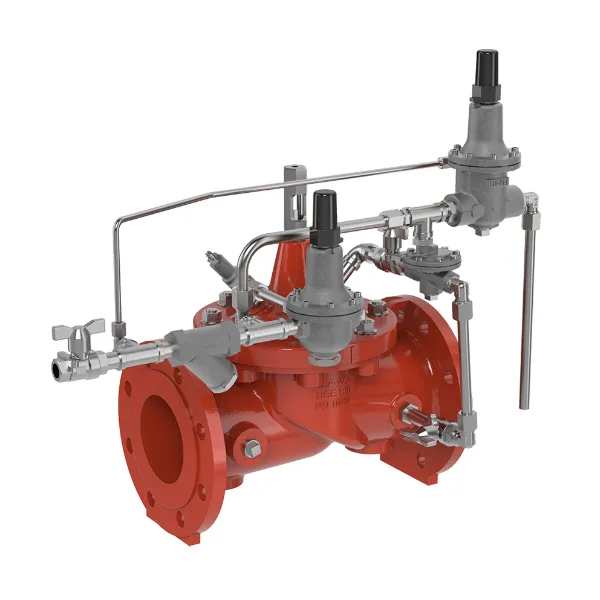

The CLA-VAL 50-55F: Pressure Relief Valve with High Opening Speed and Progressive Closing Speed is typically installed in a main line bypass to discharge any overpressure produced during the starting or stopping of pumps. While gradual pump operations do not cause surges, abrupt pump shutdowns, such as during an electric power failure, can generate dangerous surges that lead to severe equipment damage. This valve effectively damps such overpressure and prevents additional surge build-up through its controlled closure. As part of the CLA-VAL SERIES 50, it also accurately maintains a minimum preset inlet pressure (Sustaining Service) regardless of changing flow rates and opens fast to dissipate excess system pressure.

Key Benefits

• Comprehensive Surge Protection: Effectively damps overpressure and prevents additional surge build-up through its controlled closure, protecting equipment from dangerous surges caused by abrupt pump shutdowns.
• Fast Opening & Progressive Closing: Features a high opening speed to rapidly dissipate excess system pressure and a progressive closing speed for controlled flow reduction.
• Pressure Sustaining Capability: Accurately maintains a minimum preset inlet pressure, contributing to system stability.
• Automatic Operation: Provides completely automatic, simple, reliable, and accurate performance.
• Quality Approved Materials: Manufactured with quality-approved materials, ensuring durability and long service life.

Applications

The CLA-VAL 50-55F is primarily used in pumping systems for critical pressure management and surge protection:

• Installation in a main line bypass for overpressure discharge during pump operations.
• Protection against high pressure surges, especially those caused by power failures and abrupt pump stops.
• Applications where controlled closure and rapid pressure relief are essential.

Features & Construction

• Closing speed control: CRD-R.
• Pressure relief control: CRL-7.
• Fast opening feature.
• Series: CLA-VAL SERIES 50.

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to the valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect the valve with upgraded materials.
• Recommended Assembly: Can be combined with an H-Strainer AQUA 90-501 and "anti-shock" air release & vacuum break valve AQUA 70-516 for optimal regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 50
Function	Pressure Relief Valve with High Opening Speed and Progressive Closing Speed
Closing Speed Control Model	CRD-R
Pressure Relief Control Model	CRL-7
Additional Feature	Fast opening

Installation & Maintenance

• Installation: Typically installed in a main line bypass. Proper installation ensures that it discharges any overpressure produced during pump starting or stopping.
• Maintenance: Periodic maintenance checks are recommended. The valve's design with quality-approved materials contributes to its durability and long service life, reducing ongoing maintenance requirements.
