Product Overview

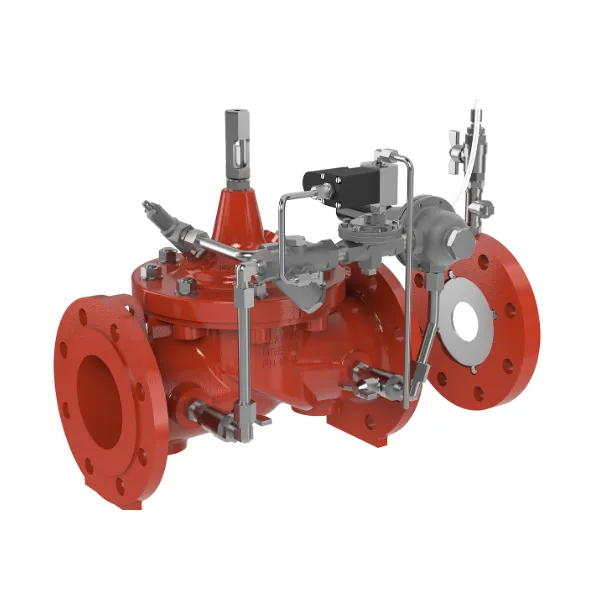

The CLA-VAL 43E/D-01: Flow Control Valve with Solenoid Shut-Off is designed to deliver a constant flow while opening or closing remotely. This advanced valve's solenoid can be activated by an electrical signal from a timer or programmer, such as e-Smart/L1. It is also uniquely employed to significantly increase flow in a downstream area when a fire occurs, demonstrating its critical role in safety systems. As part of the CLA-VAL SERIES 40, this valve accurately limits excessive flow to a preselected maximum rate (Flow Control) regardless of changes in pressure or varying inlet flow. It offers completely automatic, simple, reliable, and accurate operation.

Key Benefits

• Remote & Automated Flow Control: Designed to deliver a constant flow while enabling remote opening or closing via electrical signals from a timer or programmer.
• Fire Protection Capability: Can be activated to significantly increase flow in a downstream area during a fire event, serving a vital safety function.
• Scheduled Flow Delivery: Capable of delivering a constant flow at fixed hours during the day when integrated with a timer, ideal for scheduled operations.
• Accurate Flow Limitation: Accurately limits excessive flow to a preselected maximum rate, ensuring consistent performance regardless of pressure changes or varying inlet flow.
• Automatic Operation: Provides completely automatic, simple, reliable, and accurate performance.
• Quality Approved Materials: Manufactured with quality-approved materials, ensuring durability and long service life.

Applications

The CLA-VAL 43E/D-01 Flow Control Valve with Solenoid Shut-Off is suitable for a variety of critical flow control applications, particularly those requiring remote operation, scheduled delivery, or fire safety integration:

• Remote control of water flow in distribution systems.
• Automated irrigation or water delivery systems with timed operations.
• Fire protection systems requiring increased flow in emergency situations.
• Applications where accurate limitation of excessive flow is necessary.

Features & Construction

• Solenoid Control: Available as 311-D or 311-C.
• Flow Control: CDHS-18.
• Orifice Plate Assembly: X52-A (included) for controlling flow rate and preventing cavitation.
• Series: CLA-VAL SERIES 40.
• Activation: Via electrical signal from a timer or programmer (e.g., e-Smart/L1).

Customisation Options

• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: Use stem cleaning for harsh water.
• Maintenance & Monitoring:
  • Option to check on periodic maintenance.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to the valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect the valve with upgraded materials for enhanced corrosion resistance.
• Recommended Assembly: Can be combined with an H-Strainer AQUA 90-501 and "anti-shock" air release & vacuum break valve AQUA 70-516 for optimal regulation.

Technical Specifications

Specification	Value
Series	CLA-VAL SERIES 40
Function	Flow Control Valve with Solenoid Shut-Off
Solenoid Control	311-D or 311-C
Flow Control	CDHS-18
Orifice Plate Assembly	X52-A (Included)
Activation Method	Electrical signal from timer/programmer (e.g., e-Smart/L1)

Installation & Maintenance

• Installation: The Orifice Plate Assembly may be fixed directly to the main valve outlet flange, but better control is obtained if it is installed in stabilized flow conditions downstream of the valve.
• Maintenance: Periodic maintenance checks are recommended to ensure optimal performance. The valve's design with quality-approved materials contributes to its durability and long service life.
